PRO-DKH1X Driver with Spacer and Horn Kit 320 Watt 2” Titanium 8-Ohm Vc

DS18

Coming soon

Your price:
€ 110,00
Price per single item (VAT included)
Type
Tweeter
MAX Power
640 Watt
RMS Power
320 Watt
Frequency Response
630-20KHz Hertz
Sensitivity
111 dB
Impedance
8 Ohm

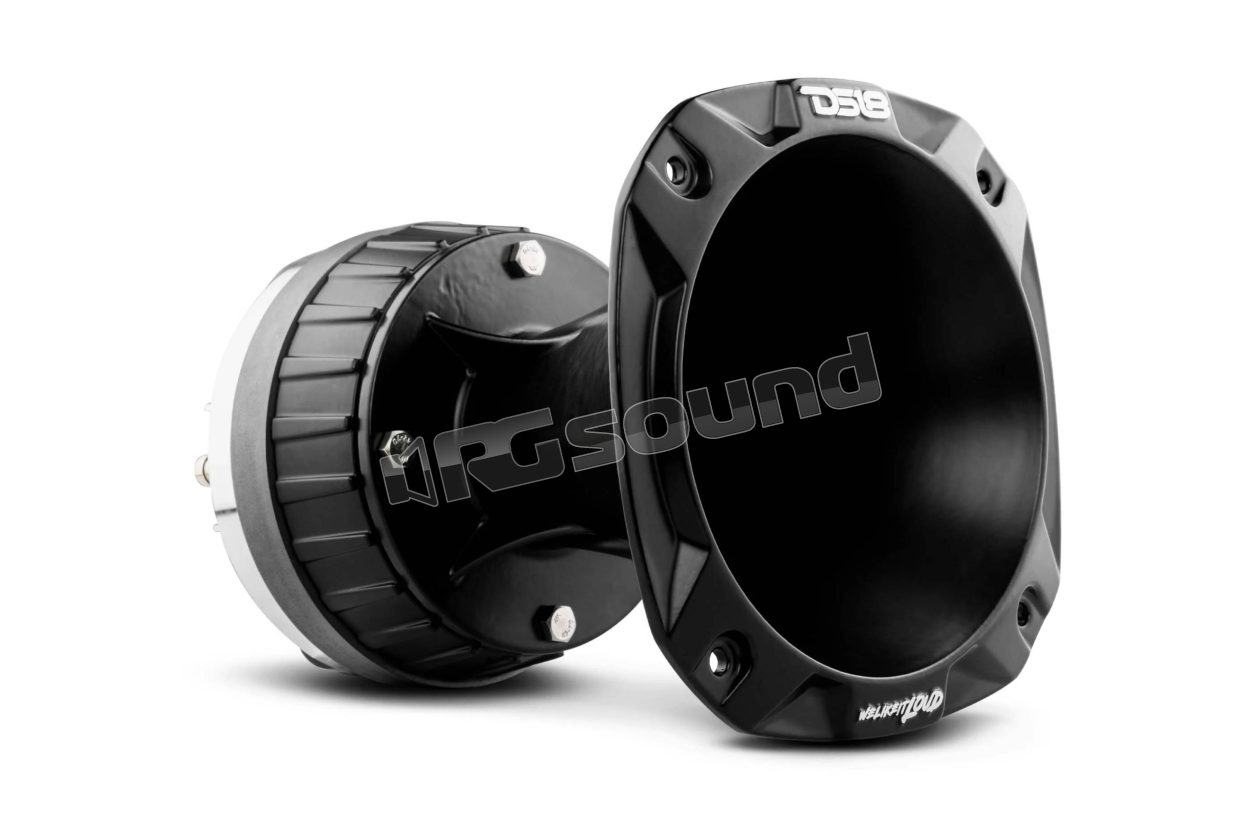

DS18 PRO-DKH1X Driver with Spacer and Horn Kit 320 Watt 2" Titanium 8-Ohm Vc

The DS18 DKH1X combines a 2" compression driver with bolted throat and a PRO-HA102/BK horn, to offer a rich, powerful and engaging sound experience. Built with a titanium coil and diaphragm, the PRO-DKH1X by DS18 is able to handle peak power up to 640 W, which makes it one of the most powerful compression drivers on the market. The PRO-DKH1X with a sensitivity of 115 dB and a frequency response of 630Hz-20KHz, guarantees an exceptional listening experience.

This full-size speaker combines the DS18 DKH1 with the included dB spacer to increase the overall sensitivity of the speaker. Additionally, the new short throat has been redesigned to require only 7.9 inches of depth to mount these speakers. The DS18 PRO-DKH1X is built to last. The 2.03" voice coil ensures efficient and reliable product operation, even at high volumes and for long periods of playback.

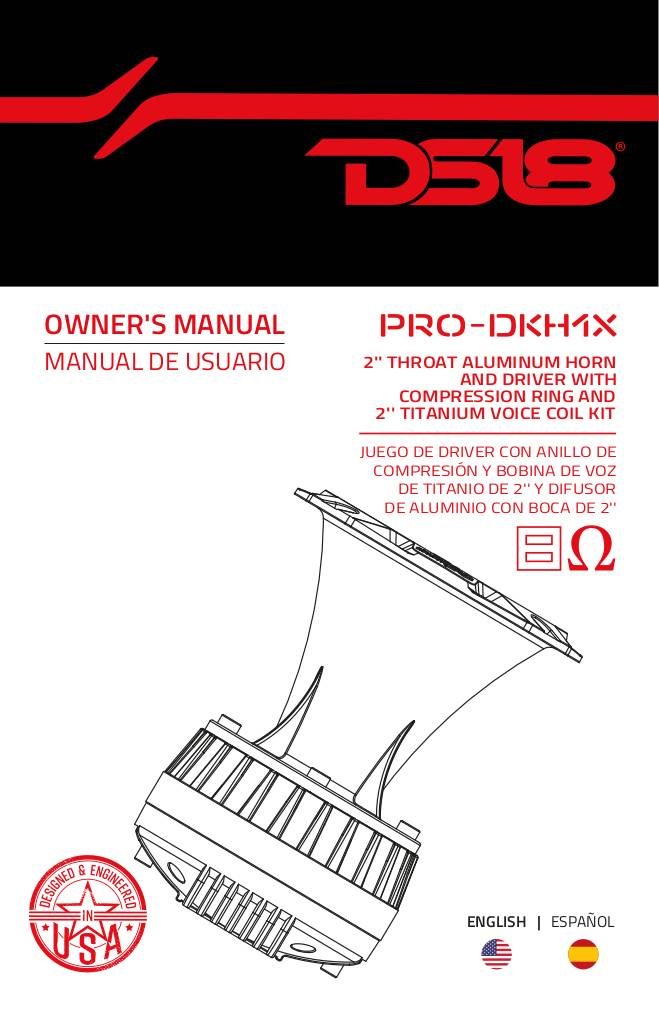

Scheda tecnica

n-20241029122637-pro-dkh1x-scheda-tecnica.pdf

DS18 PRO-DKH1X Technical Specifications

  • Nominal Impedance 8 OHM
  • AES Power 160 Watt
  • Program Power 320 Watt
  • Peak Power 640 Watt
  • Sensitivity (1w/1m) 111 dB
  • Frequency Response 630Hz-20KHz
  • Recommended High Pass Crossover 900Hz

PRO-D1X - Motor

  • Voice Coil Diameter 2.03" / 51.5 mm
  • Voice Coil Material Kapton
  • Winding Material CCAW
  • Diaphragm Material Titanium
  • Magnet Material Ferrite
  • Magnet Weight 35 oz
  • Aluminum Body Material

PRO-HA102/BK - Horn Specifications

  • Nominal Diameter 6.5" / 165 mm
  • Throat Diameter 2" / 50.8 mm
  • Sound Coverage 35° Rounded
  • Aluminum Body Material
  • Color/Finish Satin Black

Dimensions

  • Overall Diameter 6.37" / 162 mm
  • Total Depth 8.3" / 211 mm
  • Mounting Depth 7.9" / 201.5 mm
  • Mounting Hole Diameter 5.7" / 145 mm
  • Bolt Pattern / Type Ø 6.33" / 161 mm x 4 - 0.21" / 5.5 mm Hole
  • Product Weight 9 lbs
  • Product Dimensions 7 x 7 x 8.75
  • M/C Weight 36.5 lbs
  • M/C Dimensions 14.5 x 14.5 x 9.5
  • M/C QTY 4
