PRO-DKH1S Short Horn Driver Kit 320 Watt 2” Titanium

DS18

Coming soon

Your price:
€ 90,00
Price per single item (VAT included)
Type
Tweeter
MAX Power
640 Watt
RMS Power
320 Watt
Frequency Response
630-20KHz Hertz
Sensitivity
110 dB

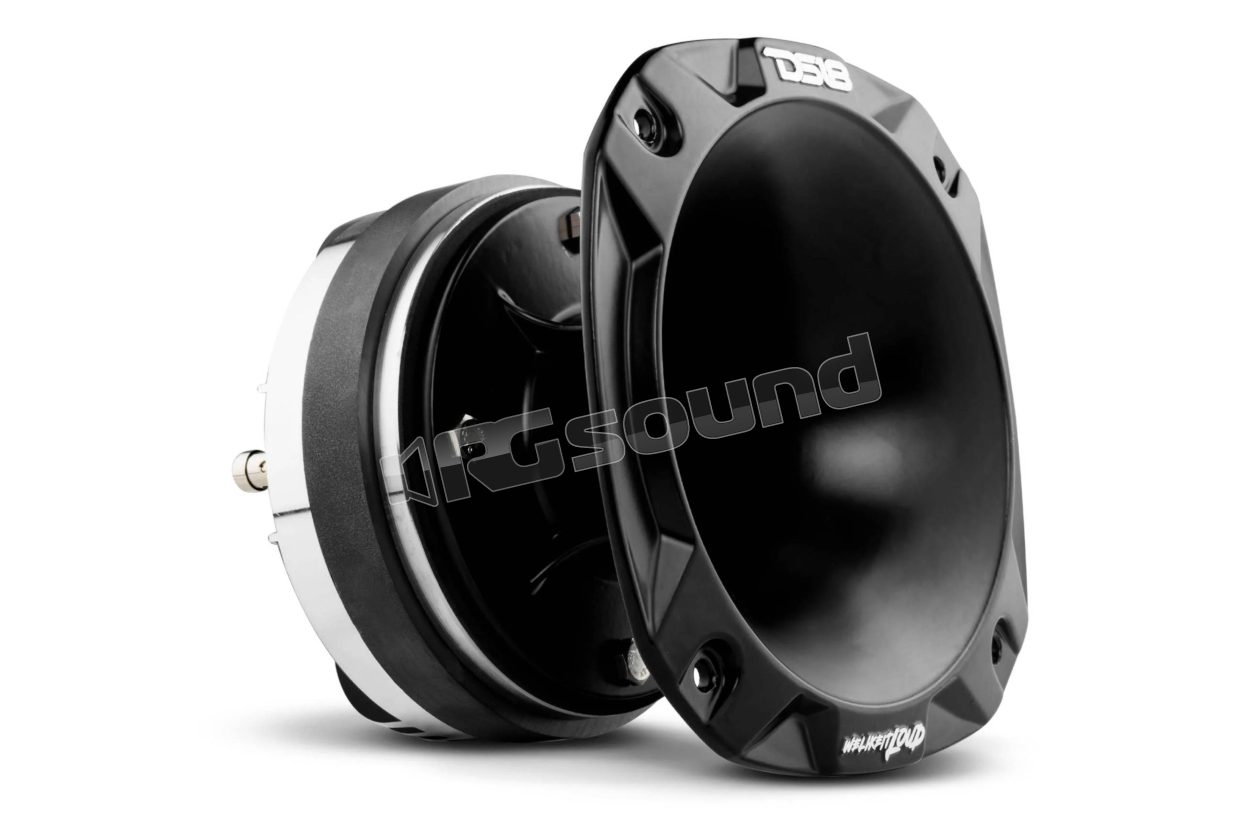

DS18 PRO-DKH1S Driver Kit short horn 320 Watt 2" Titanium 8-Ohm Vc

We present to you the PRO-DKH1S by DS18, the ultimate solution for car audio enthusiasts seeking unparalleled sound quality. Crafted with precision, this product combines a 2" bolted throat compression driver with a PRO-HA102/BK horn, to deliver a rich, powerful and engaging sound experience. Built with a VC and titanium diaphragm, the DS18 PRO-DKH1S is capable of handling peak powers up to 640 W, making it one of the most powerful compression drivers on the market.

The PRO-DKH1 is not just power, but also crystal clear and distortion-free sound. With a sensitivity of 111 dB and a frequency response of 630Hz-20KHz, the PRO-DKH1S guarantees an exceptional and extraordinarily loud listening experience. The DS18 PRO-DKH1S includes the DS18 DKH1 neodymium driver and the newly redesigned short throat, which requires a mounting depth of only 4.9" to mount these drivers. The new throat is made of aluminum with brilliantly brushed DS18 logos and designed for maximum directional efficiency.

The DS18 PRO-DKH1S is built to last. The product has been meticulously tested and optimized to deliver the best possible performance. The 2.03" voice coil ensures efficient and reliable product operation, even at high volumes and for extended periods of playback.

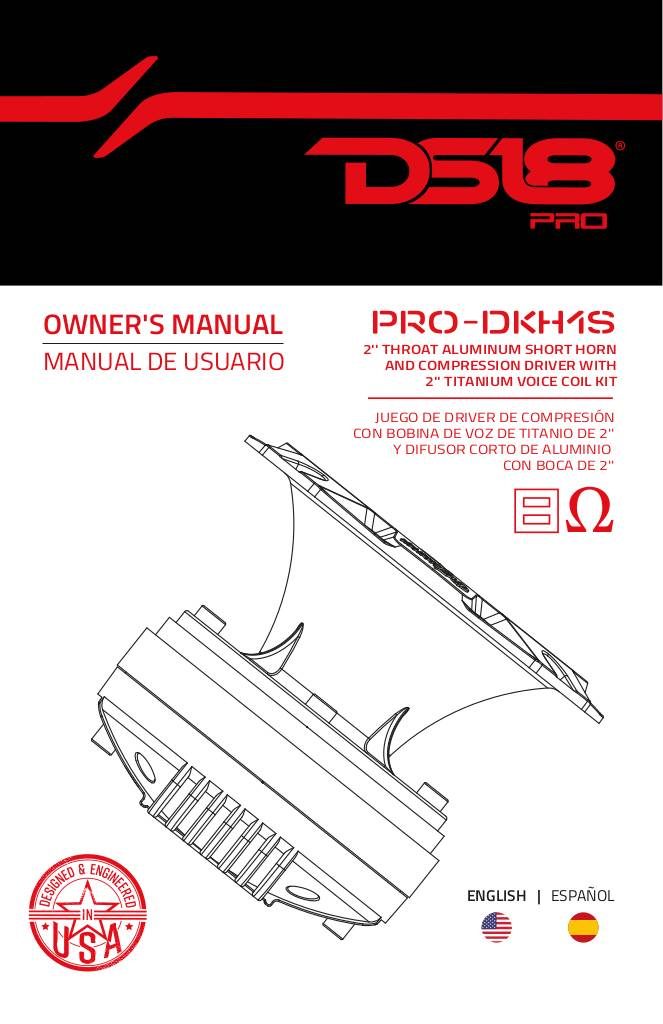

Scheda tecnica

n-20241029124001-pro-dkh1s-scheda-tecnica.pdf

DS18 PRO-DKH1S Technical Specifications

  • Nominal impedance 8 OHM
  • AES power 160 Watt
  • Program power 320 Watt
  • Peak power 640 Watt
  • Sensitivity (1w/1m) 110 dB
  • Frequency response 630Hz-20KHz
  • Recommended high-pass crossover 900Hz

Motor

  • Voice coil diameter 2.03" / 51.5 mm
  • Voice coil material Kapton
  • Winding material CCAW
  • Diaphragm material Titanium
  • Magnet material Ferrite
  • Magnet weight 35 oz
  • Body material aluminum

Horn specifications

  • Nominal diameter 6.5" / 165 mm
  • Throat diameter 2" / 50.8 mm
  • Sound coverage 57° rounded
  • Body material aluminum
  • Color and finish satin black

Measurements

  • Overall diameter 6.37" / 162 mm
  • Overall depth 5.3" / 134.7 mm
  • Mounting depth 4.9" / 125.8 mm
  • Mounting hole diameter 5.7" / 145 mm
  • Bolt pattern / Type Ø 6.33" / 161mm x 4 - 0.21" / 5.5mm Hole
  • Product weight 7.5 lbs
  • Product dimensions 7 x 7 x 6

M/C Dimensions

  • M/C weight 31.5 lbs
  • M/C dimensions 14.5 x 14.5 x 6.25
