PRA 16 165 mm (6.5") 2-way component system

ETON
Your price:
€ 199,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
2-way separate kit
Woofer Size
165 mm
Tweeter Size
25 millimetri
MAX Power
100 Watt
RMS Power
70 Watt
Sensitivity
92 dB
Impedance
3 Ohm
Woofer Material
Fibra di vetro
Tweeter Material
Alluminio

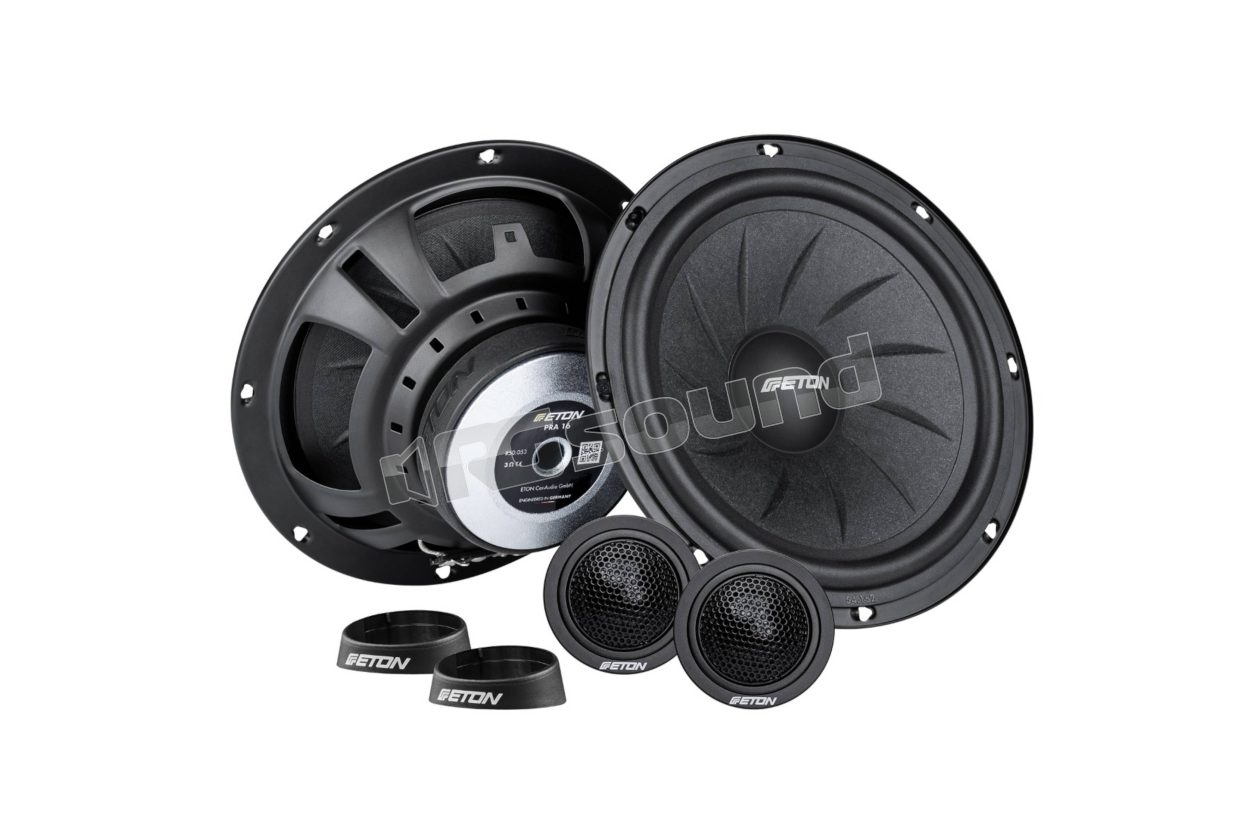

ETON PRA 16 S 2-way component system 165 mm (6.5")

The ETON PRA 16 audio system integrates the technology of the newly designed PRA cone. The 165 mm bass/midrange driver is made with a cone of paper and fiberglass reinforced, produced through a special manufacturing process that ensures quality and durability. The powerful ferrite magnet with large core hole optimizes cooling, while the rigid metal basket painted with powder coating features a double-strut design with supplementary ventilation openings to improve overall performance.

The 3 ohm voice coil guarantees excellent performance even without the aid of an additional amplifier, allowing direct connection to the factory radio or head unit. The 25 mm aluminum dome tweeter with fabric surround offers refined and precise sound details, supported by a high quality 12 dB cable crossover. This tweeter is surface mounted and integrated into a swivel and tilting housing for optimal sound distribution.

The ETON PRA 16 system offers a nominal power of 70 W RMS and a musical power of 100 W, with a characteristic sound pressure of 92.3 dB (2.83V/1m). The external diameter is 165 mm, with a cut diameter of 142 mm and a reduced installation depth of 66 mm, making it easy to install in a variety of vehicles.

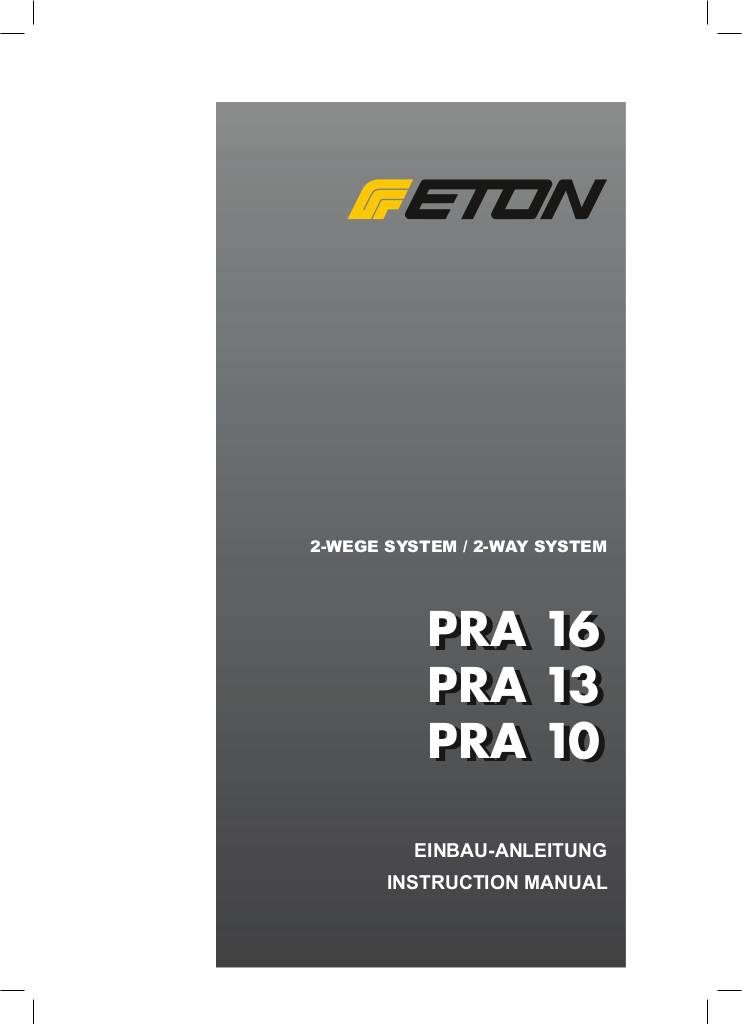

Manuale Utente

n-20240705111645-pra-16-13-10.pdf

ETON PRA 16 Technical Specifications

  • Tweeter 25 mm (1")
  • Bass / midrange 165 mm (6.5")
  • Nominal power (RMS) 70 W
  • Musical power 100 W
  • Sound pressure level 92.3 dB
  • External diameter 165 mm
  • Installation depth 66 mm
  • Nominal impedance Zn 3 Ω
  • Total moving mass (including air mass) MMD 14.3 g
  • DC resistance Re 2.6 Ω
  • Effective piston area SD 137 cm2
  • Voice coil inductance Le 0.19 mH
  • TSP resonance frequency fr 56 Hz
  • Force factor BLxl 4.0 Tm
  • Suspension compliance CMS 0.56 mm/N
  • Mechanics QQMS 3.76
  • Mechanical Xmax +/-9.0 mm
  • Electrical Q QES 0.84
  • Equivalent air volume of suspension VAS 15.0 dm3
  • Total QTS 0.69
  • Characteristic SPL 1W / 1 m 88 dB
  • Mechanical resistance RMS 1.34 kg/s
  • Nominal power 70/100 W
  • Magnet material Ferrite
  • Voice coil diameter 25 mm
