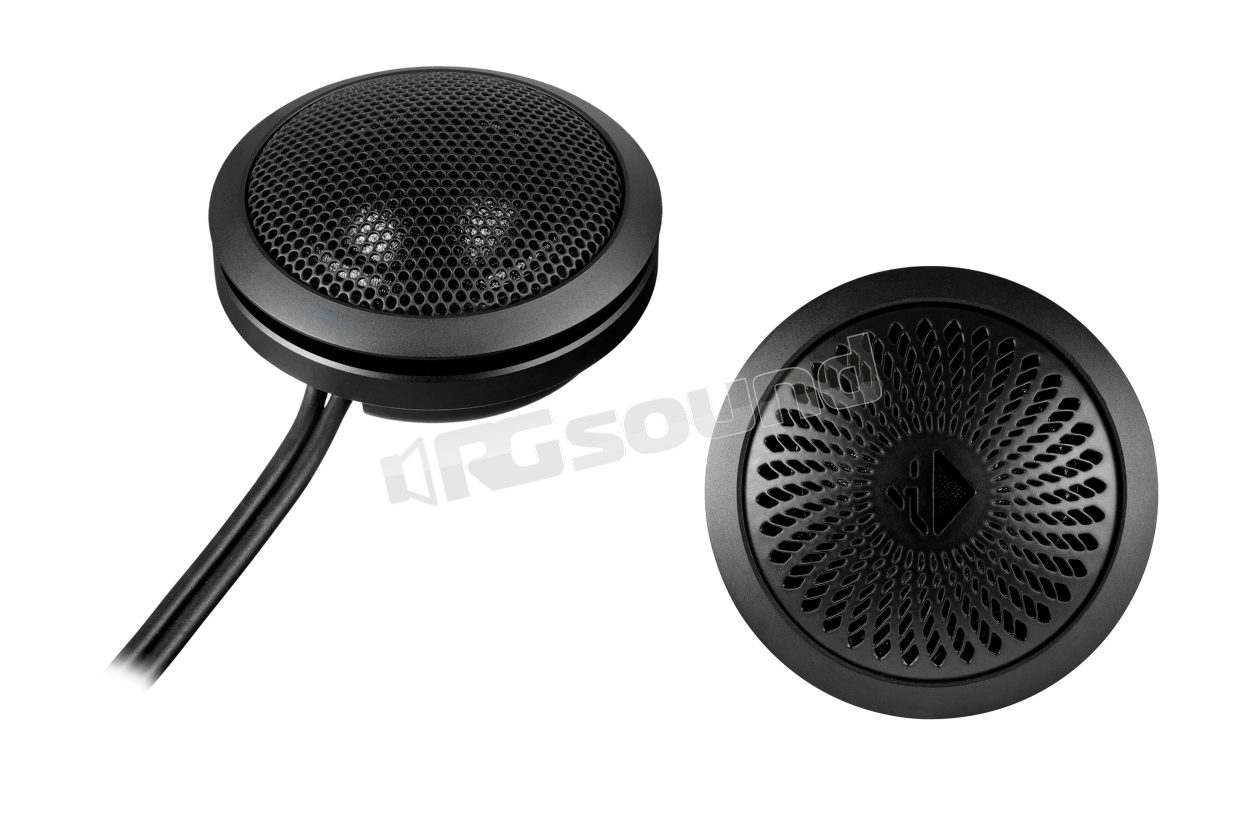

PR T25-S Tweeter with 2.5 cm coated silk dome

Helix
Your price:
€ 149,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Tweeter
Dome Size
25 mm
Frequency Response
2500 - 25000 Hertz
Sensitivity
92 dB
Impedance
4 Ohm
Outer Diameter
37,7 mm
Installation Depth
10,6 mm
Tweeter Material
Cupola in seta

Helix PR T25-S Tweeter with 2.5 cm coated silk dome

HELIX PURE goes beyond simple music. It is an audiovisual journey, dedicated to sound quality and uncompromising uniqueness, designed for demanding and individualistic audiophiles who refuse to compromise in their daily lives. The PURE R Series represents the pinnacle of our PURE speakers, perfectly combining their essential characteristics: uncompromising sound quality, high-quality materials and unparalleled aesthetics. The premium HELIX PR T25-S tweeter is an example of absolute excellence within the PURE speaker line. It stands out for minimal manufacturing tolerances and the exclusive use of high-level materials, such as the coated silk dome.

This component allows for faithful reproduction of even the most subtle details, guaranteeing smooth and natural sound reproduction for an unparalleled high-frequency experience. The high-efficiency neodymium magnet maintains optimal and elevated linearity of the magnetic flux at all times. Furthermore, its intelligent and compact design offers several mounting options for universal installation. The anodized aluminum flush-mount housing with the solid mounting ring allows for concealed installation, while the included grilles, available in two exclusive designs, offer both protection and aesthetic options. High-quality aluminum flush-mount housings (PR ATP25) are also available to perfect your sound configuration.

Helix PR T25-S Technical specifications

  • Premium 1" / 25 mm tweeter with coated silk dome for precise high-frequency response with the finest details and accurate, natural sound reproduction
  • Compact design with several mounting options for universal installation
  • Anodized aluminum flush-mount housing with solid mounting ring for discreet installation
  • Cover grille included in two exclusive interchangeable designs
  • Extremely tight production tolerances and exclusive use of premium materials
  • High-efficiency neodymium magnet for optimal linear magnetic flux
  • Available as an option the high-quality aluminum tweeter capsule (PR ATP25)
  • Impedance Z 4 Ω
  • DC resistance Re 3.4 Ω
  • Frequency response 2,500 Hz - 25,000 Hz
  • Resonance frequency Fs 1,400 Hz
  • Sensitivity 92 dB @ 2.83V / 1m
  • SPL 89 dB at 1W / 1m
  • Voice coil diameter ø 25 mm
  • Cone area Sd 4.9 cm²
  • Moving mass Mms 0.3 g
  • Cone material Coated silk dome
  • External diameter ø 37.7 mm / 1.48"
  • Installation diameter ø 37.7 mm / 1.48"
  • Installation depth 10.6 mm / 0.42"
€ 149,00 Price incl. VAT
