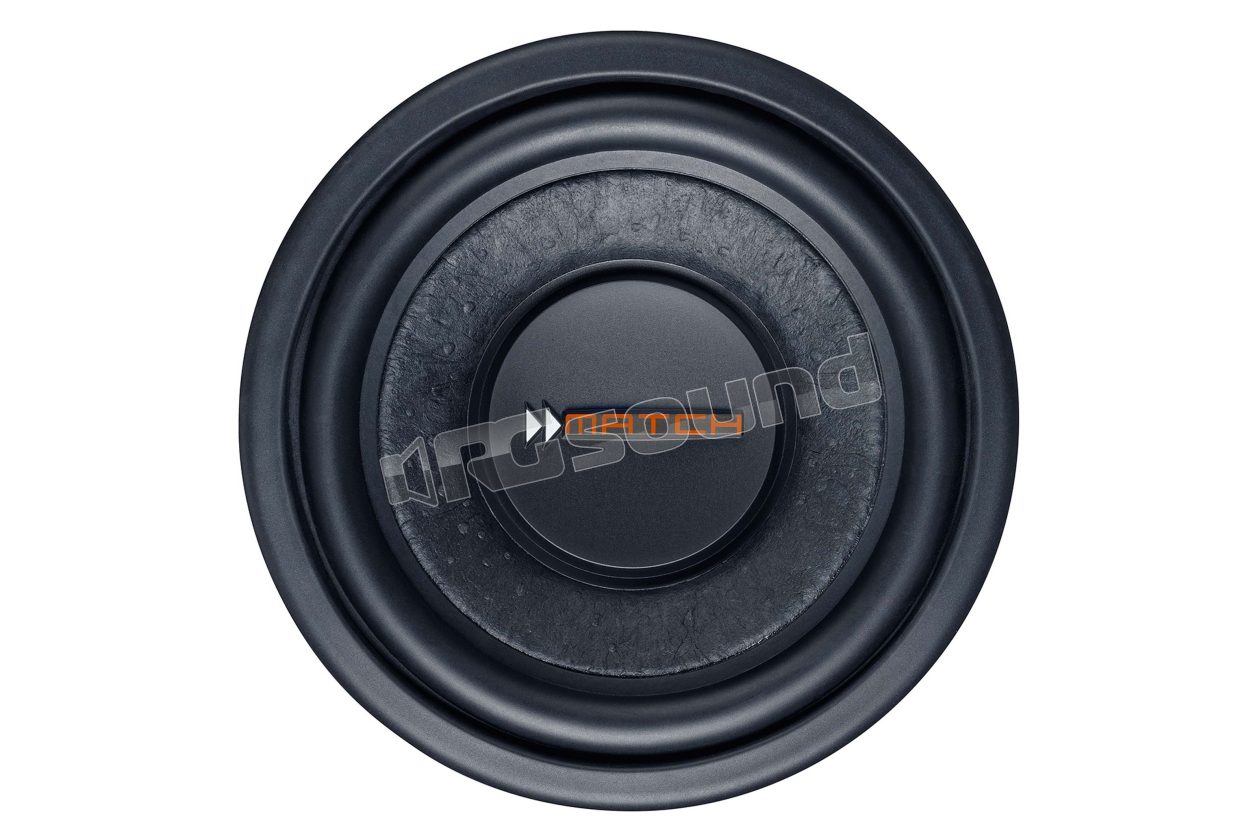

PP 10W-Q 25 cm subwoofer for bass reflex enclosure

Match
Your price:
€ 159,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
250 mm
MAX Power
600 Watt
RMS Power
300 Watt
Sensitivity
87 dB
Impedance
4x3 Ohm
Installation Depth
128,5 mm
Woofer Material
Cellulosa trattata

Match PP 10W-Q 250mm/10" subwoofer with 300 W power (600W max.), four 3 Ohm voice coils.

• 10"/250 mm Plug & Play subwoofer with quad-voice coil for compact vented enclosures.

• Hand-sculpted paper cone extremely rigid for maximum sound pressure.

• Dual vented voice coil for minimal compression effects.

• Powerful magnet for compact vented enclosures

• Optimized for perfect interaction with MATCH Plug & Play amplifiers.

• Connection terminal for MATCH subwoofer cable (PP-SC) included in the package.

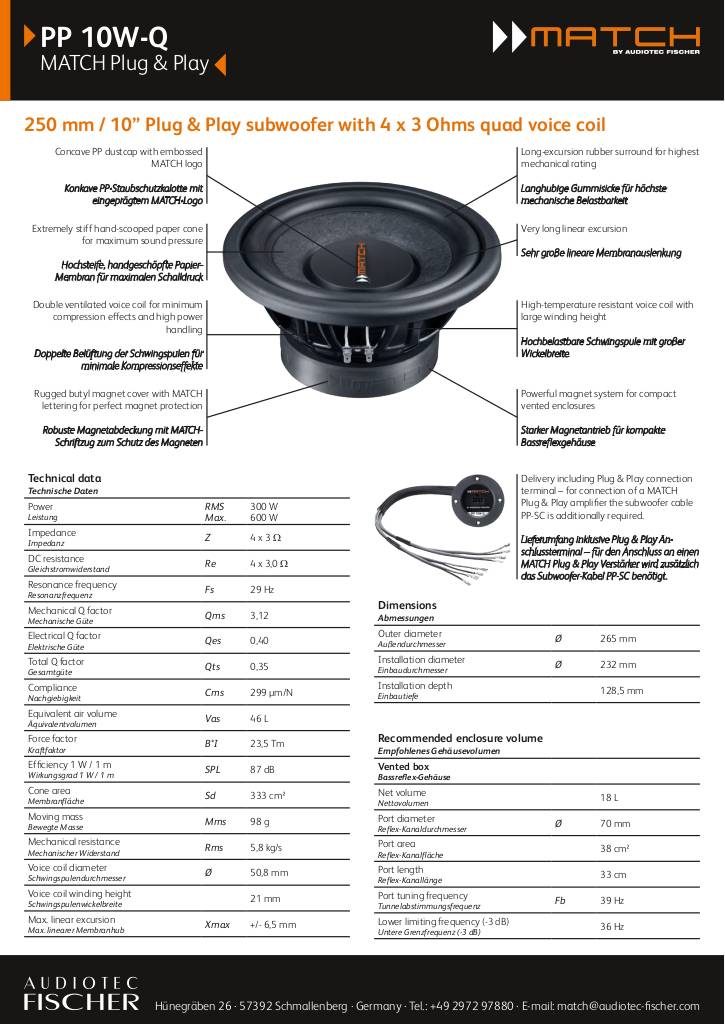

Scheda tecnica

n-20210310125026-datenblatt-match-pp-10w-q-web.pdf

Match PP 10W-Q technical specifications

RMS / max. power 300/600 Watt

Impedance 4 x 3 Ω

DC resistance 4 x 3.0 Ω

Resonance frequency 29 Hz

Mechanical Q factor 3.12

Electrical Q factor 0.40

Total Q factor 0.35

Compliance 299 μm / N

Equivalent air volume 46 L

Force factor 23.5 Tm

Efficiency 1 W / 1 m 87 dB

Cone area 333 cm²

Moving mass 98 g

Hand-worked paper cone

Mechanical resistance 5.8 kg / s

Voice coil diameter 50.8 mm

Voice coil winding height 21 mm

Max. linear excursion +/- 6.5 mm

External diameter 265 mm / 10.43 "

Installation diameter 232 mm / 9.13 "

Installation depth 128.5 mm / 5.06 "

Net volume 18 L

Port diameter 70 mm / 2.75 "

Port area 28 cm²

Port length 33 cm / 13 "

Port tuning frequency 39 Hz

Lower limit frequency (-3 dB) 36 Hz
