POW 130.2C

ETON

Discontinued

Your price:
€ 146,60
Price per single item (VAT included)
Type
2-way separate kit
Frequency Response
60 - 22.000 Hertz
Woofer Size
130 mm
Tweeter Size
25 millimetri
MAX Power
100 Watt
RMS Power
60 Watt
Sensitivity
91 dB
Impedance
3 Ohm
Woofer Material
Fibra di vetro
Tweeter Material
Cupola in seta

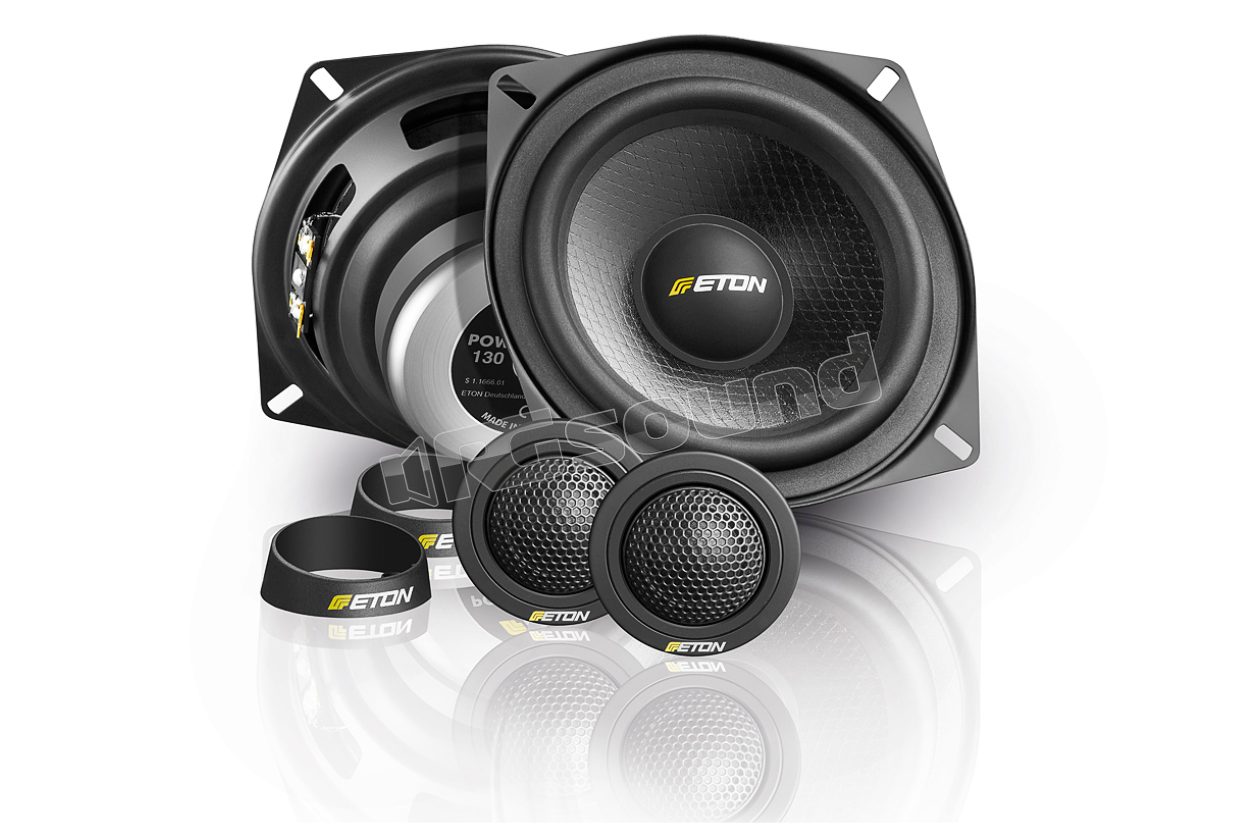

ETON POW 130.2.C 2-way system composed of a pair of 130mm woofers, 25mm voice coil, fiberglass cone and treated cellulose. Pair of tweeters with 25mm treated silk dome and line crossover.

POW 130.2.C Features

100% built in Germany
2-way hi-fi system of very high sensitivity specifically designed to be driven also by factory car radios
Double-layer cone Fiberglass/Treated Cellulose
Sensitivity 91 dB
Tweeter with 25mm dome in hand-treated Silk
Line crossover

Technical Data POW 130.2.CPOW 130
Nominal impedance3 Ω
DC resistance2.4 Ω
Characteristic sound pressure level 1W/1m91dB SPL
Rated power60W
Resonance frequency 1 Watt70 Hz
Effective piston area80 cm2
Suspension compliance0.48 mm/N
Mechanical Q3.98
Electrical Q0.73
Total Q0.62
Equivalent volume4.3 dm3
Mech. resistance1.08 kg/s
Total moving mass8.9 g
Voice coil diameter25 mm
Voice coil formerAluminium
Voice coil lenght11 mm
Voice coil layers2
Voice coil inductance0.25 mH
Flux density0.96 Tesla
Force factor3.75 Tm
Height of gap6 mm
Diameter of magnet72 mm
Height of magnet15 mm
Mass of speaker0.71 kg

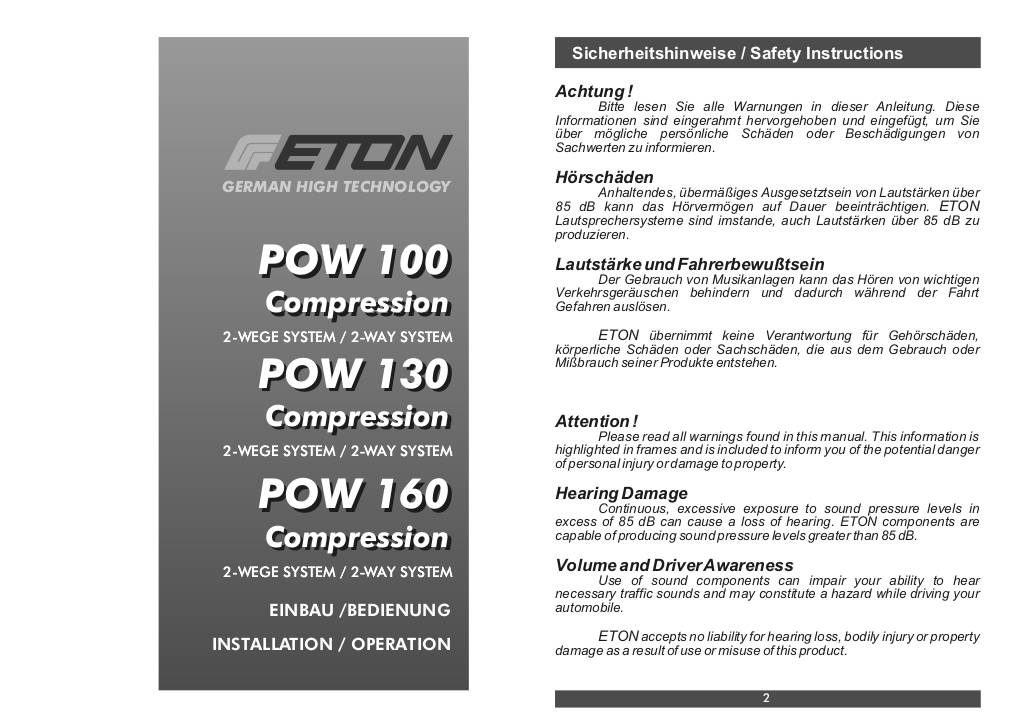

Manuale utente

20150611122315-bedienungsanleitung-eton-pow100-160-05.pdf

Pair of 130mm woofers Pair of 25mm tweeters Line crossover
