POW 100.2C

ETON

Discontinued

Your price:
€ 189,00
Price per single item (VAT included)
Type
2-way separate kit
Frequency Response
80 - 22.000 Hertz
Woofer Size
100 mm
Tweeter Size
25 millimetri
MAX Power
90 Watt
RMS Power
60 Watt
Sensitivity
82 dB
Impedance
3 Ohm
Woofer Material
Fibra di vetro
Tweeter Material
Cupola in seta

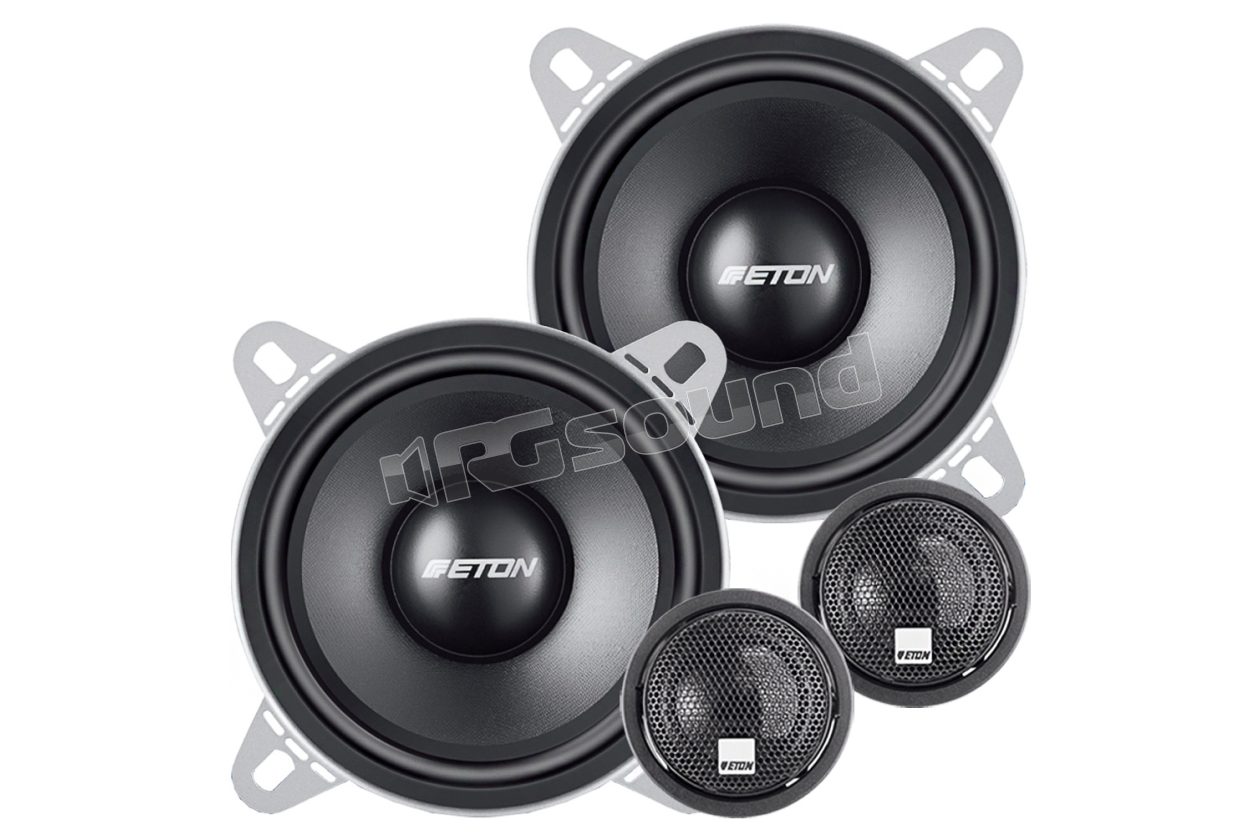

ETON POW 100.2C 2-way system composed of: pair of 100mm woofers with 25mm voice coil, fiberglass and treated cellulose cone. Pair of tweeters with 25mm treated silk dome and line crossover.

POW 100.2C Features

100% built in Germany
2-way hi-fi system with very high sensitivity specifically designed to be powered also by factory car radios
Double-layer cone Fiberglass/Treated Cellulose
RMS Power 60 W
Sensitivity 92 dB
Tweeter with 25 mm dome in hand-treated Silk
Line crossover

POW 100.2.C Specifications

Nominal impedance

3 Ω

DC resistance

2.5 Ω

Characteristic sound pressure level 1W/1m

92dB SPL

Rated power

60W

Resonance frequency 1 Watt

95 Hz

Effective piston area

55 cm2

Suspension compliance

0.44 mm/N

Mechanical Q

2.87

Electrical Q

0.65

Total Q

0.53

Equivalent volume

4.3 dm3

Mech. resistance

1.18 kg/s

Total moving mass

5.1 g

Voice coil diameter

25 mm

Voice coil former

Aluminium

Voice coil length

6.6 mm

Voice coil layers

2

Voice coil inductance

0.15 mH

Flux density

1.15 Tesla

Force factor

3.6 Tm

Height of gap

4 mm

Diameter of magnet

72 mm

Height of magnet

15 mm

Mass of speaker

0.55 kg

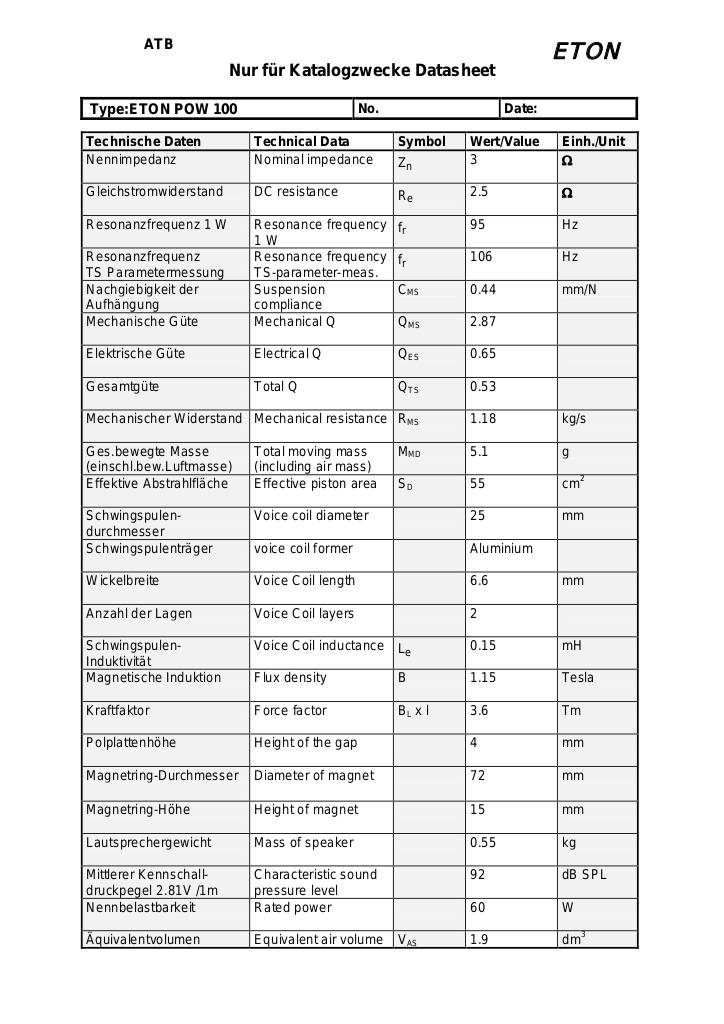

Scheda tecnica

20150611115350-pow-100-01.pdf

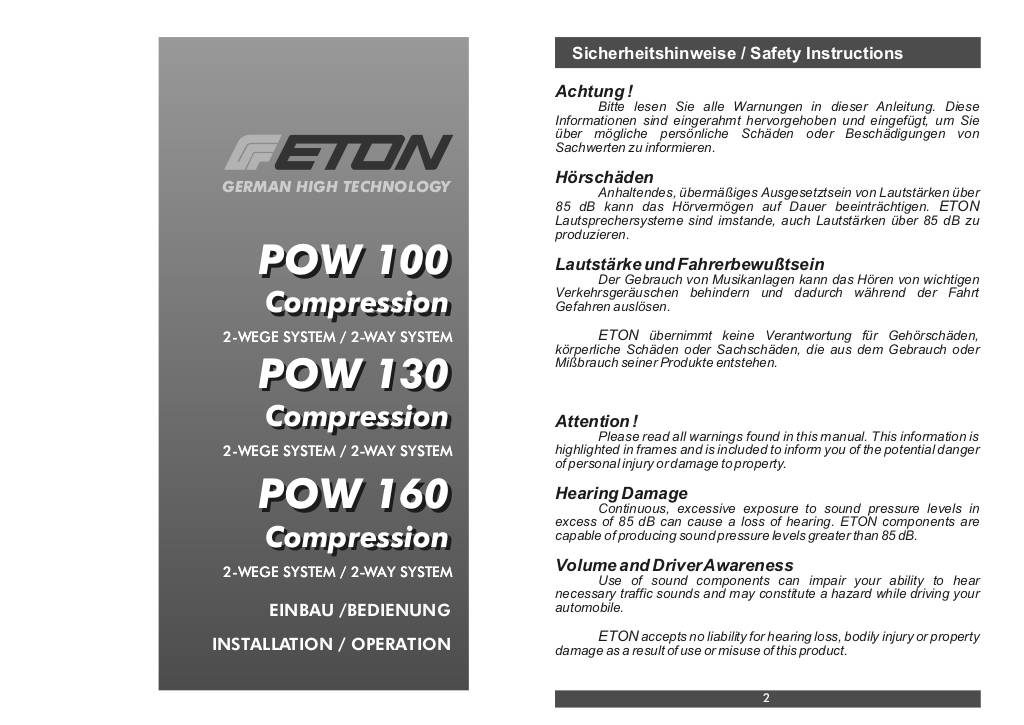

Manuale utente

20150611115350-bedienungsanleitung-eton-pow100-160-03.pdf

Pair of 100 mm woofers Pair of 25 mm tweeters Dedicated line crossovers
Discontinued
