PNW-69CS2 6x9" coaxial speaker kit, 100 W RMS, 3 ohm

Audiocontrol
Your price:
€ 379,10
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

Audiocontrol PNW-69CS2 6x9" Coaxial Speaker Kit, 100 W RMS, 3 ohm

PNW-69CS2 Features

  • Steel frame with reinforced edges for greater structural resistance
  • Black anodized voice coil support for superior heat dissipation
  • Double wound linear surround for precise cone movement
  • High efficiency motor designed with complex FEA analysis
  • Rigid cone with polymer coating for optimized sound reproduction
  • Hybrid silk dome tweeter with rear damping for extended frequency response
  • High quality mounting accessories included

Scheda tecnica

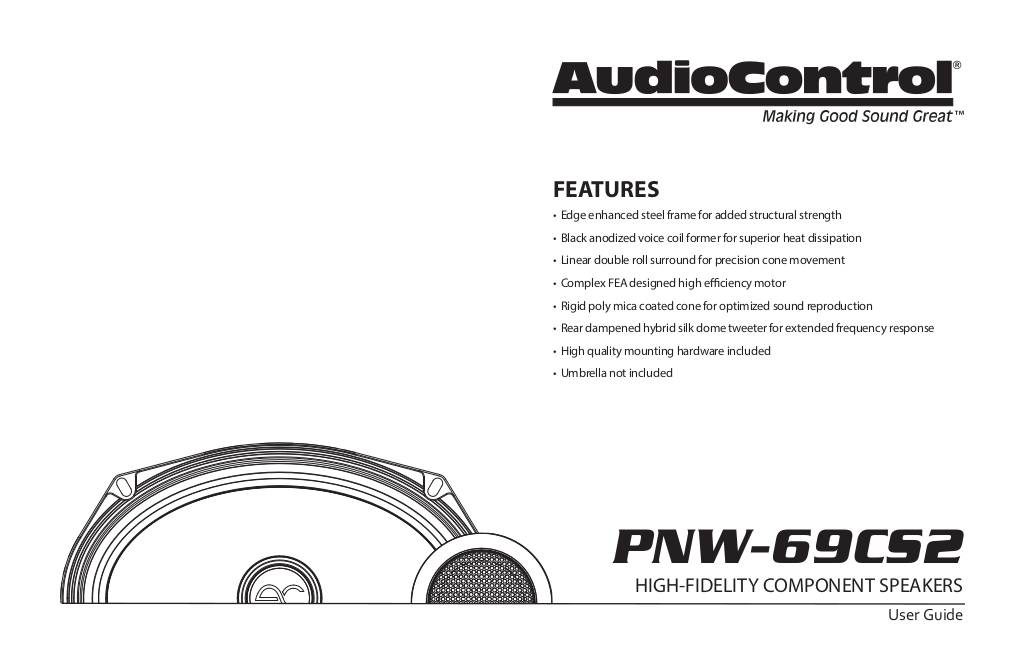

n-20260729113931-pnw-69cs2-ug-913-188-0-rev-b.pdf

Audiocontrol PNW-69CS2 Technical Specifications

  • Crossover type: Second order Linkwitz-Riley
  • Power: 100 W RMS / 125 W max
  • DC resistance (Re): 2.6 ohm
  • Filter type: HP / LP
  • Frequency response: 50-20 kHz
  • Crossover frequency: 3.5 kHz HP / LP
  • Slope (octave): -12 dB
  • Tweeter voice coil diameter: 25 mm
  • Midrange voice coil diameter: 35 mm

Dimensions

  • Overall dimensions: 167 x 235 mm
  • Overall diameter (without metal bracket): 183 x 265 mm
  • Mounting hole diameter: 146 x 212 mm
  • Mounting depth: 75 mm
  • Mounting height (without grille): 6.3 mm
  • Mounting height (with grille): 25 mm
  • Motor diameter (with cover): 117 mm

Tweeter Dimensions

  • Overall diameter (G): 54 mm
  • Hole diameter (H): 47 mm
  • Mounting depth: 16 mm
