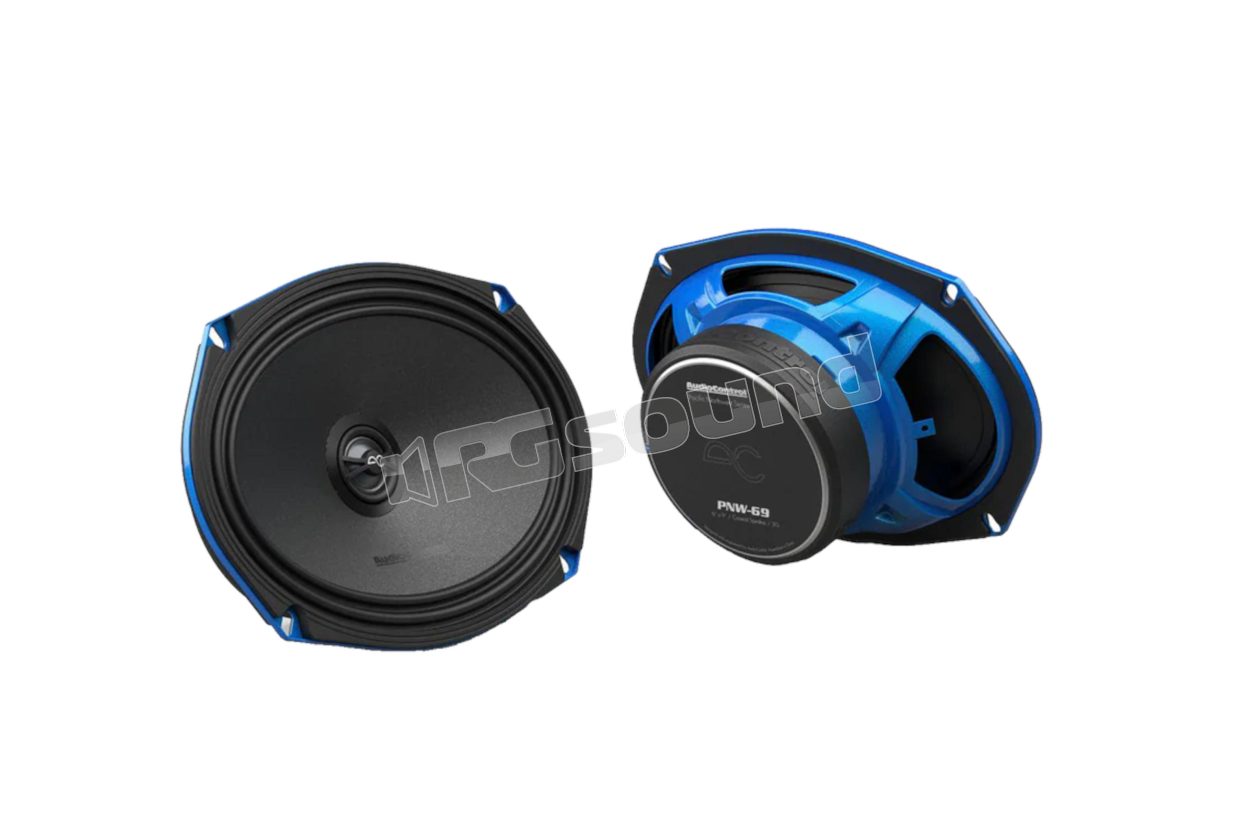

PNW-69 PNW series 6x9" 2-way coaxial speakers

Audiocontrol
Your price:
€ 331,60
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

Audiocontrol PNW-69 6x9" 2-Way Coaxial Speakers PNW Series

The PNW line is characterized by a steel frame reinforced at the edges for maximum structural resistance, a black anodized voice coil support for superior heat dissipation, and a dual-wound linear suspension for precise cone movement. Additionally, the rigid polymer-coated cone optimizes sound reproduction.

PNW-69 Features

  • Steel frame with reinforced edges for greater structural resistance
  • Black anodized voice coil carrier for superior thermal dissipation
  • Dual-wound linear surround for precise cone movement
  • High-efficiency motor designed with complex FEA analysis
  • Rigid polymer-coated cone for optimized sound reproduction
  • Hybrid silk dome tweeter with rear damping for extended frequency response
  • Concentric point-source design for seamless transition from midrange to highs
  • Sound radiator and radiating collar for improved off-axis frequency response
  • High-quality mounting accessories included

Audiocontrol PNW-69 Technical Specifications

  • Power 75 W RMS / 100 W max
  • Crossover type: Butterworth
  • DC resistance (Re): 2.6 ohm
  • Filter type: HP
  • Frequency response: 50-20 kHz
  • Crossover frequency: 5250 Hz
  • Slope (octave): -6 dB
  • Tweeter voice coil diameter: 20 mm
  • Midrange voice coil diameter: 35 mm

Dimensions

  • Overall dimensions: 167 x 235 mm
  • Overall diameter (without metal bracket): 183 x 265 mm
  • Mounting hole diameter: 146 x 212 mm
  • Mounting depth: 75 mm
  • Mounting height (without grille): 6.3 mm
  • Mounting height (with grille): 25 mm
  • Motor diameter (with cover): 117 mm
€ 331,60 Price incl. VAT
