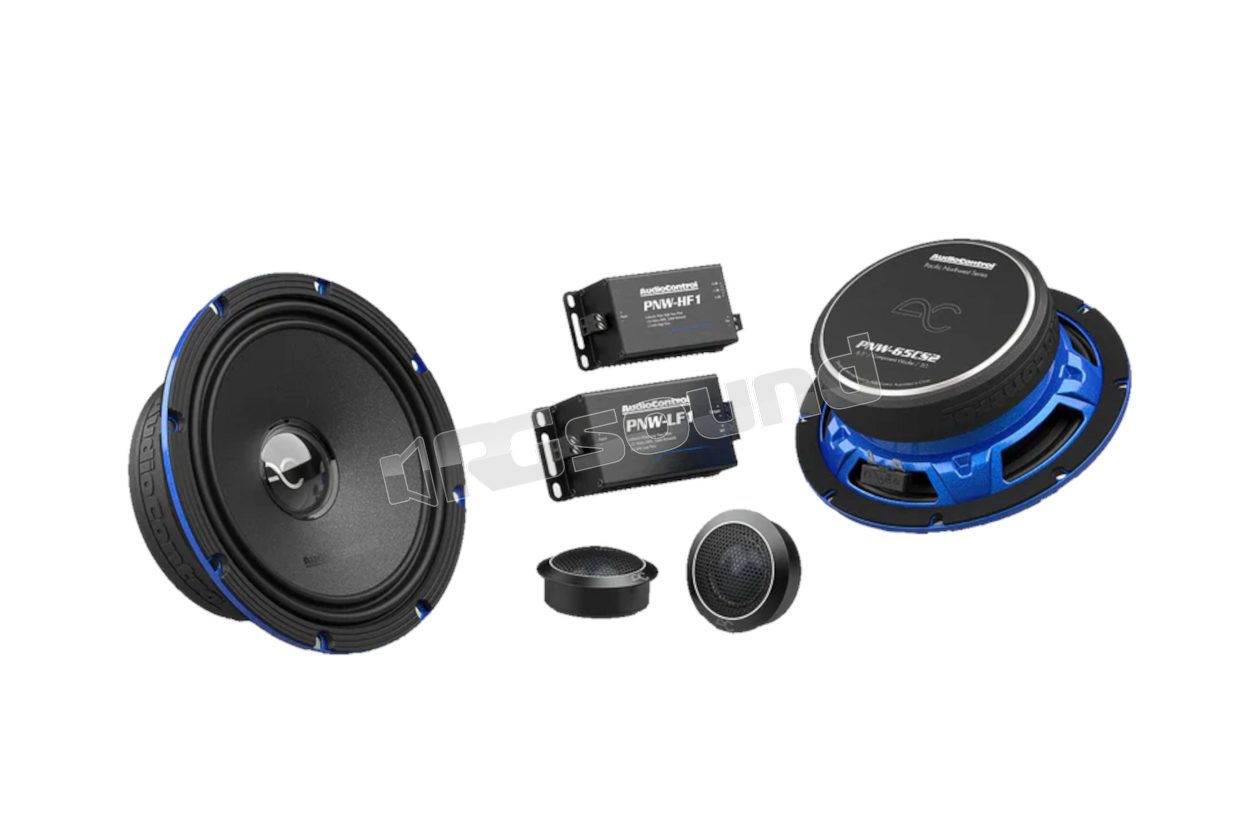

PNW-65CS2 6.5" 2-way component speaker kit, 100 W RMS, 3 ohm

Audiocontrol
Your price:
€ 341,10
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

Audiocontrol PNW-65CS2 2-way 6.5" speaker kit, 100 W RMS, 3 ohm

The PNW line is characterized by a steel frame with reinforced edges for maximum structural resistance, a black anodized voice coil support for superior heat dissipation and a double wound linear suspension for precise cone movement. Additionally, the rigid cone covered in polymer optimizes sound reproduction.



PNW-65CS2 Features

  • Steel frame with reinforced edges for greater structural resistance
  • Black anodized speaker for superior heat dissipation
  • Double wound linear edge for precise cone movement
  • High efficiency motor designed with FEA analysis
  • Rigid cone covered in polymer for optimized sound reproduction
  • Hybrid silk dome tweeter with rear damping for extended frequency response
  • High quality mounting accessories included

Audiocontrol PNW-65CS2 Technical Specifications

  • Second order Linkwitz-Riley crossover
  • Power 100 W RMS / 125 W max
  • DC resistance (Re) 2.3 ohm
  • Filter type HP / LP
  • Frequency response 60-20 kHz
  • Crossover frequency 3.5 kHz HP / LP
  • Slope (octave): -12 dB
  • Tweeter voice coil diameter: 25 mm
  • Midrange voice coil diameter: 35 mm

Dimensions

  • Overall diameter (without grille): 166 mm
  • Mounting hole diameter: 142 mm
  • Mounting depth: 60 mm
  • Mounting height (without grille): 5.2 mm
  • Mounting height (with grille): 22 mm
  • Motor diameter (with cover): 117 mm
  • Overall grille diameter: 179 mm

Tweeter Dimensions

  • Overall diameter: 54 mm
  • Mounting hole diameter: 47 mm
  • Mounting depth: 16 mm
