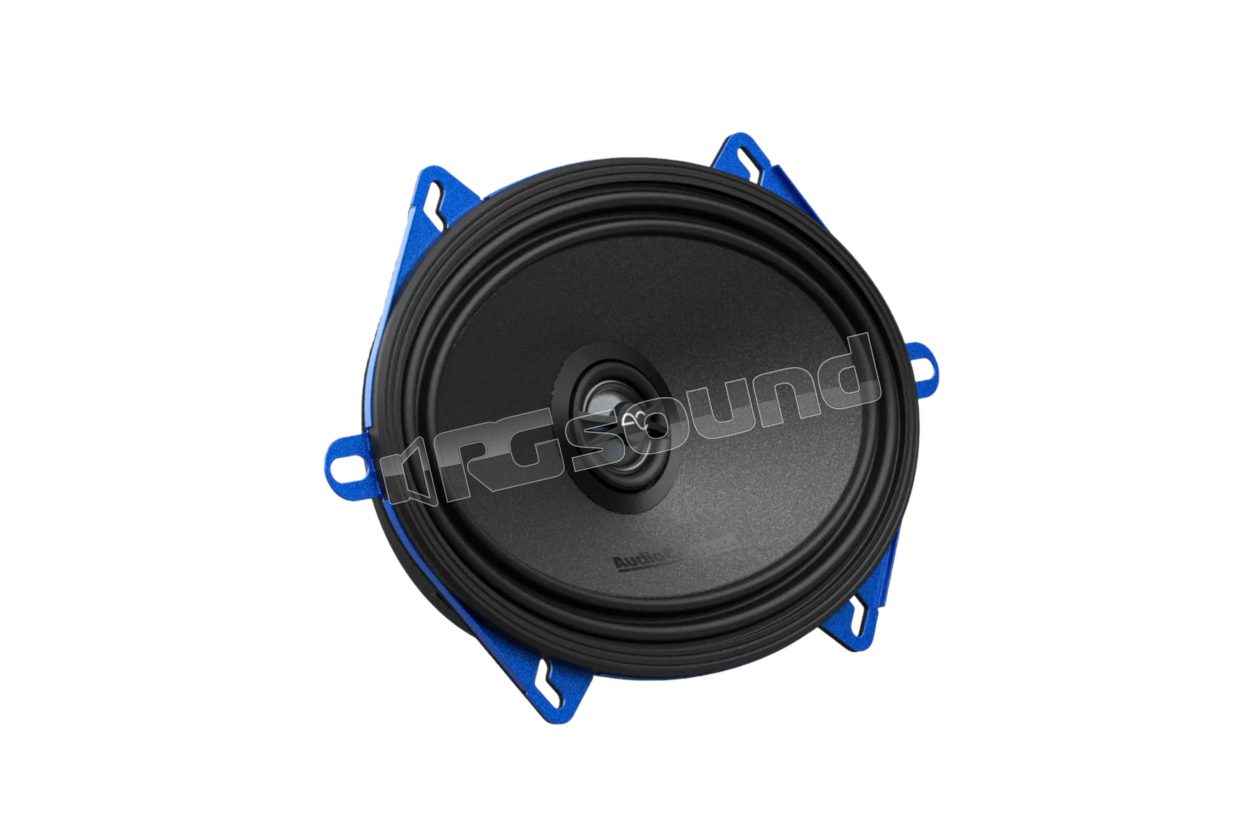

PNW-57 5x7" coaxial speakers, 75 W RMS, 3 ohm

Audiocontrol
Your price:
€ 303,10
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

Audiocontrol PNW-57 5x7" Coaxial Speakers, 75 W RMS, 3 ohm

The PNW line is characterized by a steel frame with reinforced edges for maximum structural resistance, a black anodized voice coil support for superior heat dissipation and a dual-wound linear suspension for precise cone movement. Additionally, the rigid polymer-coated cone optimizes sound reproduction.

PNW-57 Features

  • Steel frame with reinforced edges for greater structural resistance
  • Black anodized speaker support for superior heat dissipation
  • Dual-wound linear edge for precise cone movement
  • High-efficiency motor designed with complex FEA analysis
  • Rigid polymer-coated cone for optimized sound reproduction
  • Hybrid silk dome tweeter with rear damping for extended frequency response
  • Concentric point source design for seamless transition from midrange to treble
  • Sound diffuser and radiating collar for improved off-axis frequency response
  • High-quality mounting accessories included

Audiocontrol PNW-57 Technical Specifications

  • Crossover type: Butterworth
  • Power: 75 W RMS / 100 W max
  • DC resistance (Re): 2.3 ohm
  • Filter type: HP
  • Frequency response: 60-20 kHz
  • Crossover frequency 5250 Hz
  • Slope (octave) 6 dB
  • Tweeter voice coil diameter 20 mm
  • Midrange voice coil diameter 35 mm

Dimensions

  • Overall diameter: 140.6 x 221.9 mm
  • Mounting hole diameter: 118 x 177 mm
  • Mounting depth: 57 mm
  • Height: 5.6 mm
  • Motor diameter (with cover): 106 mm
€ 303,10 Price incl. VAT
