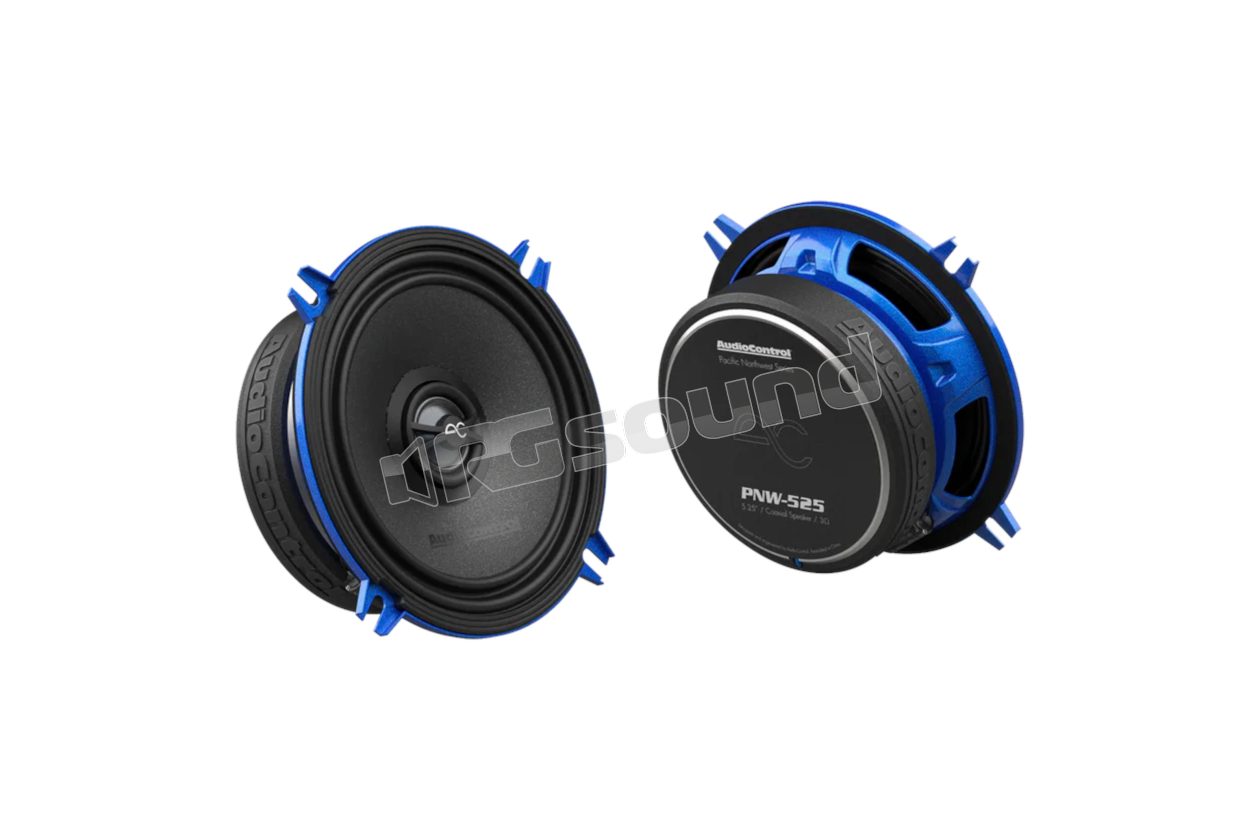

PNW-525 5.25" coaxial speakers, 50 W RMS, 3 ohm

Audiocontrol
Your price:
€ 255,60
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

Audiocontrol PNW-525 5.25" Coaxial Speakers, 50 W RMS, 3 ohm

The PNW line is characterized by a steel frame with reinforced edges for maximum structural resistance, a black anodized voice coil support for superior heat dissipation and a dual-wound linear suspension for precise cone movement. Additionally, the rigid polymer-coated cone optimizes sound reproduction.

PNW-525 Features

  • Steel frame with reinforced edges for greater structural resistance
  • Black anodized voice coil support for superior heat dissipation
  • Dual-wound linear edge for precise cone movement
  • High efficiency motor designed with FEA analysis
  • Rigid polymer-coated cone for optimized sound reproduction
  • Silk hybrid dome tweeter with rear damping for extended frequency response
  • Concentric point source design for seamless transition from midrange to treble
  • Sound diffuser and radiating collar for improved off-axis frequency response
  • High quality mounting accessories included

Audiocontrol PNW-525 Technical Specifications

  • Crossover type: Butterworth
  • Power: 50 W RMS / 75 W max
  • DC resistance (Re): 2.6 ohm
  • Filter type: HP
  • Frequency response: 75-20 kHz
  • Crossover frequency 5250 Hz
  • Slope (octave) -6 dB
  • Tweeter voice coil diameter 20 mm
  • Midrange voice coil diameter 35 mm

Dimensions

  • Overall diameter (without grille): 133 mm
  • Mounting hole diameter: 91.5 mm
  • Mounting depth: 42.2 mm
  • Height (without grille): 4.1 mm
  • Height (with grille): 16.5 mm
  • Motor diameter (with cover): 75.4 mm
  • Overall grille diameter: 137 mm
€ 255,60 Price incl. VAT
