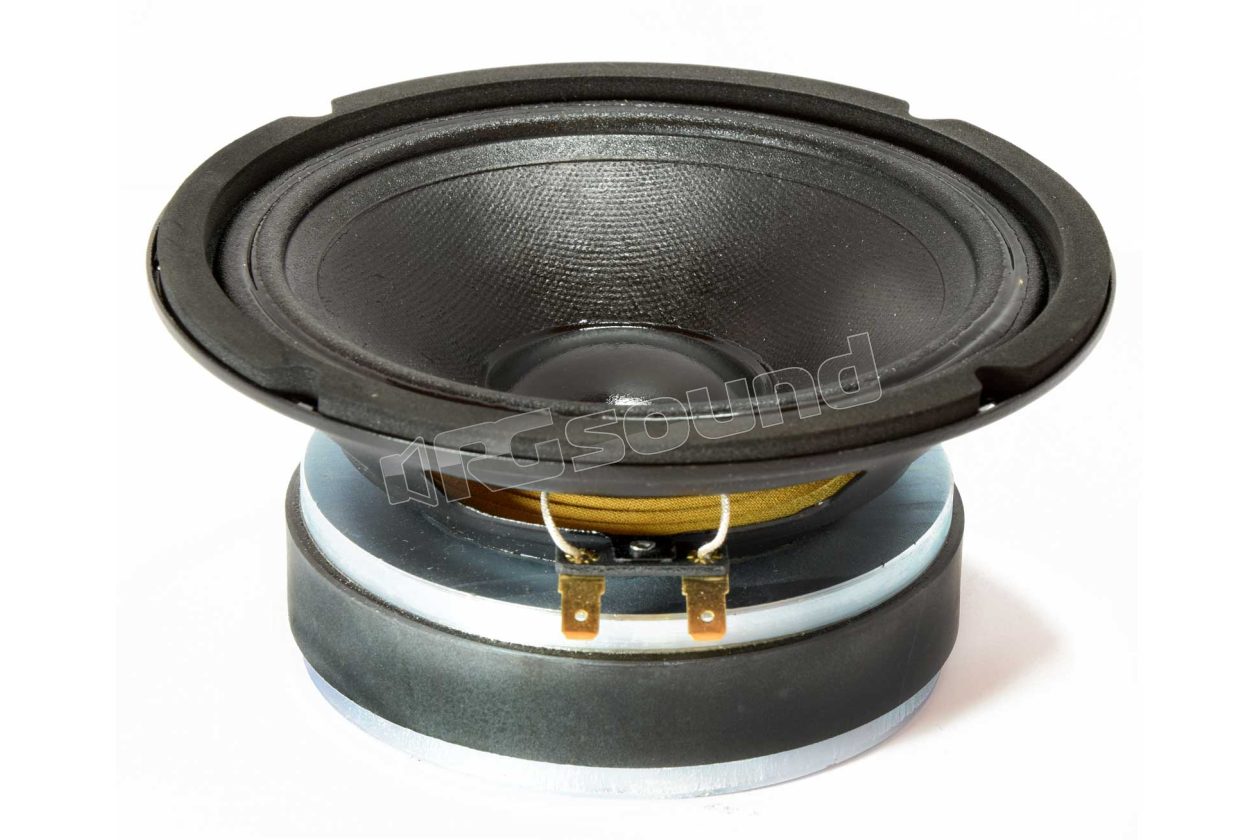

PM160 Max power 200W - Diameter 165mm

Ciare

Discontinued

Your price:
€ 62,00
Price per single item (VAT included)
Type
Midrange
Speaker Size
165 mm
MAX Power
200 Watt
RMS Power
80 Watt

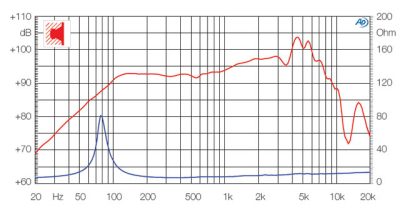

Frequency Response
80 - 8.000 Hertz
Sensitivity
93 dB
Impedance
8 Ohm
Weight
2,4 Kg
Installation Depth
73 mm
Voice Coil Diameter
38 mm

Ciare PM160 extended range 165mm with waterproofed cellulose diaphragm and cloth suspension. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market demands, with absolute loyalty to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product realization, allow the company to achieve the highest quality standards in the realization of every component.

PM160 Features

  • Max power: 200W
  • Nominal power: 80W
  • Nominal impedance: 8Ω
  • Diameter: 165mm
  • Voice coil diameter: 38mm
  • Sensitivity 1W/1m: 93 dB
  • Frequency response 80-8,000 Hz
  • Recommended enclosure type: Bass Reflex
  • Recommended reflex volume: 10 dm3
  • Recommended tuning frequency: 88 Hz

PM160 Materials

  • Basket type: Steel
  • Magnet type: Ferrite
  • Suspension type: Treated cloth
  • Former type: Kapton
  • Air gap height: 6 mm

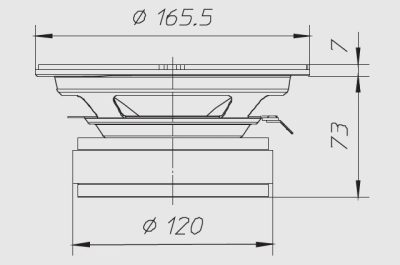

PM160 Dimensions

  • External diameter: 165.5 mm
  • Sub-flange depth: 73 mm
  • Flange thickness: 7 mm
  • Panel hole: 142 mm
  • Number of mounting holes: 4
  • Diameter of mounting holes: 5 mm
  • Mounting hole position diameter: 156
  • Weight with individual packaging: 2.40 Kg

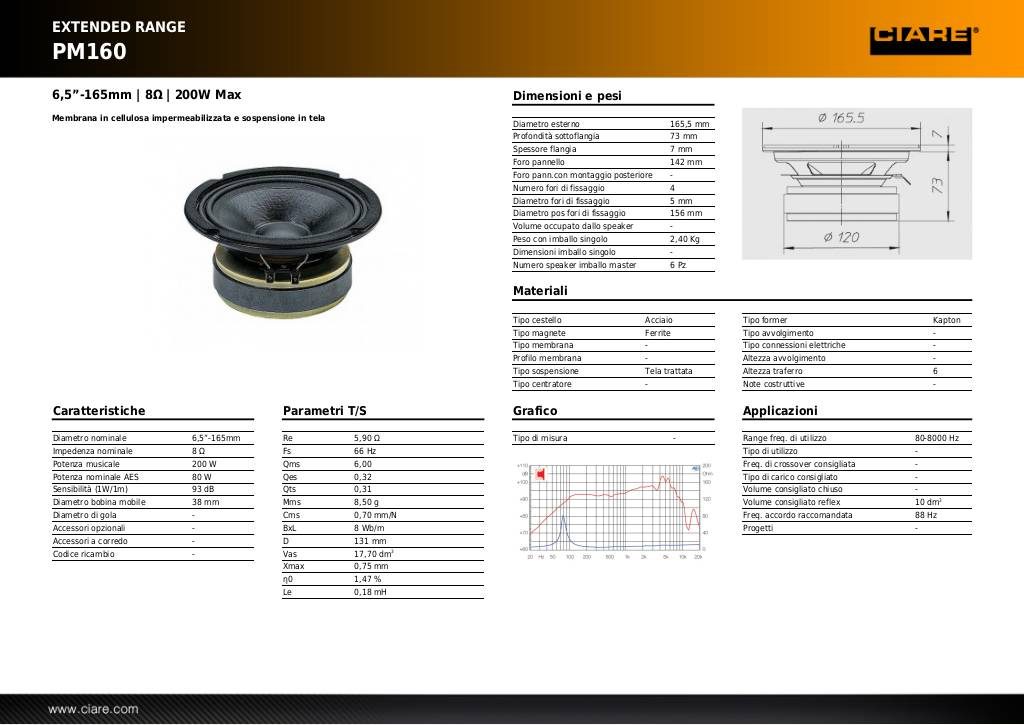

Scheda tecnica

20131105143902-pm160.pdf

1 Ciare extended range speaker 8 Ohm PM160
Discontinued
