PM135ND Max power 160W - Diameter 130mm

Ciare

Discontinued

Your price:
€ 136,00
Price per single item (VAT included)
Type
Midrange
Speaker Size
130 mm
MAX Power
160 Watt
RMS Power
80 Watt
Frequency Response
120 - 10.000 Hertz
Sensitivity
95 dB
Impedance
8 Ohm
Weight
1,25 Kg
Installation Depth
53,5 mm
Voice Coil Diameter
32 mm

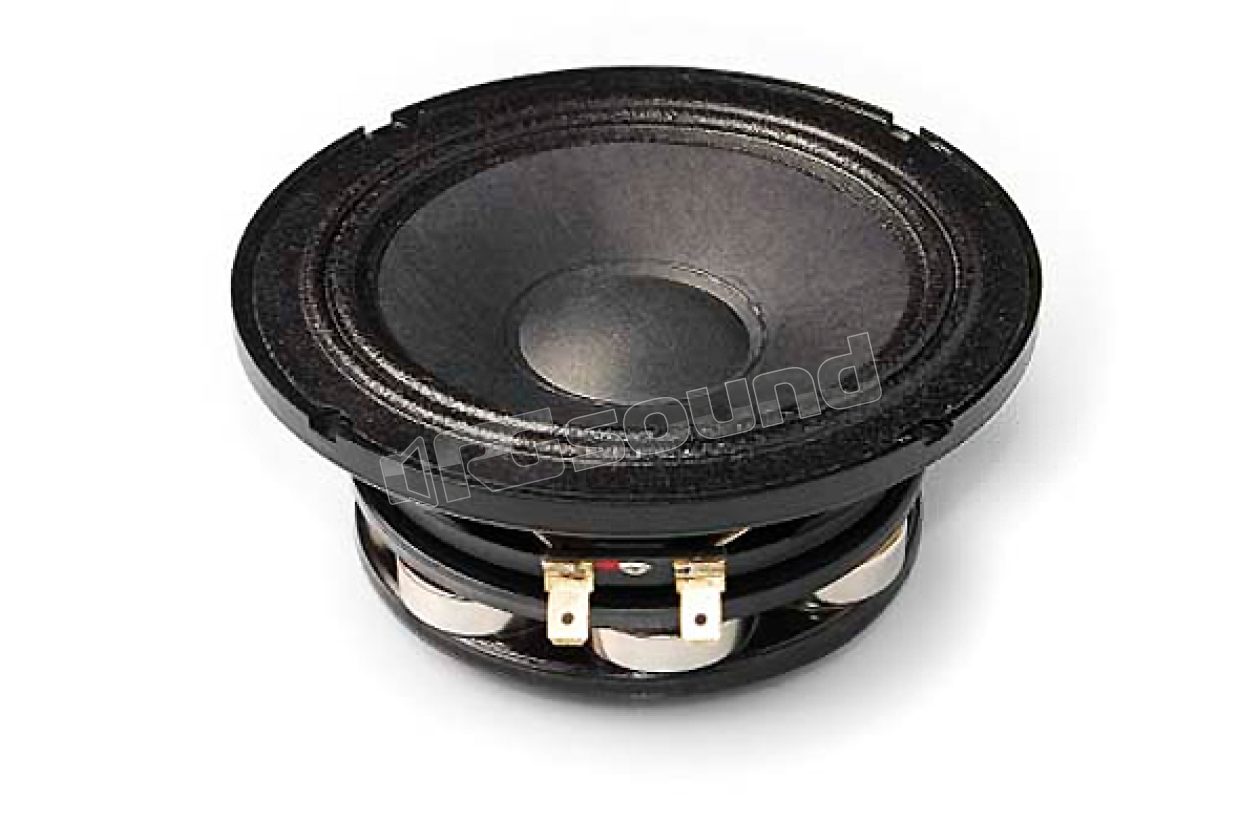

Ciare PM135ND extended range 130mm with cellulose diaphragm, NOMEX ® fabric suspension, neodymium magnet, gasket-free flange. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market demands, with absolute loyalty to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product manufacturing, allow the company to achieve the highest quality standards in the realization of every component.

PM135ND Features

  • Max power: 160W
  • Nominal power: 80W
  • Nominal impedance: 8Ω
  • Diameter: 130mm
  • Voice coil diameter: 32mm
  • Sensitivity 1W/1m: 95 dB

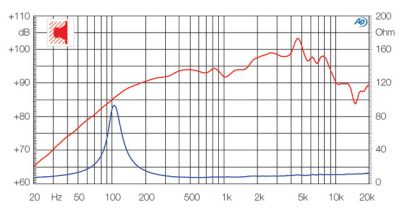

  • Frequency response 120-10.000 Hz
  • Recommended load type: Bass Reflex
  • Recommended reflex volume: 1.5 dm3
  • Recommended tuning frequency: 155 Hz

PM135ND Materials

  • Basket type: Steel
  • Magnet type: Neodymium
  • Suspension type: Nomex
  • Former type: Kapton
  • Air gap height: 6 mm

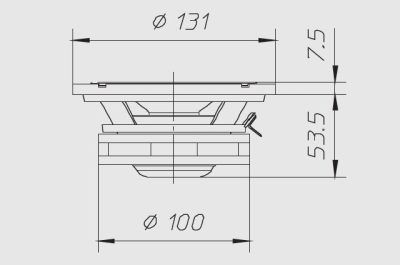

PM135ND Dimensions

  • Outer diameter: 131 mm
  • Sub-flange depth: 53.5 mm
  • Flange thickness: 7.5 mm
  • Panel hole: 119 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 4 mm
  • Mounting hole position diameter: 126
  • Weight with single packaging: 1.25 Kg

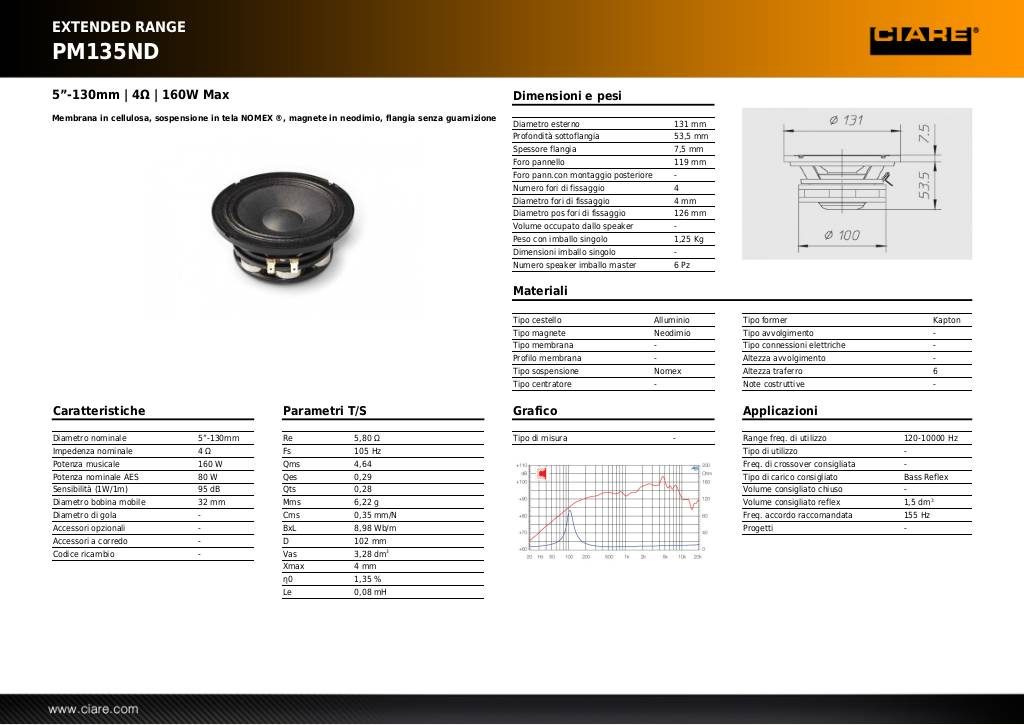

Scheda tecnica

20131105125603-pm135nd.pdf

1 Speaker at 8 Ohm Ciare extended range PM135ND
Discontinued
