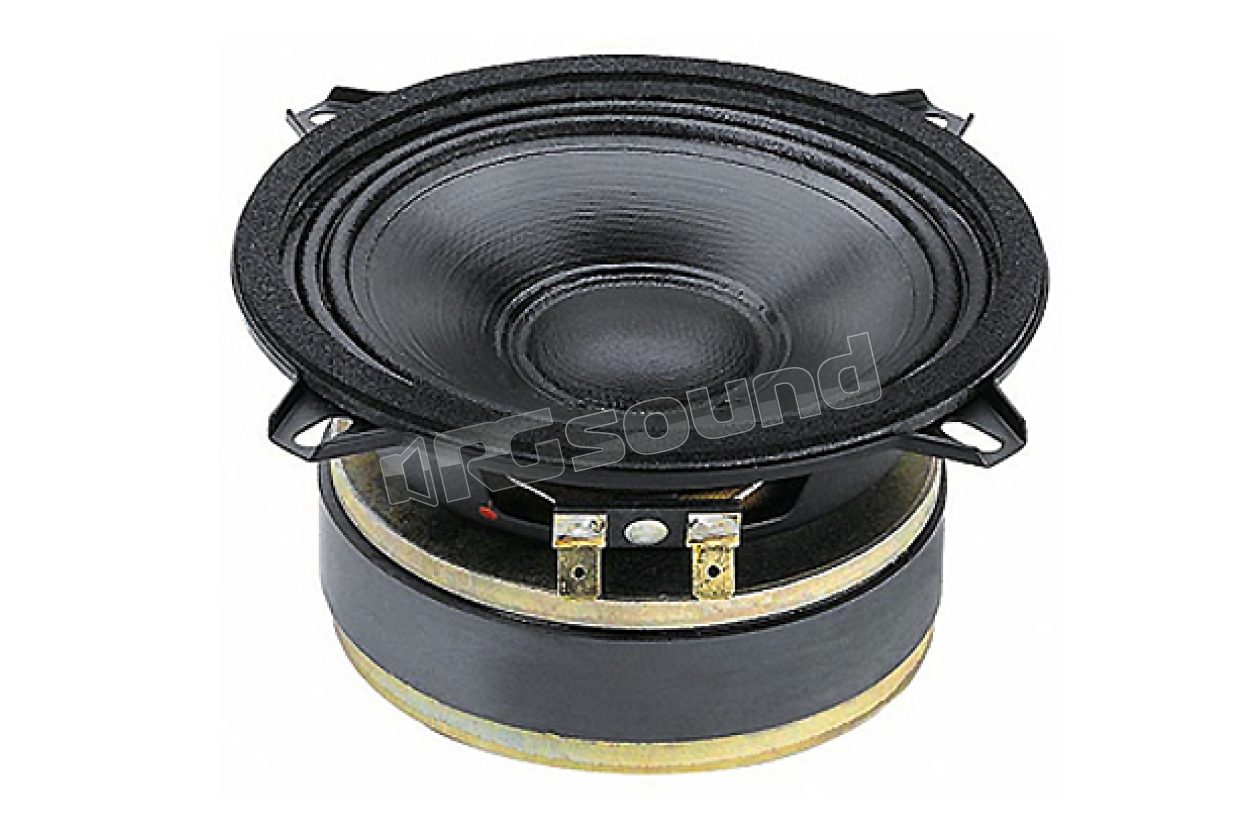

PM132 Max power 200W - Diameter 130mm

Ciare

Discontinued

Your price:
€ 49,00
Price per single item (VAT included)
Type
Midrange
Speaker Size
130 mm
MAX Power
200 Watt
RMS Power
80 Watt

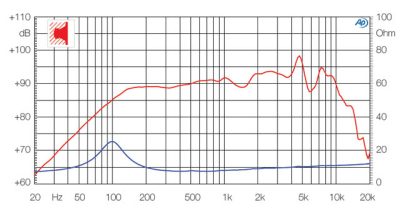

Frequency Response
150 - 7.000 Hertz
Sensitivity
90 dB
Impedance
8 Ohm
Weight
1,5 Kg
Installation Depth
61 mm
Voice Coil Diameter
32 mm

Ciare PM132 extended range 130mm with waterproof cellulose membrane and cloth suspension. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market demands, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to manage completely autonomously all phases of product realization, allowing the company to achieve the highest quality standards in the realization of each component.

PM132 Features

  • Max power: 200W
  • Nominal power: 80W
  • Nominal impedance: 8Ω
  • Diameter: 130mm
  • Voice coil diameter: 32mm
  • Sensitivity 1W/1m: 90 dB
  • Frequency response 150-7,000 Hz

PM132 Materials

  • Basket type: Steel
  • Magnet type: Ferrite
  • Suspension type: Treated cloth
  • Former type: Aluminum
  • Air gap height: 6 mm

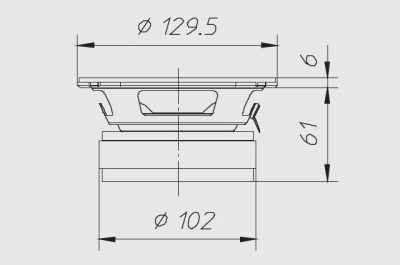

PM132 Dimensions

  • Outer diameter: 129.5 mm
  • Mounting depth: 61 mm
  • Flange thickness: 6 mm
  • Panel cutout: 112 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 5 mm
  • Mounting hole position diameter: 138.6
  • Weight with single box: 1.55 Kg

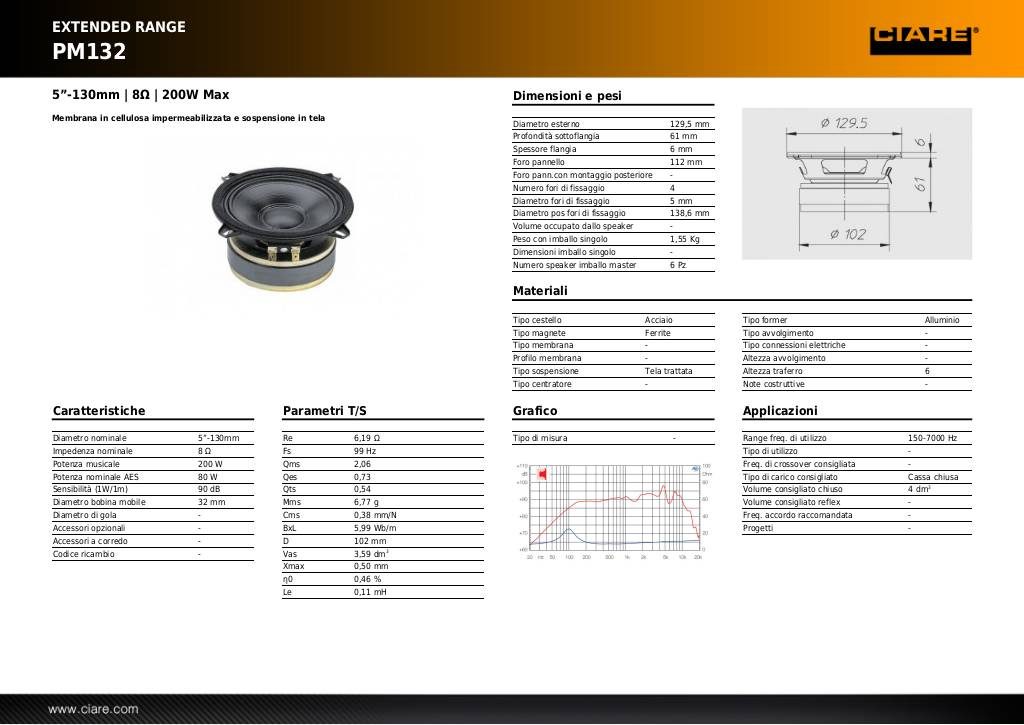

Scheda tecnica

20131105123930-pm132.pdf

1 Ciare extended range 8 Ohm speaker PM132
Discontinued
