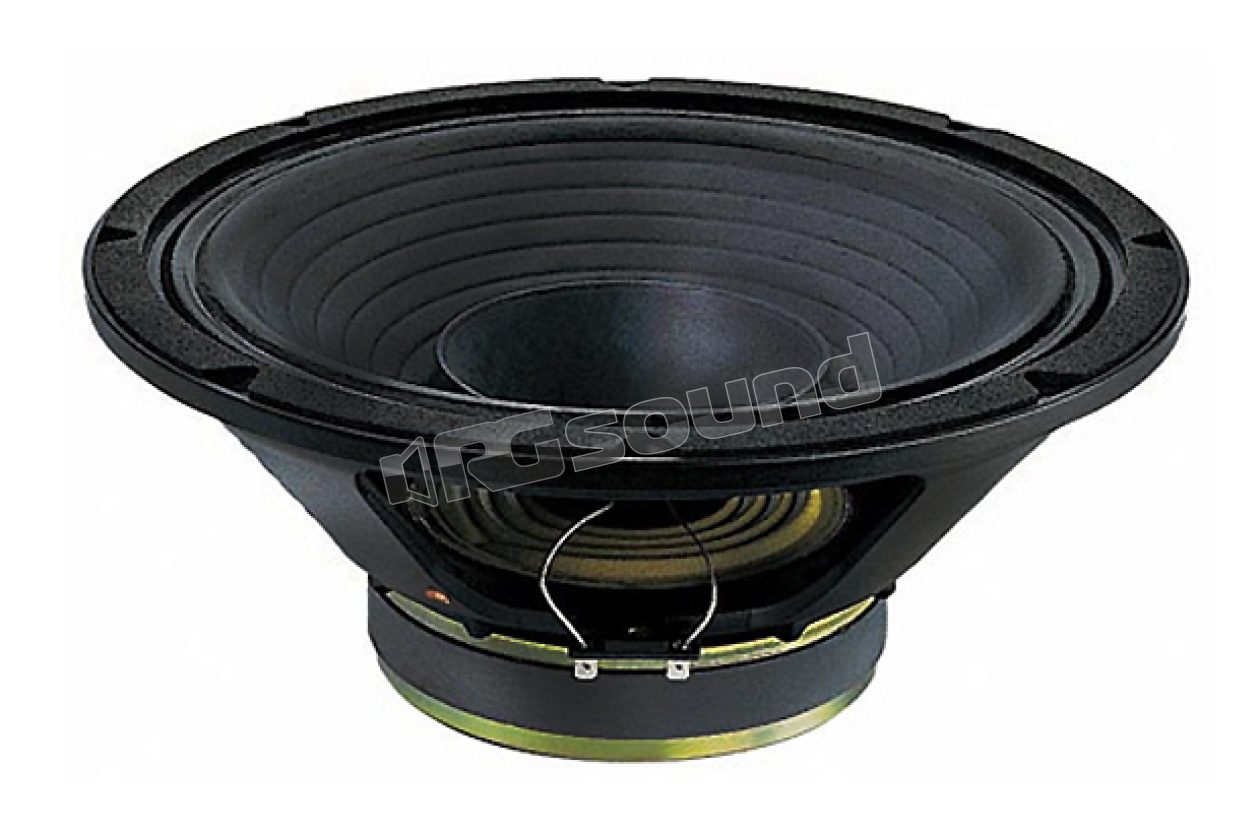

PH320 Max power 220W - Diameter 320mm

Ciare

Discontinued

Your price:
€ 136,00
Price per single item (VAT included)
Type
Two-way
Speaker Size
320 mm
MAX Power
220 Watt
RMS Power
120 Watt
Frequency Response
45 - 12.000 Hertz
Sensitivity
100 dB
Impedance
8 Ohm
Weight
5,3 Kg
Installation Depth
120 mm
Voice Coil Diameter
50 mm

Ciare PH320 dual cone 320mm with cellulose suspension. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market demands, with absolute loyalty to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to manage completely independently all phases of product realization, allowing the company to achieve the highest quality standards in the realization of every component.

PH320 Features

  • Max power: 220W
  • Nominal power: 120W
  • Nominal impedance: 8Ω
  • Diameter: 320mm
  • Voice coil diameter: 50mm
  • Sensitivity 1W/1m: 100 dB

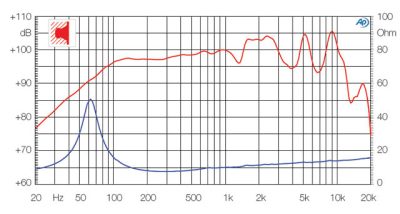

  • Frequency response 45-12,000 Hz
  • Recommended load type: Bass Reflex
  • Recommended reflex volume: 56 dm3
  • Recommended tuning frequency: 70 Hz

PH320 Materials

  • Basket type: Aluminum
  • Magnet type: Ferrite
  • Suspension type: Paper
  • Former type: Aluminum
  • Air gap height: 8 mm

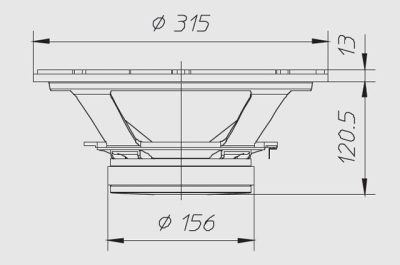

PH320 Dimensions

  • Outer diameter: 315 mm
  • Depth sub-flange: 120.5 mm
  • Flange thickness: 13 mm
  • Panel hole: 285 mm
  • Number of mounting holes: 8
  • Mounting hole diameter: 7 mm
  • Mounting hole pos. diameter: 295
  • Weight with single package: 5.30 Kg

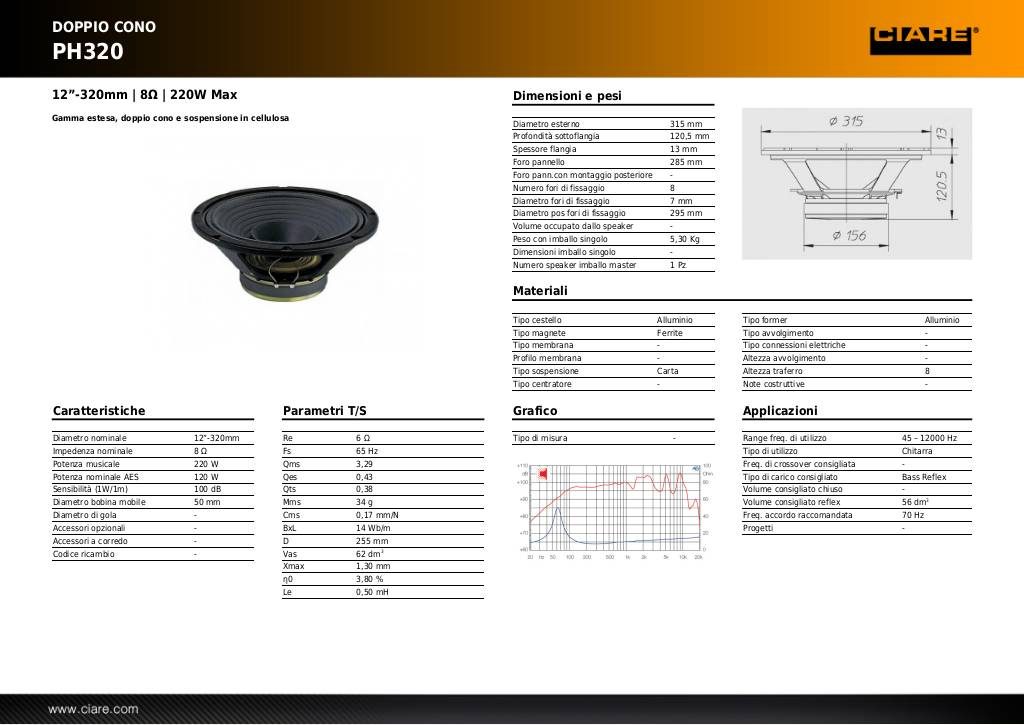

Scheda tecnica

20131105122118-ph320.pdf

1 8 Ohm Ciare dual cone speaker PH320
Discontinued
