PH250 Max power 300W - Diameter 250mm

Ciare

Discontinued

Your price:
€ 104,00
Price per single item (VAT included)
Type
Two-way
Speaker Size
250 mm
MAX Power
300 Watt
RMS Power
150 Watt
Frequency Response
55 - 16.000 Hertz
Sensitivity
96 dB
Impedance
8 Ohm
Weight
3,4 Kg
Installation Depth
100 mm
Voice Coil Diameter
50 mm

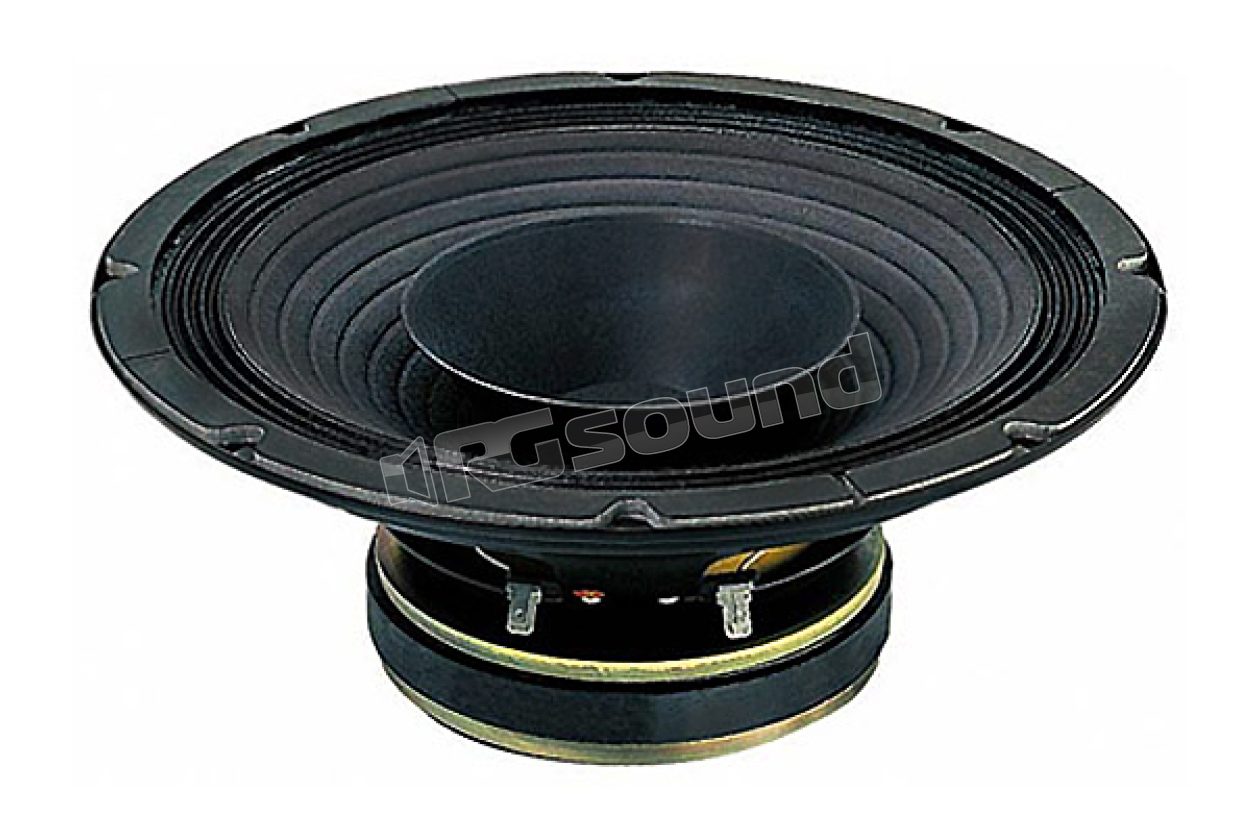

Ciare PH250 dual cone 250mm in cellulose and canvas suspension. Ciare is a company constantly keeping up with technological innovations and under the continuous stimulus of market demands, with absolute faithfulness to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to manage completely autonomously all phases of product development, allowing the company to achieve the highest quality standards in the realization of every component.

PH250 Features

  • Max Power: 300W
  • Nominal Power: 150W
  • Nominal Impedance: 8Ω
  • Diameter: 250mm
  • Voice Coil Diameter: 50mm
  • Sensitivity 1W/1m: 96 dB
  • Frequency Response 55-16.000 Hz
  • Recommended Load Type: Bass Reflex
  • Recommended Reflex Volume: 35 dm3
  • Recommended Tuning Frequency: 68 Hz

PH250 Materials

  • Basket Type: Steel
  • Magnet Type: Ferrite
  • Suspension Type: Treated Canvas
  • Former Type: Aluminum
  • Air Gap Height: 8 mm

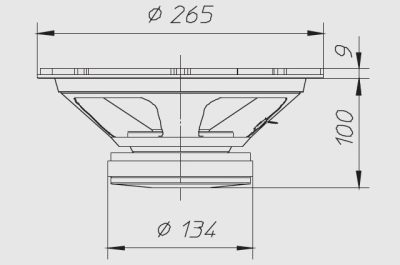

PH250 Dimensions

  • Outer Diameter: 265 mm
  • Depth Under Flange: 100 mm
  • Flange Thickness: 9 mm
  • Panel Hole: 238 mm
  • Number of Mounting Holes: 4
  • Mounting Hole Diameter: 6 mm
  • Mounting Hole Position Diameter: 253
  • Weight with Single Package: 3.40 Kg

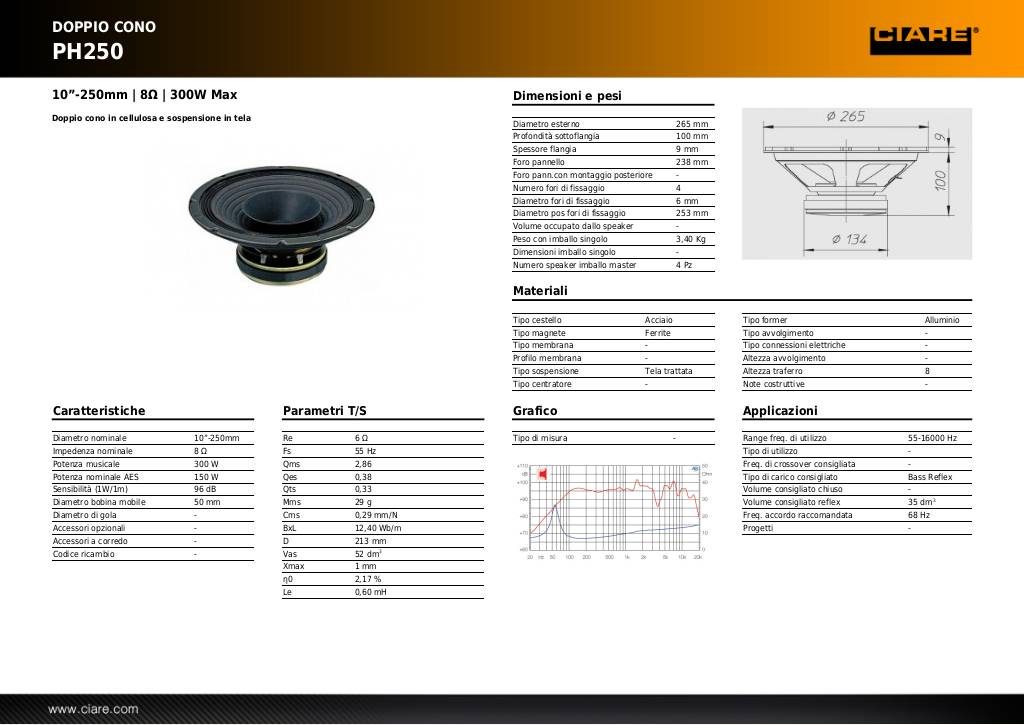

Scheda tecnica

20131105121331-ph250.pdf

1 Ciare PH250 dual cone speaker 8 Ohm
Discontinued
