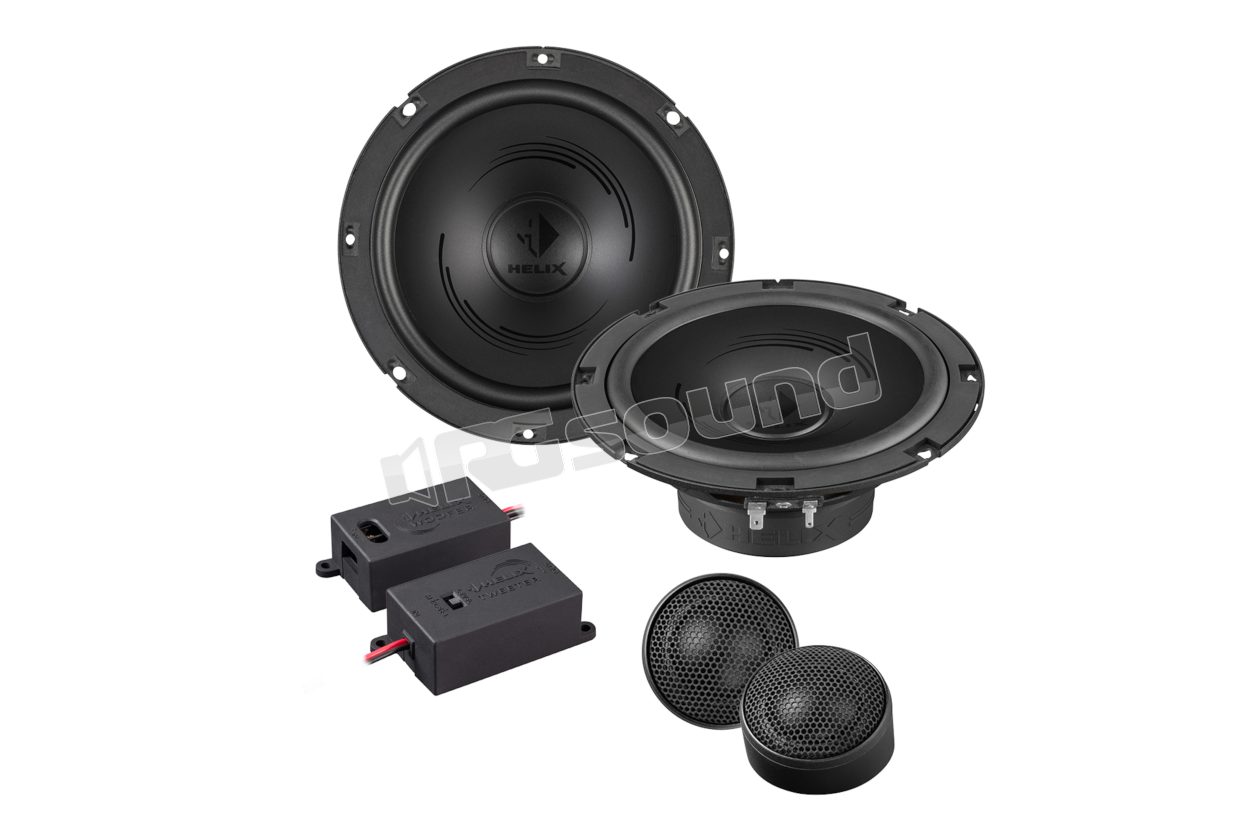

PF K165.2 Pure F-Series 165mm 2-way speaker system

Helix
Your price:
€ 187,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
2-way separate kit
Frequency Response
55 - 22.000 Hertz
Woofer Size
165 mm
Tweeter Size
25 millimetri
MAX Power
120 Watt
RMS Power
60 Watt
Sensitivity
92,5 dB
Impedance
3 Ohm
Woofer Material
Polipropilene
Tweeter Material
Cupola in seta

HELIX PF K165.2 Pure F-Series 2-way system 16.5 cm / 6.5"

The powerful F-series exploits the maximum power of your amplifier thanks to 3 Ohm technology. Combined with exceptional sound performance with powerful bass, clear midrange and detailed highs, the listening experience will surely be exciting. The PURE F speakers with their well-designed layout result in a reduced installation depth for the speakers, which takes into account the increasingly limited space of modern vehicles. The system offers a wide range of installation accessories with the innovative bayonet closure for the extremely compact tweeter, which allows any installation option, right down to simplifying the wiring thanks to the Flex-Crossover design.

The sophisticated "Flex-Crossover", composed of two parts and with enormous space savings, maximizes installation flexibility, for example when the tweeter is positioned in the A-pillar and the woofer in the door. This offers advantages in installations with space problems. The tweeter crossover is equipped with a two-stage level adjustment, which allows it to adapt to both personal listening preference and installation situation.

The timeless and elegant design of the F-series speakers, with the dynamic Space-Line style of the woofer cone. Carbon fibers incorporated in the polypropylene woofer cone optimize the reproduction of midrange frequencies, while the coated silk dome of the tweeter ensures exceptionally airy highs.

HELIX PF K165.2 Features
  • High sound quality with deep bass, clear midrange and detailed highs
  • Powerful high-efficiency speaker system thanks to 3 Ohm technology
  • Reduced mounting depth for trouble-free installation in almost all vehicles
  • Elegant HELIX design with matte black cone finish and glossy black Space Line style
  • Tweeter
    • 0.75" / 20 mm silk dome tweeter with neodymium magnet for brilliant and clear high response even at high levels
    • Smart and ultra-compact tweeter design and various mounting brackets to fit a wide variety of installation requirements
    • Removable grille for easy integration behind factory grilles at the vehicle's original mounting positions
  • Woofer
    • 6.5" / 165 mm woofer with rigid polypropylene cone injected with incorporated carbon fibers, for essential rigidity and high internal damping.
    • Powerful magnet system with optimal control for powerful and clear depth
    • Individual HELIX basket with additional ventilation holes for better voice coil cooling and high power handling
  • Flexible crossover
    • Separate two-part crossover for versatile connection options - suitable for installations in vehicles with separate tweeter and woofer mounting positions
    • Broadly tuned crossover with 12 dB slope for tweeter and woofer
    • 2-stage tweeter level adjustment with integrated tweeter protection for perfect listening experience

2 x HELIX PF T20-S Tweeter 2 x HELIX PF W165 Woofer 2 x Flex-Crossover in two parts 6 x tweeter mounting accessories 1 x mounting material 1 x instruction manual 1 x mounting diagram

HELIX PF K165.2 Pure F-Series Technical Specifications

  • RMS Power / Max. 60 / 120 Watt
  • Frequency response 55 Hz - 22.000 Hz
  • Impedance 3 Ω
  • Sensitivity 92.5 dB @ 2.83V / 1m
  • 88.5 dB at 1W / 1m
  • Cone material
    • TW: silk dome
    • M:
    • W: Polypropylene injected with incorporated carbon fibers
  • Separate crossover, 12/12 dB slope and tweeter protection
  • Outer diameter
    • TW: - 33.1 mm / 1.30
      • OE mounting: 36 mm / 1.42
      • Flush mounting: 42 mm / 1.65
      • Angle mounting: 36 mm / 1.42"
    • M: -
    • L: 165 mm
  • Mounting diameter
    • TW: - 33.1 mm
      • OE mounting: 36 mm / 1.42"
      • Flush mounting: 36 mm / 1.42"
      • Angle mounting: -
    • M: -
    • L: 142 mm
  • Installation depth
    • TW: - 9.8 mm / 0.38"
      • OE mounting: 16.8 mm / 0.66"
      • Flush mounting: 11 mm / 0.43"
      • Angle mounting: -
      • M: -
    • L: 61 mm
  • Crossover dimensions 75.5 x 35.1 x 24 mm / 2.97 x 1.38 x 0.95"
€ 187,00 Price incl. VAT
