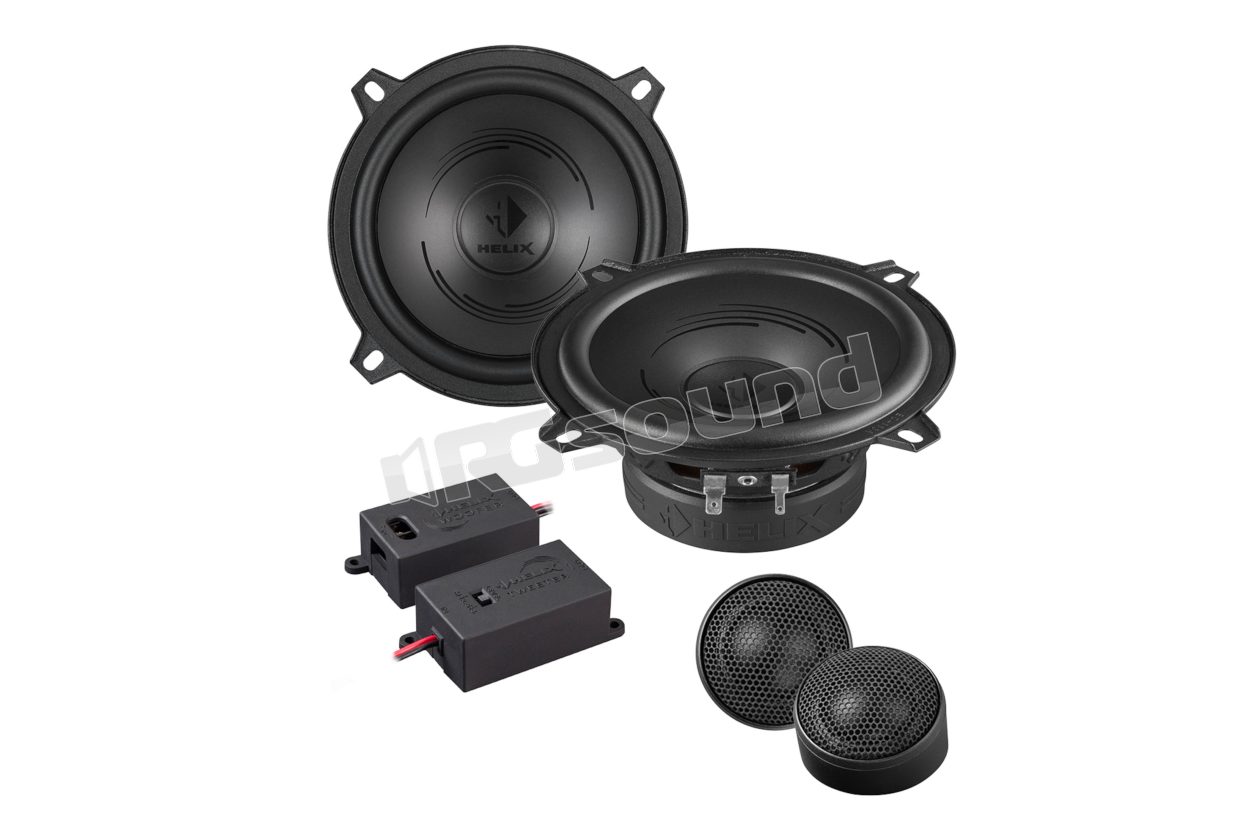

PF K130.2 13cm 2-way speaker system

Helix
Your price:
€ 187,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
2-way separate kit
Frequency Response
65 - 22.000 Hertz
Woofer Size
130 mm
Tweeter Size
25 millimetri
MAX Power
100 Watt
RMS Power
50 Watt
Sensitivity
91 dB
Impedance
3 Ohm
Woofer Material
Polipropilene
Tweeter Material
Cupola in seta

HELIX PF K130.2Pure F-Series 2-way system 13 cm / 5.25"

The powerful F-series harnesses the maximum power of your amplifier thanks to 3 Ohm technology. Combined with exceptional sound performance featuring powerful bass, clear midrange and detailed highs, the listening experience will certainly be thrilling. The PURE F speakers, with their design carefully crafted in every detail, require reduced installation depth for the speakers, taking into account the increasingly limited space in modern vehicles. Furthermore, the system offers a wide range of installation accessories, with the innovative bayonet closure for the extremely compact tweeter, which allows any imaginable installation option, all the way to simplified wiring thanks to our "Flex-Crossover" design.

HELIX PF K130.2 Features

  • High sound quality with deep bass, clear midrange and detailed highs
  • Powerful and high-efficiency speaker system thanks to 3 Ohm technology
  • Reduced mounting depth for trouble-free installation in virtually all vehicles
  • Elegant HELIX design with matte black cone finish and glossy black Space Line style
  • Tweeter
    • 0.75" / 20 mm silk dome tweeter with neodymium magnet for brilliant and clear high response even at elevated levels
    • Intelligent and ultra-compact tweeter design and various mounting brackets to accommodate a wide variety of installation requirements
    • Removable grille for easy integration behind factory grilles in the vehicle's original mounting positions
  • Woofer
    • 5.25" / 130 mm woofer with rigid polypropylene cone injected with embedded carbon fibers, for essential rigidity and high internal damping.
    • Powerful magnet system with optimal control for powerful and clear depth
    • Individual HELIX basket with additional ventilation holes for better cooling of the voice coil and high power handling
  • Flexible crossover
    • Separate two-part crossover for versatile connection options - suitable for installations in vehicles with separate mounting positions for tweeter and woofer
    • Widely adjusted crossover with 12 dB slope for tweeter and woofer
    • 2-stage tweeter level adjustment with integrated tweeter protection for perfect listening experience

2 x HELIX PF T20-S Tweeter 2 x HELIX PF W130 Woofer 2 x two-part Flex-Crossover 6 x tweeter mounting accessories 1 x mounting material 1 x instruction manual 1 x mounting diagram

HELIX PF K130.2Pure F-SerieS Technical Specifications

  • RMS / Max. Power 50 / 100 Watt
  • Frequency Response 65 Hz - 22.000 Hz
  • Impedance 3 Ω
  • Sensitivity 91.0 dB at 2.83 V / 1 m
  • 87.0 dB at 1W / 1m
  • Cone Material
    • TW: silk dome
    • M:
    • W: Polypropylene injected with embedded carbon fibers
  • Separate crossover, 12/12 dB slope and tweeter protection
  • External Diameter
    • TW: - 33.1 mm / 1.30
      • OE Mounting: 36 mm / 1.42"
      • Flush Mounting: 42 mm / 1.65
      • Angle Mounting: 36 mm / 1.42"
    • M: -
    • L: 129 mm
  • Mounting Diameter
    • TW: - 33.1 mm
      • OE Mounting: 36 mm / 1.42"
      • Flush Mounting: 36 mm / 1.42"
      • Angle Mounting: -
    • M: -
    • L: 112 mm
  • Mounting Depth
    • TW: - 9.8 mm / 0.38"
      • OE Mounting: 16.8 mm / 0.66"
      • Flush Mounting: 11 mm / 0.43"
      • Angle Mounting: -
    • M: -
    • L: 52 mm
  • Crossover Dimensions 75.5 x 35.1 x 24 mm / 2.97 x 1.38 x 0.95"
€ 187,00 Price incl. VAT
