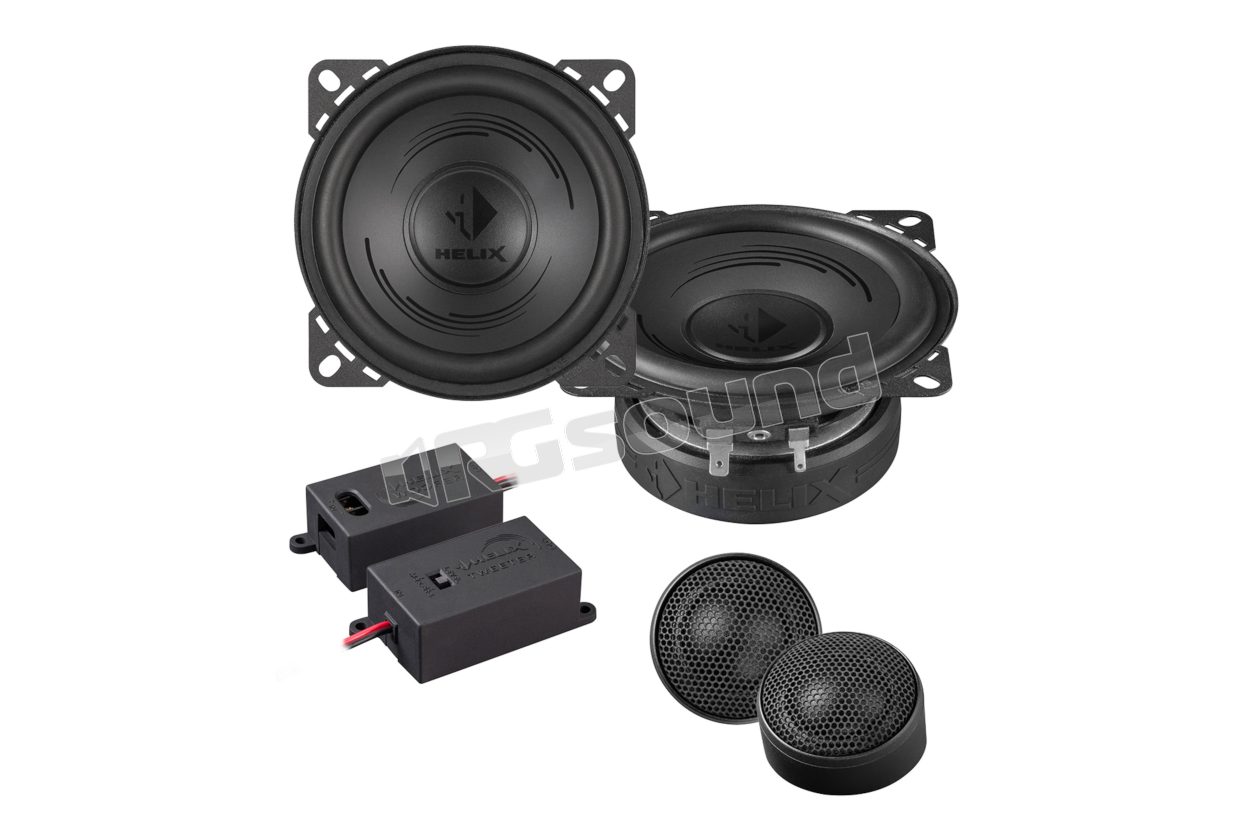

PF K100.2 Pure F-Series 2-way speaker system 100mm

Helix
Your price:
€ 187,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
2-way separate kit
Frequency Response
100 - 20.000 Hertz
Woofer Size
100 mm
Tweeter Size
25 millimetri
MAX Power
80 Watt
RMS Power
40 Watt
Sensitivity
90 dB
Impedance
3 Ohm
Woofer Material
Polipropilene
Tweeter Material
Cupola in seta

HELIX PF K100.2 Pure F-Series 2-Way System 10 cm / 4"

The powerful F-series taps the maximum power of the amplifier thanks to 3 Ohm technology. Combined with exceptional sound performance featuring powerful bass, clear midrange and detailed highs, the sound experience will certainly be thrilling. The Flex-Crossover split into two parts and with reduced size, maximizes installation flexibility, for example when the tweeter is positioned in the A-pillar and the woofer in the door. This offers decisive advantages, especially in installations with space constraints. Furthermore, the tweeter crossover is equipped with a two-stage level adjustment, which allows adaptation to both personal listening preference and installation situation.

The timeless and elegant design of the F-series speaker line, with the dynamic Space-Line style of the woofer cone, is by no means an end in itself, but rather the result of the use of high-quality materials. Carbon fibers incorporated in the polypropylene woofer cone optimize the reproduction of midrange frequencies, while the coated silk dome of the tweeter guarantees exceptionally airy highs.

Helix PF K100.2 Features

  • High sound quality with deep bass, clear midrange and detailed highs
  • Powerful and high efficiency speaker system thanks to 3 Ohm technology
  • Reduced mounting depth for trouble-free installation in virtually all vehicles
  • Elegant HELIX design with matte black cone finish and glossy black Space Line style
  • Tweeter
    • 0.75" / 20 mm silk dome tweeter with neodymium magnet for brilliant and clear high response even at elevated levels
    • Intelligent and ultra-compact tweeter design and various mounting brackets to accommodate a wide variety of installation requirements
    • Removable grille for easy integration behind factory grilles in the vehicle's original mounting positions
  • Woofer
    • 4" / 100 mm woofer with rigid polypropylene cone injected with incorporated carbon fibers, for essential rigidity and high internal damping.
    • Powerful magnet system with optimal control for powerful and clear depth
    • Individual HELIX basket with additional ventilation holes for better voice coil cooling and high power handling
  • Flexible crossover
    • Separate two-part crossover for versatile connection options - suitable for installations in vehicles with separate tweeter and woofer mounting positions
    • Extensively adjusted crossover with 12 dB slope for the tweeter and 6 dB for the woofer
    • 2-stage tweeter level adjustment with integrated tweeter protection for perfect listening experience

2 x Tweeter HELIX PF T20-S 2 woofer HELIX PF W100 2 x Flex-Crossover in two parts 6 x tweeter mounting accessories 1 x mounting material 1 x instruction manual 1 x mounting diagram

HELIX PF K100.2 Pure F-Series Technical Specifications

  • RMS Power / Max. 40 / 80 Watts
  • Frequency Response 100 Hz - 22,000 Hz
  • Impedance 3 Ω
  • Sensitivity 90.0 dB at 2.83 V / 1 m
  • 86.0 dB at 1W / 1m
  • Cone Material
    • TW: silk dome
    • M:
    • W: Polypropylene injected with incorporated carbon fibers
  • Separate crossover, 6/12 dB slope and tweeter protection
  • External Diameter
    • TW: - 33.1 mm / 1.30
    • OE Mount: 36 mm / 1.42"
    • Flush Mount: 42 mm / 1.65"
    • Angle Mount: 36 mm / 1.42"
  • M: -
  • L: 102.4 mm / 4.03"
  • Mounting Diameter
  • TW: - 33.1 mm
    • OE Mount: 36 mm / 1.42"
    • Flush Mount: 36 mm / 1.42"
    • Angle Mount: -
  • M: -
  • L: 93 mm
  • Installation Depth
  • TW: - 9.8 mm / 0.38"
    • OE Mount: 16.8 mm / 0.66"
    • Flush Mount: 11 mm / 0.43"
    • Angle Mount: -
  • M: -
  • L: 45 mm
  • Crossover Dimensions 75.5 x 35.1 x 24 mm / 2.97 x 1.38 x 0.95"
€ 187,00 Price incl. VAT
