PF-FR6030 three-way full range

Fusion

Discontinued

Your price:
€ 65,70
Price per pair (VAT included)
Type
Coaxial
Speaker Size
165 mm
Coaxial Type
3-way
Frequency Response
29 - 27.000 Hertz
MAX Power
250 Watt
RMS Power
45 Watt
Sensitivity
89 dB
Impedance
4 Ohm
Woofer Material
Polipropilene
Tweeter Material
Cupola in seta

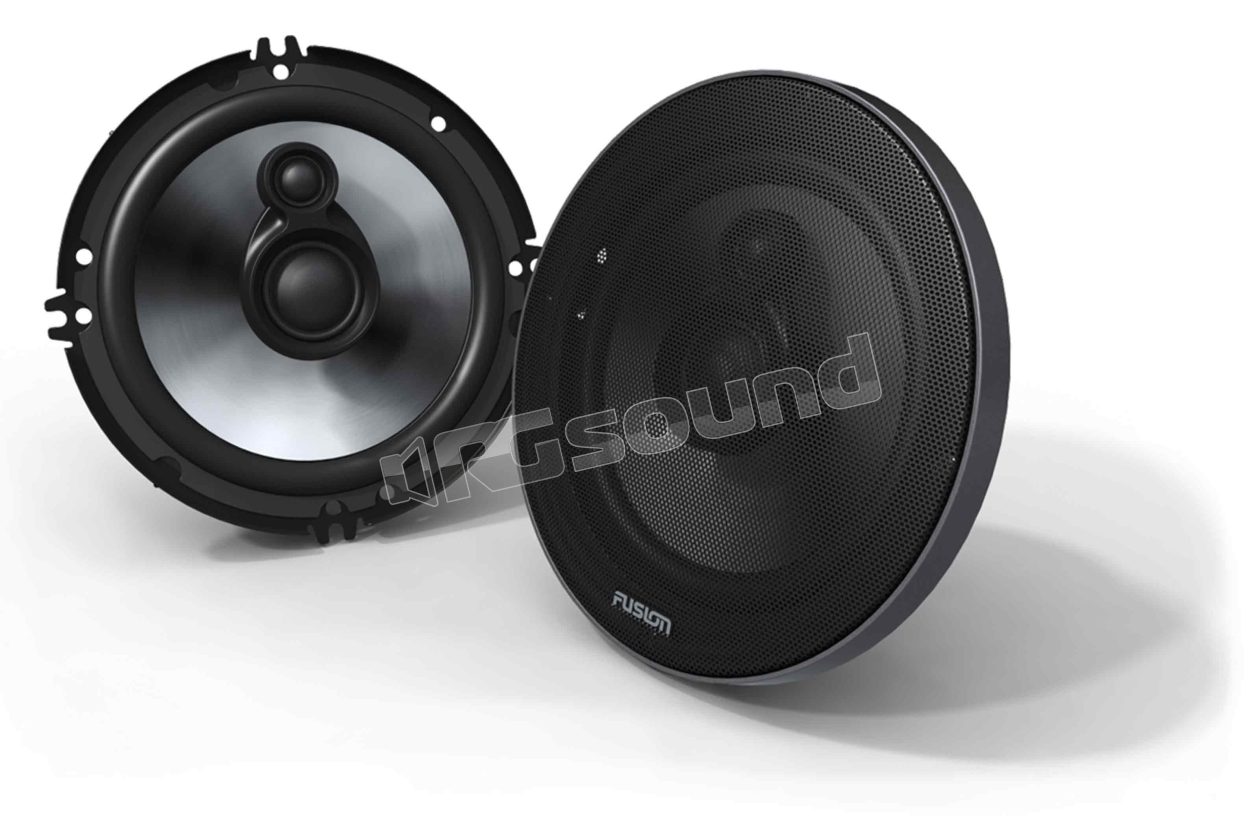

Fusion PF-FR6030 pair of coaxial full range three-way speakers from the Performance Series, 16.5cm (6") diameter

The 3-way PF-FR6030 speakers are designed to integrate with the cabin interior, ensuring exceptional audio reproduction, making them perfect for installation inside the boat.

Features of the PF-FR6030 speakers:

The silk dome tweeters produce incredibly accurate highs while the rigid injection-molded polypropylene cones produce precise bass response. The dynamic response of butyl rubber surround offers excellent lateral stability and long durability for sustained high performance.

With the advanced 3-way speaker configuration, the PF-FR6030 combines separate woofer, midrange, and tweeter for improved audio clarity. The new grille included in the package adds the finishing touch to the installation and fits all interior panels.

The PF-FR6030 delivers incredible power of 250 watts, making them the perfect mix of performance and style.

Fusion PF-FR6030 technical specifications:

Peak Power (Watts) 250

Rated Power (Watts) 45

Frequency Response 29Hz - 27kHz

Sensitivity (dB) 89

Cone Material IMPP

Surround Material PU

Basket Steel Frame

Tweeter Type Silk Dome

Crossover Type 1st Order

D.C. Coil Resistance (Re) (Ohm) 3.27

Free Air Resonance (Fs) (Hz) 61.9

Cone Area (Sd) (cm²) 118.82

VAS (L) 11.0208

VAS (CuFt) 0.3892

Compliance (Cms) (mm/N) 0.552

Diaphragm Mass (Mmd) (g) 11.241

Force Factor (Bl) (TM) 4.411

Mechanical Q (Qms) 4.295

Electrical Q (Qes) 0.783

Total Loudspeaker Q (Qts) 0.662

Voice Coil Impedance 4 Ohm

Mounting Depth 60mm (2-3/8")

Mounting Diameter 131mm (5-1/4")

Discontinued
