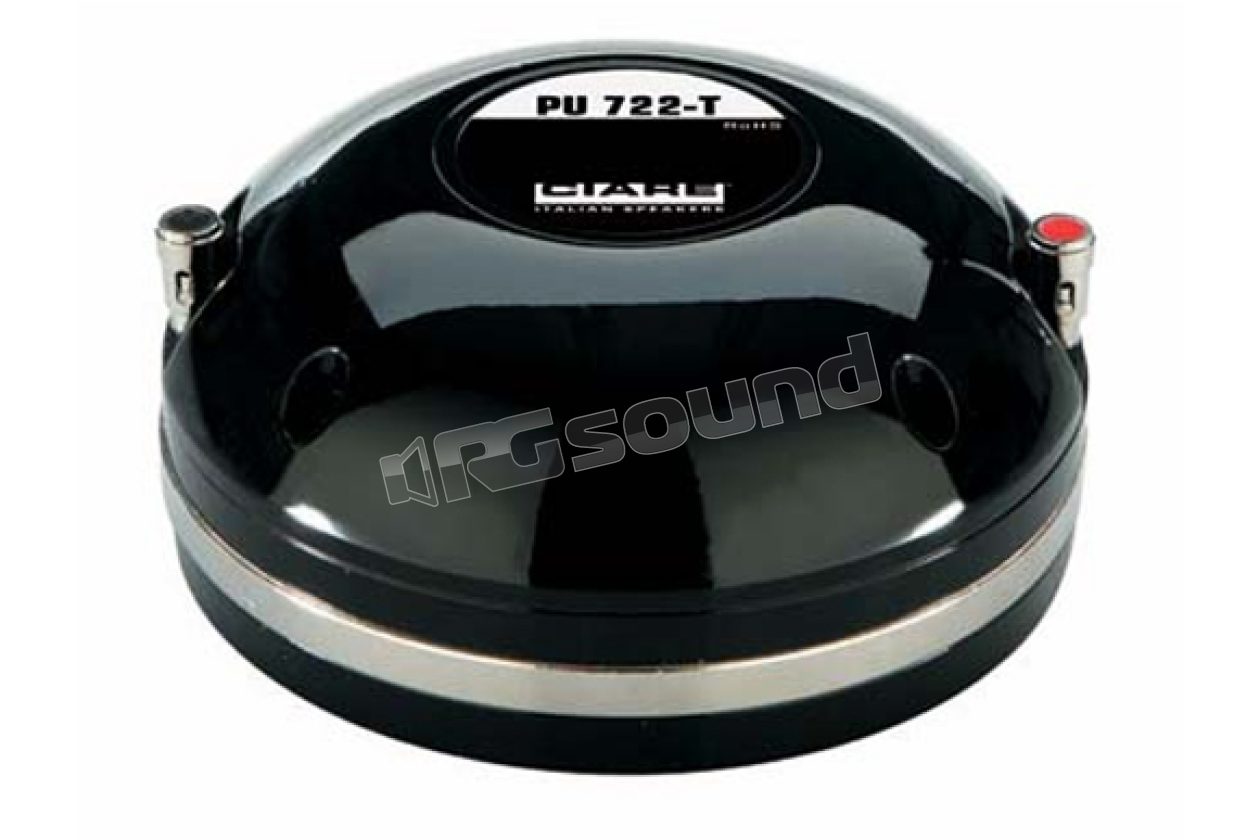

PCD-722T compression driver

Ciare

Discontinued

Your price:
€ 276,00
Price per single item (VAT included)
Type
Tweeter
Speaker Size
100 mm
MAX Power
400 Watt
RMS Power
200 Watt
Frequency Response
1.200 - 20.000 Hertz
Sensitivity
109 dB
Impedance
8 Ohm
Weight
2,8 Kg
Installation Depth
74 mm
Voice Coil Diameter
72 mm

Ciare PCD-722T Compression driver, titanium diaphragm, neodymium magnet. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market demands, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product realization, allowing the company to achieve the highest quality standards in the realization of every component.

PCD-722T Features

  • Musical power: 400 W
  • Nominal power AES: 200 W
  • Nominal impedance: 8Ω
  • Voice coil: 72mm
  • Sensitivity 1W/1m: 109 dB
  • Throat diameter:1.5
  • Recommended crossover freq: 2000 Hz
  • Freq range of use: 1200-20000 Hz

PCD-722T Materials

  • Magnet type: Neodymium
  • Former type: Kapton

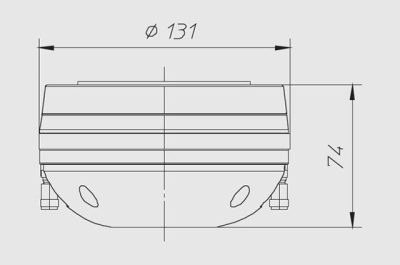

PCD-722T Dimensions

  • Outer diameter: 131 mm
  • Depth under flange: 74 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 6 mm
  • Mounting hole position diameter: 101.6
  • Net weight: Weight with single packaging: 2.80 Kg

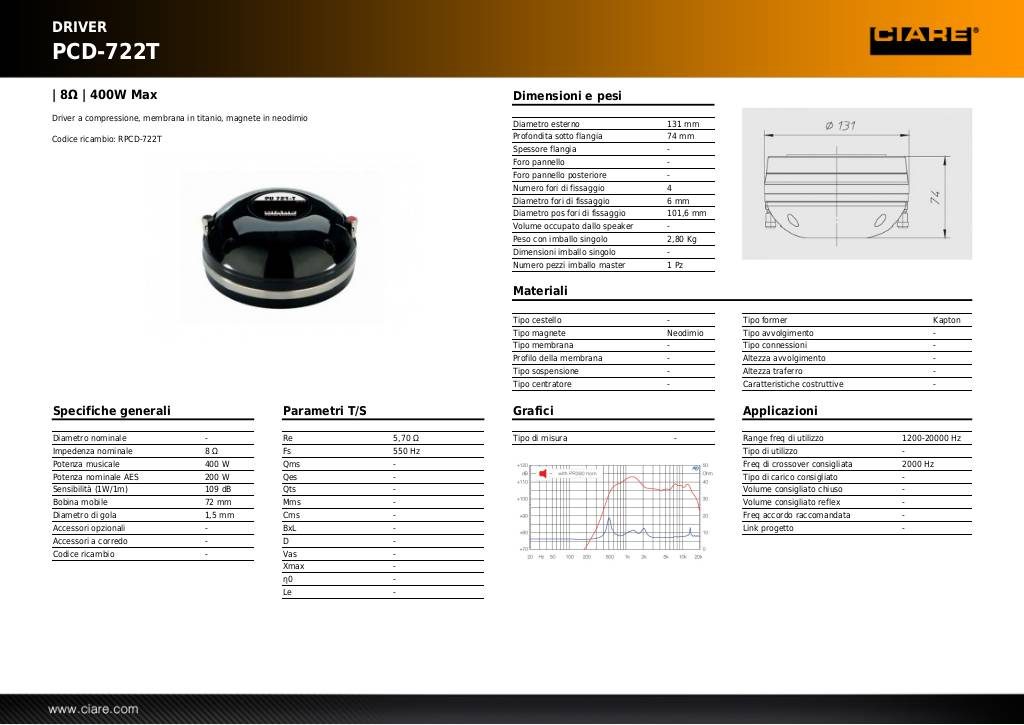

Scheda tecnica

20140303103226-pcd-722t.pdf

1 PCD-722T Compression driver
Discontinued
