PCD-440T compression driver

Ciare

Discontinued

Your price:
€ 175,00
Price per single item (VAT included)
Type
Tweeter
Speaker Size
100 mm
MAX Power
360 Watt
RMS Power
180 Watt

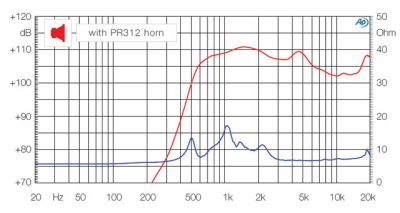

Frequency Response
1.600 - 20.000 Hertz
Sensitivity
107 dB
Impedance
8 Ohm
Weight
1,2 Kg
Voice Coil Diameter
44 mm

Ciare PCD-440T Compression driver, titanium diaphragm, neodymium magnet. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market demands, with absolute loyalty to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product realization, allow the company to achieve the highest quality standards in the realization of every component.

PCD-440T Features

  • Music power: 360 W
  • Nominal AES power: 180 W
  • Nominal impedance: 8Ω
  • Voice coil: 44mm
  • Sensitivity 1W/1m: 107 dB
  • Throat diameter: 1"
  • Recommended crossover freq: 2,000 Hz
  • Frequency range of use: 1,600-20,000 Hz

PCD-440T Materials

  • Magnet type: Neodymium
  • Diaphragm type: Titanium
  • Former type: Kapton
  • Connection type: Push

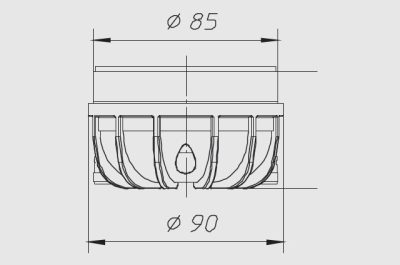

PCD-440T Dimensions

  • External diameter: 90 mm
  • Number of mounting holes: 3
  • Mounting hole diameter: 6 mm
  • Mounting hole position diameter: 57
  • Weight with single package: 1.20 Kg

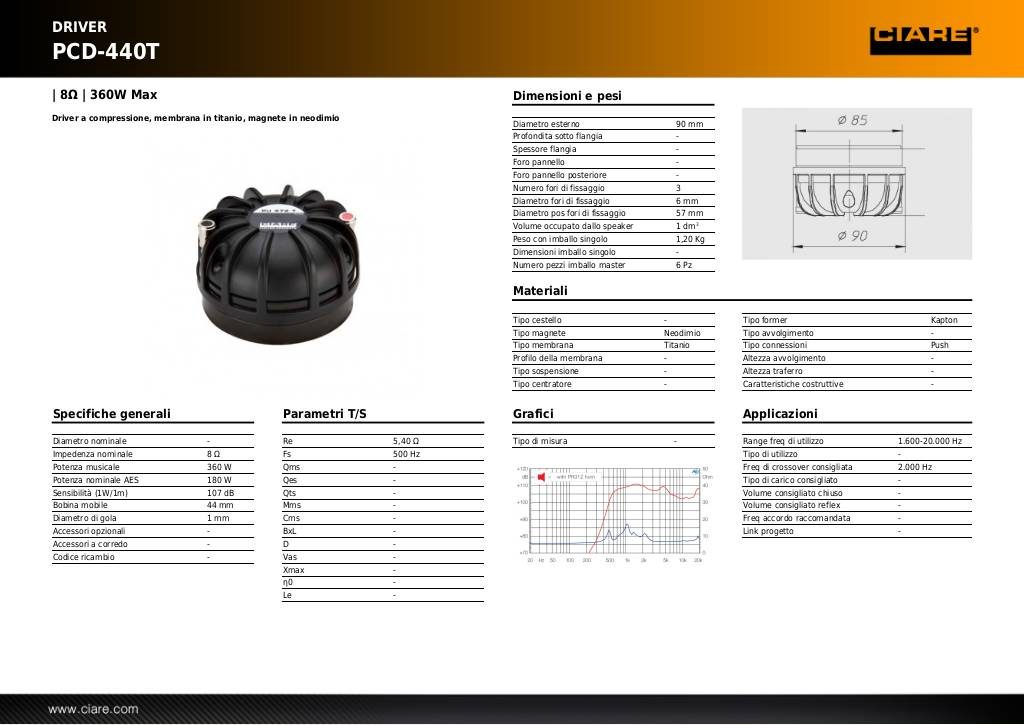

Scheda tecnica

20140303101303-pcd-440t.pdf
