Passat 3C - Tiguan 2-way plug&play rear kit for VW Passat 3C and Tiguain

ETON

Discontinued

Your price:
€ 169,20
Price per single item (VAT included)
Type
2-way separate kit
Woofer Size
150 mm
Tweeter Size
25 millimetri
MAX Power
80 Watt
RMS Power
50 Watt
Sensitivity
87 dB
Impedance
2 Ohm
Woofer Material
Cellulosa e fibra di vetro
Tweeter Material
Cupola in seta

ETON Passat 3C - Tiguan Plug&Play two-way speaker system dedicated to the rear of Volkswagen Passat 3C and Tiguan.

Passat 3C - Tiguan Features

• 100% designed and built in Germany
• Plug & Play design: easy installation, no vehicle modifications
• Compatible with direct source drive as well as amplifiers
• 145 mm woofer with fiberglass/cellulose composite membrane
• Tweeter with 25 mm voice coil and silk dome
• Original connectors
• Complete with speaker installation brackets
• RMS power: 50 W
• Impedance: 2 Ohm

Passat 3C - Tiguan Specifications

Technical Data

Wert/Value

Einh./Unit

Nominal impedance

2

Ohm

DC resistance

2

Resonance frequency1 W

68

Hz

Resonance frequency

TS-parameter-meas.

83

Hz

Suspension compliance

0.30

mm/N

Mechanical Q

5.14

Electrical Q

1.03

Total Q

0.85

Mechanical resistance

1.35

kg/s

Total moving mass(including air mass)

12.3

g

Effective piston area

118

cm2

Voice coil diameter

25

mm

voice coil former

Aluminium

Voice Coil length

8.5

mm

Voice Coil layers

2

Voice Coil inductance

0.18

mH

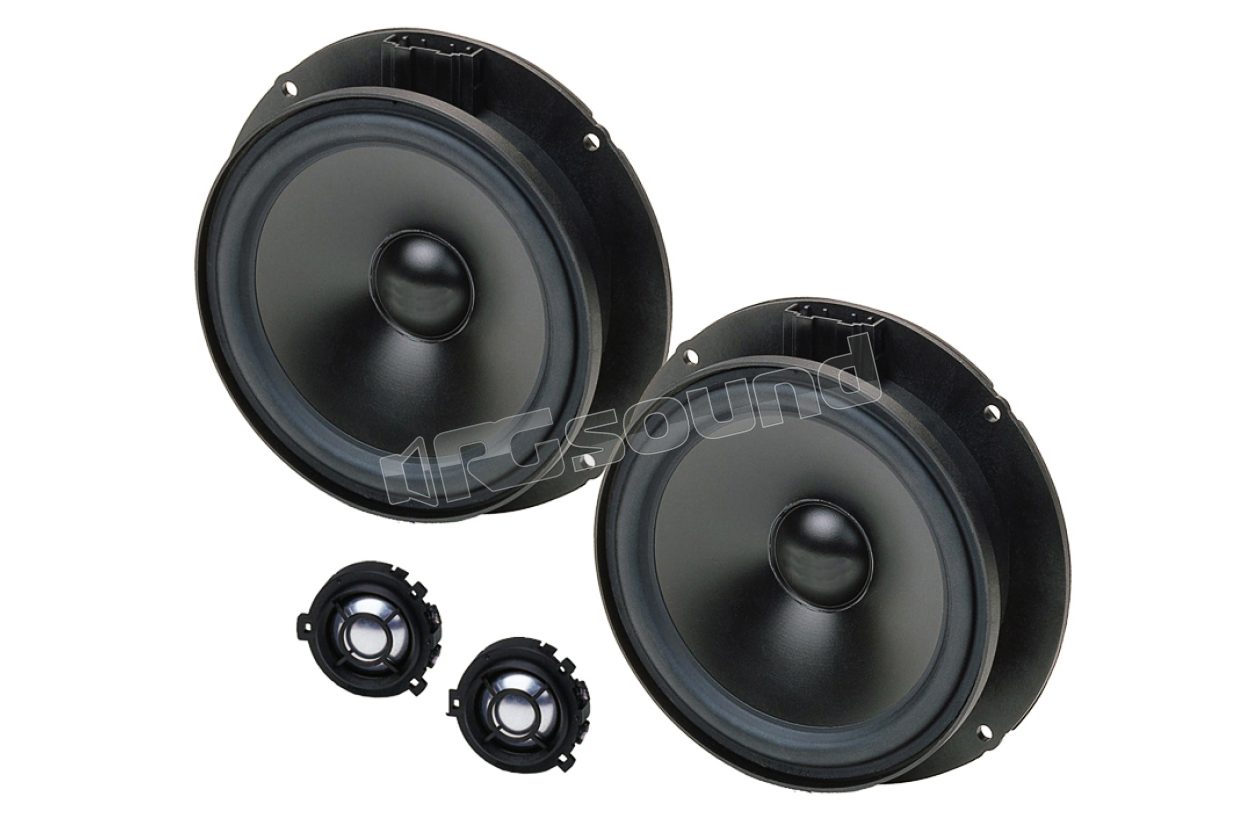

Pair of 145 mm woofers Pair of 25 mm tweeters Dedicated crossovers Speaker installation brackets
