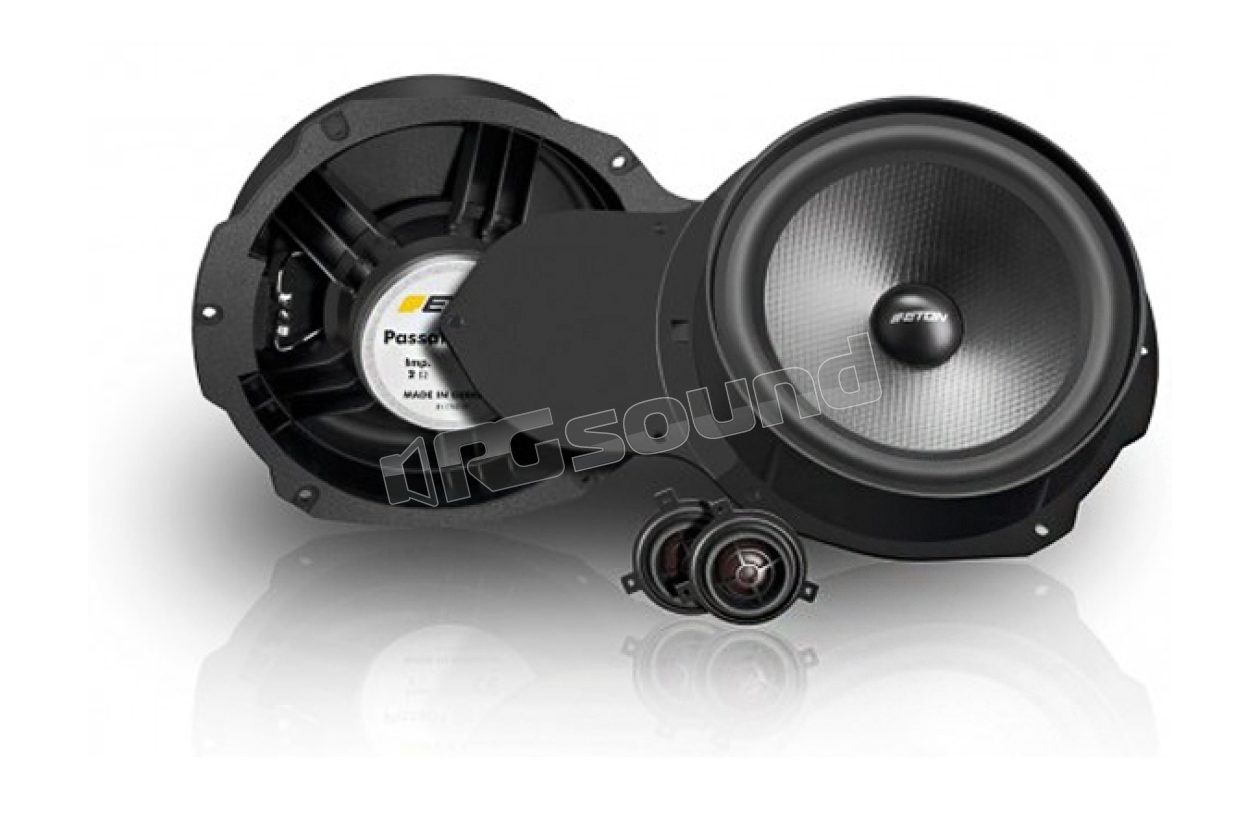

Passat 3C-F 2.2 2-way front kit for VW Passat 3C

ETON

Discontinued

Your price:
€ 349,00
Price per single item (VAT included)
Type
2-way separate kit
Woofer Size
180 mm
Tweeter Size
25 millimetri
MAX Power
80 Watt
RMS Power
50 Watt
Sensitivity
88 dB
Impedance
2 Ohm
Woofer Material
Cellulosa e fibra di vetro
Tweeter Material
Cupola in seta

ETON VW PASSAT 3C F2.2 2-way front system dedicated for Volkswagen Passat 3C

Passat 3C F 2.2 Features

• 100% designed and built in Germany
• Plug & Play design: easy installation, no vehicle modification
• 180 mm midwoofer with fiberglass/cellulose composite membrane
• Tweeter with 25 mm voice coil and aluminum dome
• Custom crossover
• Original connectors
• Complete with brackets for speaker installation
• RMS Power: 50 W
• Impedance: 2 Ohm

Passat 3C- F 2.2 Specifications

Nominal impedance

2

Ohm

DC resistance

2.0

Resonance frequency 1 W

57

Hz

Resonance frequency

TS-parameter-meas.

64

Hz

Suspension compliance

0.31

mm/N

Mechanical Q

4.72

Electrical Q

1.00

Total Q

0.82

Mechanical resistance

1.84

kg/s

Total moving mass (including air mass)

19.7

g

Effective piston area

178

cm2

Voice coil diameter

25

mm

voice coil former

Aluminium

Voice Coil length

8.5

mm

Voice Coil layers

2

Voice Coil inductance

0.21

mH

Flux density

1.25

Tesla

Force factor

3.90

Tm

Height of the gap

4

mm

Diameter of magnet

82

mm

Height of magnet

15

mm

Mass of speaker

0.94

kg

Characteristic sound pressure level 1 W1m

88

dB SPL

Nominal rated power

50

W

Equivalent air volume of suspension

13.7

dm3

Pair of 180 mm woofers Pair of 25 mm tweeters Dedicated crossovers Speaker brackets
Discontinued
