P500-12P 30cm powered subwoofer in ported enclosure

Rockford Fosgate
Your price:
€ 469,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

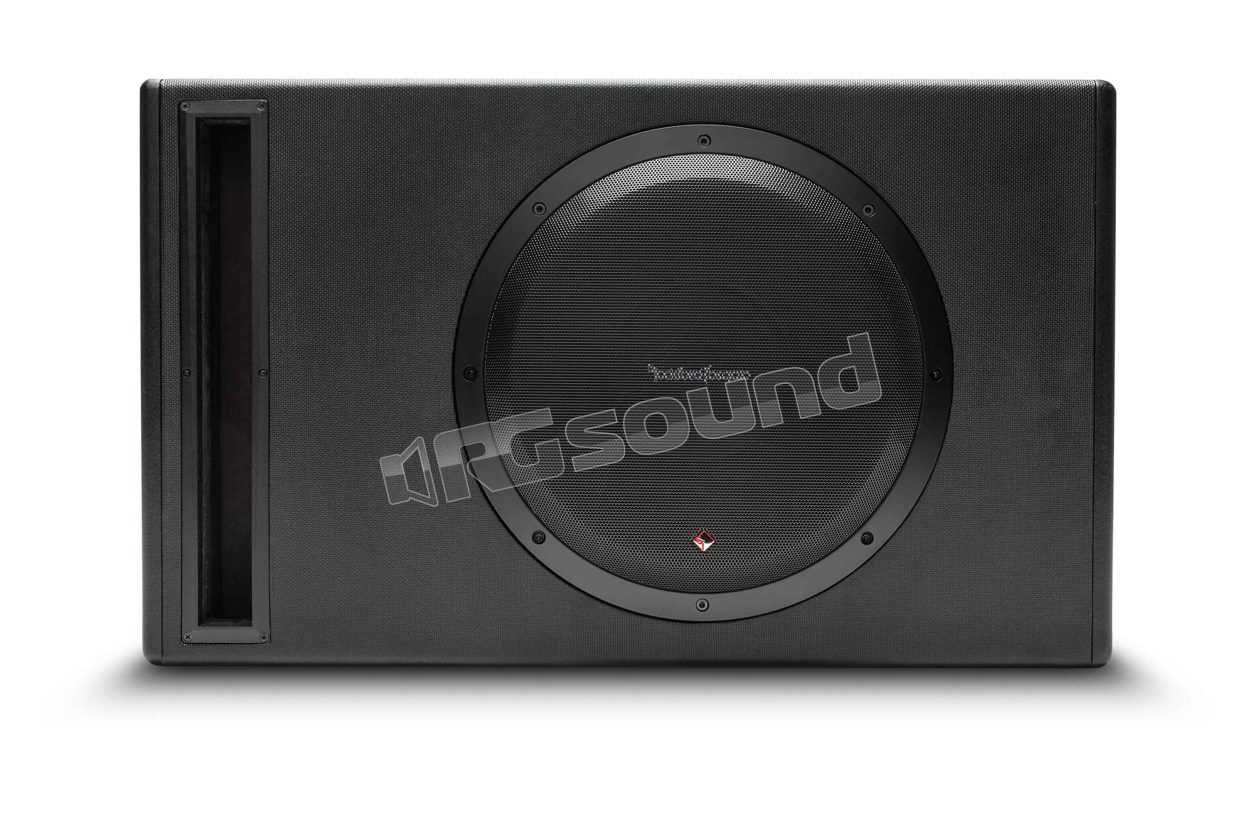

Rockford Fosgate P500-12P Powered Subwoofer 30cm Ported Enclosure

The Rockford Fosgate P500-12P is a powered subwoofer in a ported enclosure. This all-in-one solution is ideal for systems that need greater power in the lower part of the frequency spectrum. The 12" subwoofer is optimized for the impedance of the built-in 500 watt Class D amplifier, equipped with low-pass crossover, bass equalizer and phase switch. You can adjust the amount of bass with the included remote level control. The slot port provides powerful output at the lowest frequencies for better bass reproduction.

The enclosure can be connected via speaker level inputs for connection to factory systems or traditional line level inputs for aftermarket systems. It also features an intelligent automatic turn-on/turn-off circuit that eliminates the need for a separate remote turn-on wire. The enclosure is precisely designed and constructed using MDF (Medium Density Fiberboard) to achieve the best acoustic properties and covered with a heat-activated vinyl finish to resist stains. The cabinet is also equipped with quick-disconnect connectors for easy removal when you need additional space.

P500-12P Features

  • 12" subwoofer
  • 500 Watt Class D amplifier with optimized "Closed Loop" design
  • Low-pass crossover adjustable from 12 dB/Octave
  • Phase switch on board
  • Intelligent automatic turn-on/turn-off function
  • Robust power/ground connections
  • Quick input connections for easy removal
  • Adjustable bass EQ on board
  • Bass level remote control included
  • Separate low level and speaker level inputs
  • Precisely constructed MDF enclosure with heat-activated vinyl finish
  • Thermal and overvoltage/undervoltage protection
  • Designed for Hatchback, Sedan and SUV versions

Manuale d'uso

n-20230725162030-manuale-p500-12.pdf

Rockford Fosgate P500-12P Technical Specifications

  • Woofer quantity 1
  • Woofer size 12
  • Woofer series Proprietary
  • Frequency response 20 Hz to 200 Hz
  • Power handling (Watt RMS) 500 Watt RMS
  • Nominal impedance -
  • Enclosure type Ported
  • Speaker connector -
  • Built-in amplifier 500 Watt RMS
  • Enclosure material 5/8" MDF (Medium Density Fiberboard)
  • Crossover controls Variable from 50 Hz to 200 Hz Butterworth at 12 dB/octave
  • Tone controls Bass boost From 0 dB to +12 dB at 45 Hz
  • Phase control from 0° to 180
  • Remote control Bass level control (included)
  • Auto turn-on selector
    • Remote actuator
    • DC offset sense
    • Audio sensitivity
  • Input selector
    • High level (speaker line)
    • Low level (RCA)
  • Signal input Low/High level: 1 pair RCA (L/R summed)
  • Input impedance 20k Ohm
  • Power input connector Quick disconnect
  • Power cable gauge
    • B+/GND: 8 AWG
    • REM: 18 AWG
  • Heatsink type Extruded aluminum
  • Input sensitivity
    • Low level: 150 mV to 6 V
    • High level: 300 mV to 12 V
  • Circuit topology Class D
  • Cooling Convection
  • Visual indicators Power/protection LED
  • Fuses 30 Amp (2 x 15 Amp ATO fuses)
  • Shipping weight 21.9 kg
€ 469,00 Price incl. VAT
