P300-8P

Rockford Fosgate
Your price:
€ 309,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Powered subwoofer
Speaker Size
200 mm
MAX Power
600 Watt
RMS Power
300 Watt
Frequency Response
30 - 200 Hertz
Weight
8,6 Kg
Enclosure Size
448 x 289 x 141 mm
Enclosure Type
Reflex Enclosure

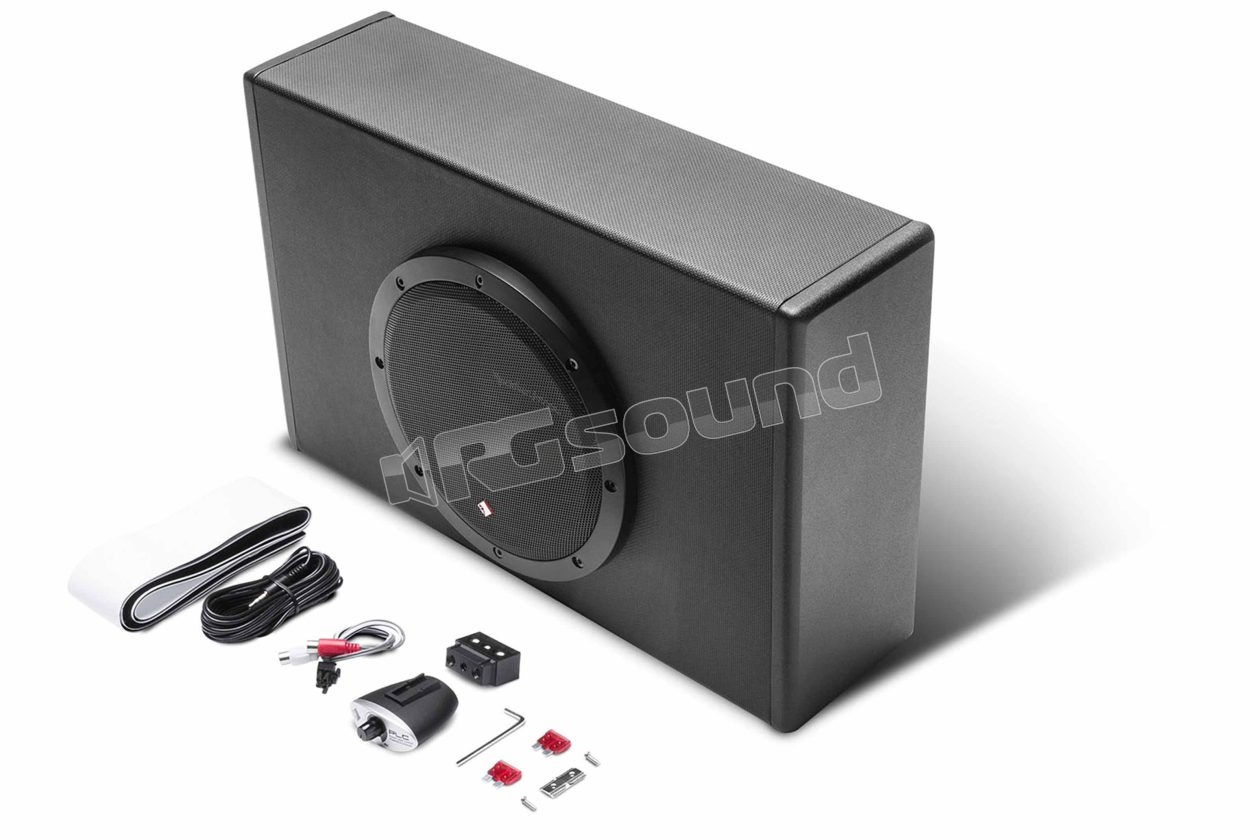

Rockford Fosgate P300-8P powered subwoofer in slim enclosure

Punch P300-8P is an "all-in-one" solution to boost the bass of your audio system. This model features a high-power 8" / 20 cm woofer with an internal 300 watt amplifier in a slim-design enclosure ideal for trucks and compact cars. The enclosure is equipped with quick-release input and power connectors for easy removal when additional space is needed.

The enclosure is designed and built with precision using MDF (Medium Density Fiberboard) for the best acoustic properties and covered with thermally activated vinyl.

Rockford Fosgate P300-8P main features

High-efficiency low-current amplifier
Low-impedance optimized 8" / 20 cm woofer
300 Watt Class D amplifier with "Closed Loop" design
Variable low-pass crossover 12 dB / Octave
On-board phase switch
Intelligent automatic turn-on / turn-off function
Robust power / ground connections
Quick input connections for easy removal
On-board adjustable Bass EQ
Bass level remote control included
Separate low-level and speaker inputs
Precision-built MDF enclosure with vinyl finish
Thermal and overvoltage / undervoltage protection
Slim design

Manuale utente

n-20190522145109-1230-71030-02-rf-punch-powerloaded-man.pdf

Rockford Fosgate P300-8P technical specifications

Frequency response 30 Hz to 200 Hz
Woofer size 8" / 20 cm
Power handling 300 Watt RMS
Vented enclosure
Box material MDF 5/8 "(medium density fiberboard
CEA-2006 compliant
Integrated amplifier 300 Watt RMS
Variable crossover controls 50 Hz to 200 Hz
12dB / Octave Butterworth
Bass boost from 0 dB to +12 dB;
Phase control from 0° to 180°
Remote control included
High-Level (Speaker Line)
Low level (RCA)
Low / High level signal input: 1 pair RCA (L / R summing)
Low level: 150 mV to 6 V
High level: 300 mV to 12 V
Input impedance 20k Ohm
Power Wire Gauge B + / GND: 8 AWG
REM: 18 AWG
Amplifier circuit topology class Class-D
Heat sink type extruded aluminum
Power / protection LED
Fuses 20 Amp (2 x 10 ATO Fuse)
Enclosure dimensions H x W x D 289 mm x 448 mm x 141 mm
Shipping weight 8.6 kg

€ 309,00 Price incl. VAT
