P1S8-12 Punch P1 Series

Rockford Fosgate

Discontinued

Your price:
€ 126,10
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
300 mm
MAX Power
500 Watt
RMS Power
250 Watt
Frequency Response
20 ÷ 250 Hertz
Sensitivity
86 dB
Impedance
8 Ohm
Weight
5,3 Kg
Installation Depth
152 mm
Woofer Material
Cellulosa con rinforzo Kevlar

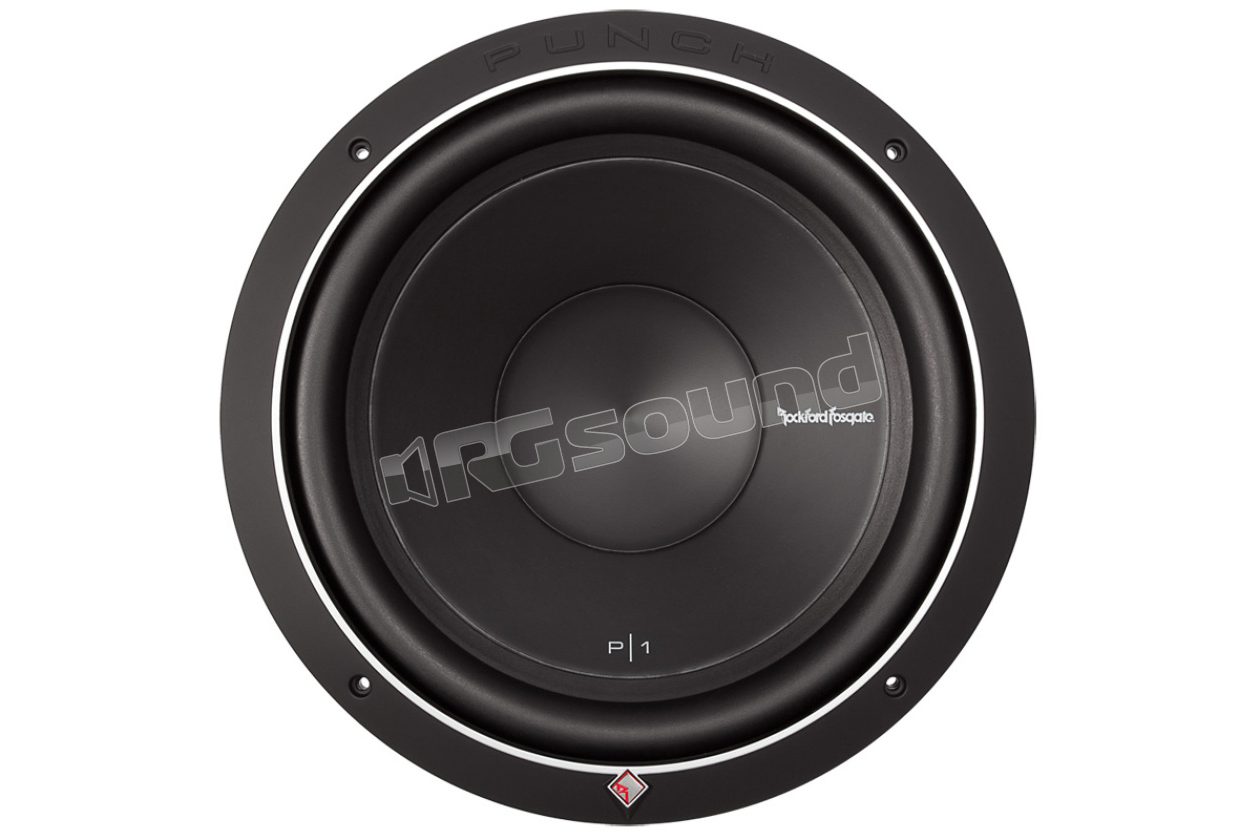

Rockford Fosgate P1S8-12 Subwoofer 30 cm - Punch P1 Series

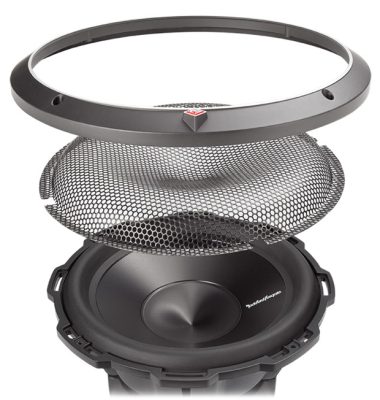

Rockford Fosgate P1S8-12 is the first in the "Punch" subwoofer family. Equipped with an 8 Ohm voice coil structure, power handling of 250 Watts RMS, and can accommodate a grille insert using the included soft ABS coated Touch Ring.

Cone of paper reinforced by Kevlar fiber and with explosive bass impact.

The Rockford VAST technology increases the cone surface area by up to 25%

Rockford Fosgate was founded by Jim Fosgate in 1973 with the idea of creating an amplifier dedicated to low impedances. The technical innovations developed during the creation of amplifiers were also used in the realization of exclusive speakers optimized for perfect acoustics. Thanks to these important innovations, Rockford established itself worldwide, initiating its global expansion.

Today Rockford Fosgate represents one of the most well-known brands in the Hi-fi sector (car and marine) and is a guarantee of decidedly high quality standards. RGsound is the official dealer for Italy, every product bearing the Rockford Fosgate brand purchased on the RGsound.it website enjoys the Italian two-year warranty from the moment of purchase.

P1S8-12 Specifications

Size: 12"
Nominal Impedance: 8-Ohm
Power Handling (Watts RMS): 250 Watts RMS
500 Watts Max
Voice Coil Diameter: 2.0" (51.6mm)
Magnet Weight (oz): 45 oz.
1.28 kg.
Speaker Connector: Dual 10 AWG compression
Fs (Hz): 25
Re (Ohms): 3.60
Le (mH): 3.0
Qms: 3.40
Qes: 0.56
Qts: 0.48
Vas (Liters): 88.3
Sd (cm2): 548
SPL (dB @ 1w/1m): 86
Xmax (mm): 9.4
Woofer Displacement (in): 0.113 cu. ft.
(3.2 Liters)
Cutout Diameter (in): 11.22 in.
(285 mm)
Mounting Depth (in): 6.0 in.
(152.4 mm)
Shipping Weight: 11.7 Lbs.
(5.3 kg)

Scheda tecnica

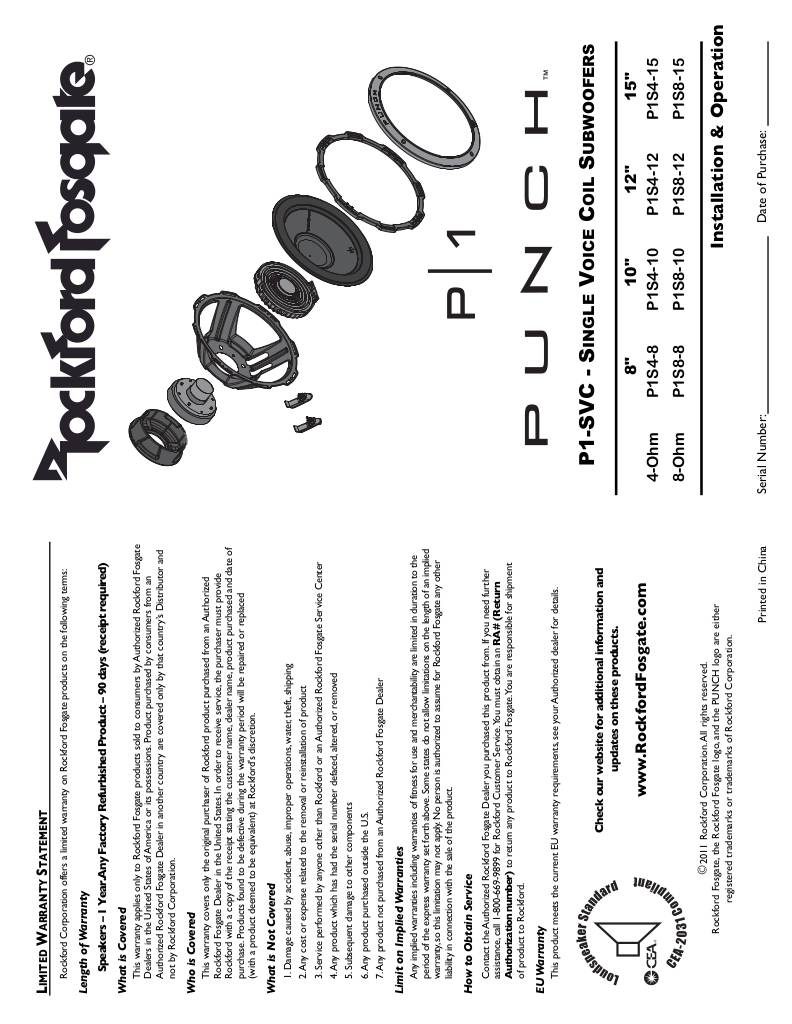

20130411170055-4020119-0-p1subs-man-rev2.pdf
