P1S8-10 Punch P1 Series

Rockford Fosgate

Discontinued

Your price:
€ 107,90
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
250 mm
MAX Power
500 Watt
RMS Power
250 Watt
Frequency Response
23 ÷ 250 Hertz
Sensitivity
84 dB
Impedance
8 Ohm
Weight
4,9 Kg
Installation Depth
153 mm
Woofer Material
Cellulosa con rinforzo Kevlar

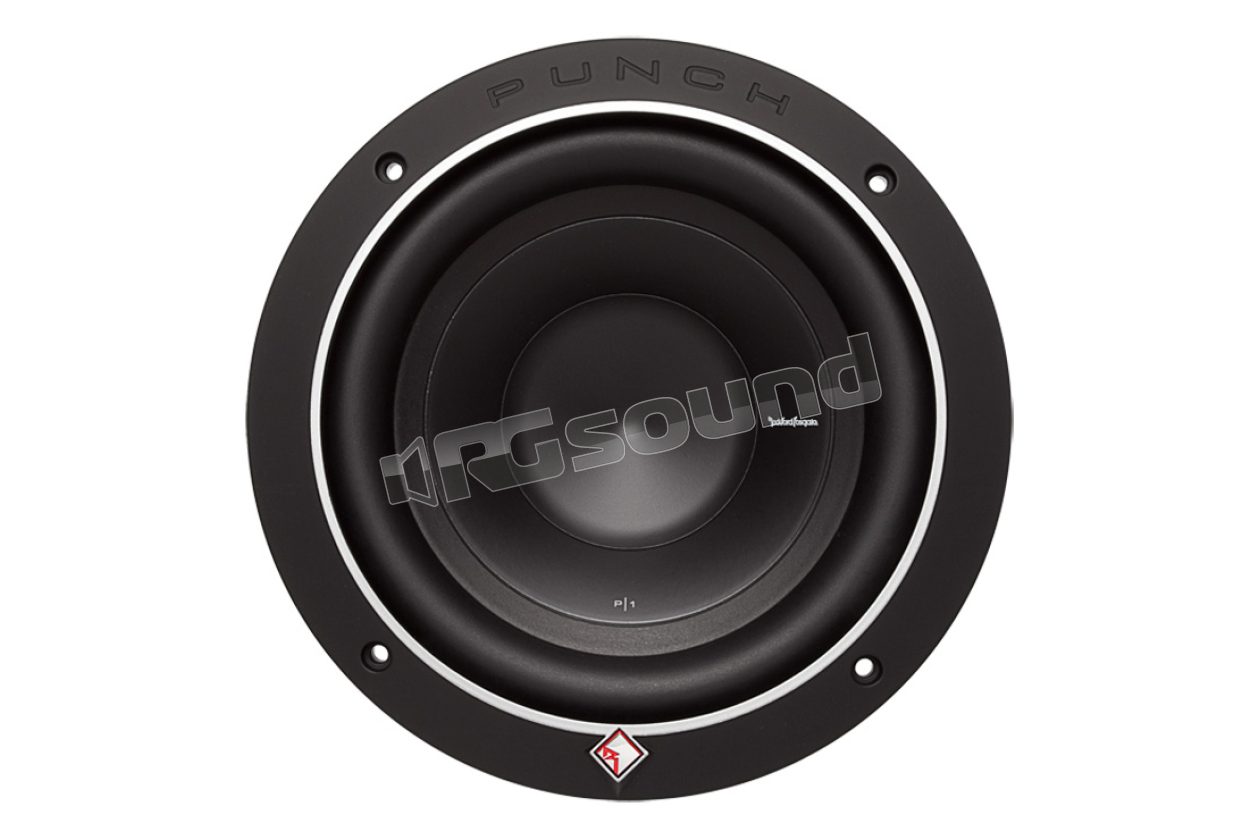

Rockford Fosgate P1S8-10 Subwoofer 25 cm - Punch P1 Series

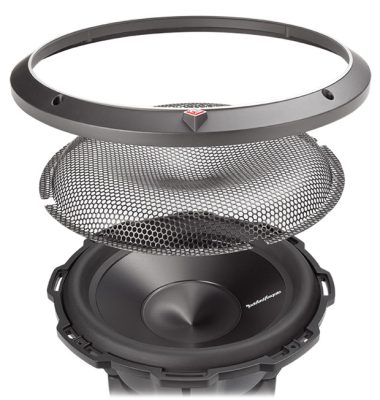

Rockford Fosgate P1S8-10 is the first in the "Punch" subwoofer family. Equipped with an 8 Ohm voice coil structure, power handling of 250 Watts RMS, and can accommodate a grille insert using the included soft ABS Touch Ring coating.

Cone of paper reinforced by Kevlar fiber and with explosive bass impact.

The Rockford VAST technology increases the surface area of the outer cone by up to 25%

P1S8-10 Specifications

Size: 10"
Nominal Impedance: 8-Ohm
Power Handling (Watts RMS): 250 Watts RMS
500 Watts Max
Voice Coil Diameter: 2.0" (51.6 mm)
Magnet Weight (oz): 45 oz.
1.28 kg.
Speaker Connector: Dual 10 AWG compression
Fs (Hz): 30
Re (Ohms): 3.60
Le (mH): 2.8
Qms: 3.00
Qes: 0.61
Qts: 0.51
Vas (Liters): 40
Sd (cm2): 370
SPL (dB @ 1w/1m): 85
Xmax (mm): 9.4
Woofer Displacement (in): 0.085 cu. ft.
(2.4 Liters)
Cutout Diameter (in): 9.14 in.
(232 mm)
Mounting Depth (in): 5.33 in.
(135.4 mm)
Shipping Weight: 10.9 Lbs.
(4.94 kg)

Scheda tecnica

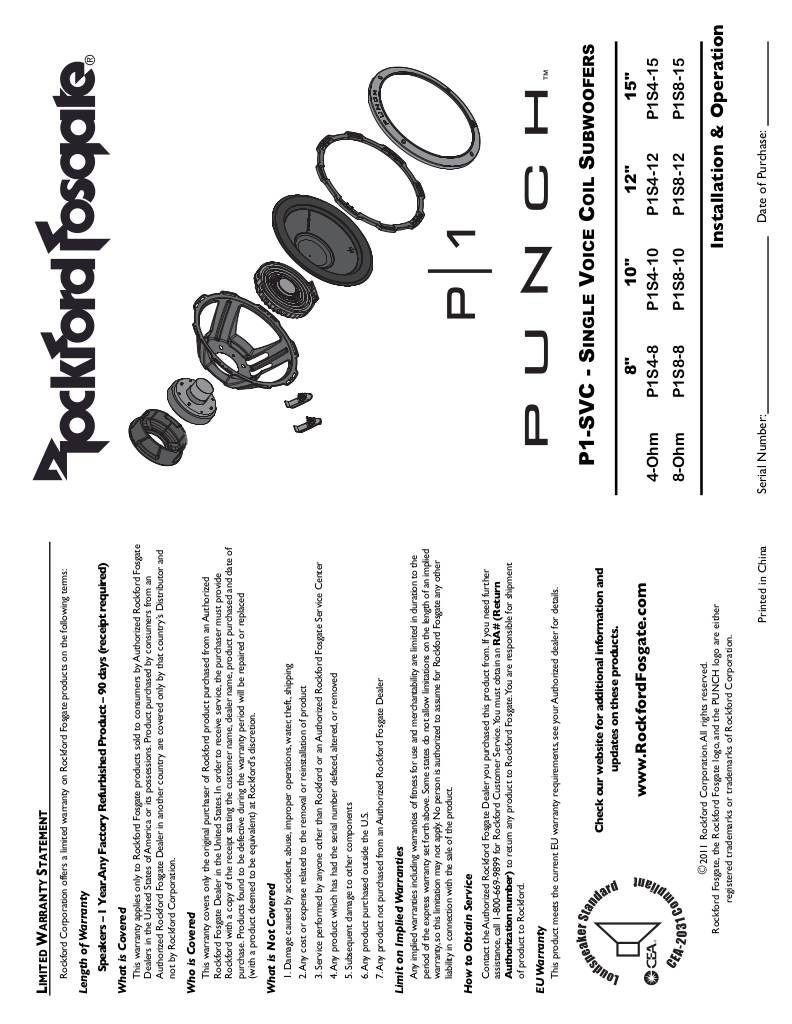

20130411170055-4020119-0-p1subs-man-rev2.pdf
