P1S4-8 Punch P1 Series

Rockford Fosgate

Discontinued

Your price:
€ 109,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
200 mm
MAX Power
400 Watt
RMS Power
200 Watt
Frequency Response
30 ÷ 250 Hertz
Sensitivity
83,5 dB
Impedance
4 Ohm
Installation Depth
111 mm
Woofer Material
Cellulosa con rinforzo Kevlar

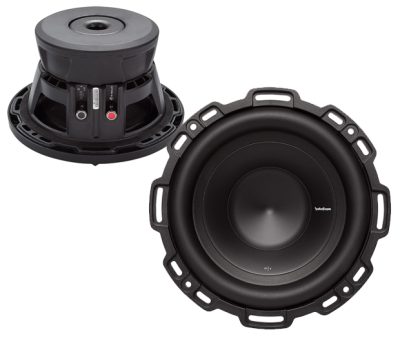

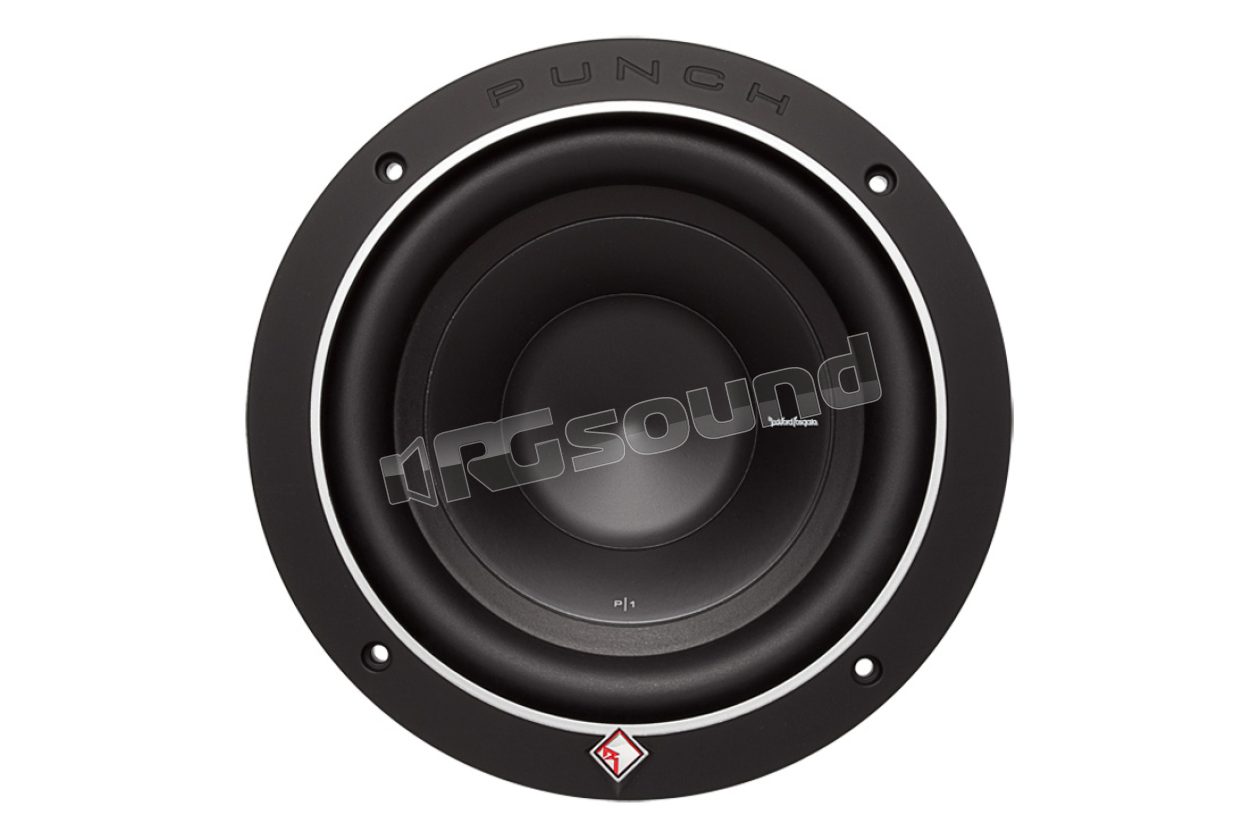

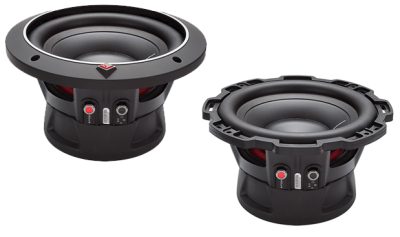

Rockford Fosgate P1S4-8 20 cm Subwoofer - Punch P1 Series

Rockford Fosgate P1S4-8 "is the first in the family of subwoofers " Punch ".Equipped with a 4 Ohm voice coil structure, 200 Watt RMS power handling, and can accommodate a grille insert using the included soft ABS coated Touch Ring.

Cone of paper reinforced by Kevlar fiber and with powerful bass impact.

The Rockford VAST technology increases the surface area of the outer cone up to 25%

Rockford Fosgate was founded by Jim Fosgate in 1973 with the idea of creating an amplifier dedicated to low impedances. The technical innovations developed during the creation of amplifiers were also used in the creation of exclusive speakers optimized for perfect acoustics. Thanks to these important innovations, Rockford established itself throughout the world, starting its global expansion.

Today Rockford Fosgate represents one of the most well-known brands in the Hi-fi sector (car and marine) and is a guarantee of decidedly high quality standards. RGsound is the official dealer for Italy, every product branded Rockford Fosgate purchased on the RGsound.it website enjoys the Italian warranty of two years from the moment of purchase.

P1S4-8 Specifications

Nominal Impedance: 4-Ohm
Power Handling (Watts RMS): 200 Watts RMS
400 Watts Max
Voice Coil Diameter: 2.0"
(51.6 mm)
Magnet Weight (oz): 38oz.
(1.06 kg)
Speaker Connector: Dual 10 AWG compression
Fs (Hz): 39
Re (Ohms): 3.75
Le (mH): 3.0
Qms: 4.00
Qes: 0.53
Qts: 0.47
Vas (Liters): 12
Sd (cm2): 211
SPL (dB @ 1w/1m): 83.5
Xmax (mm): 7.6
Woofer Displacement (in): 0.053 cu. ft.
(1.5 Liters)
Cutout Diameter (in): 7.13 in.
(181 mm)
Mounting Depth (in): 4.39 in.
(111.4 mm)

Price incl. VAT
€ 27,00

Scheda tecnica

20130411170055-4020119-0-p1subs-man-rev2.pdf
