P1S4-15 Punch P1 Series

Rockford Fosgate
Your price:
€ 187,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
380 mm
MAX Power
500 Watt
RMS Power
250 Watt
Frequency Response
18 ÷ 250 Hertz
Sensitivity
87 dB
Impedance
4 Ohm
Weight
7,4 Kg
Installation Depth
177 mm
Woofer Material
Cellulosa con rinforzo Kevlar

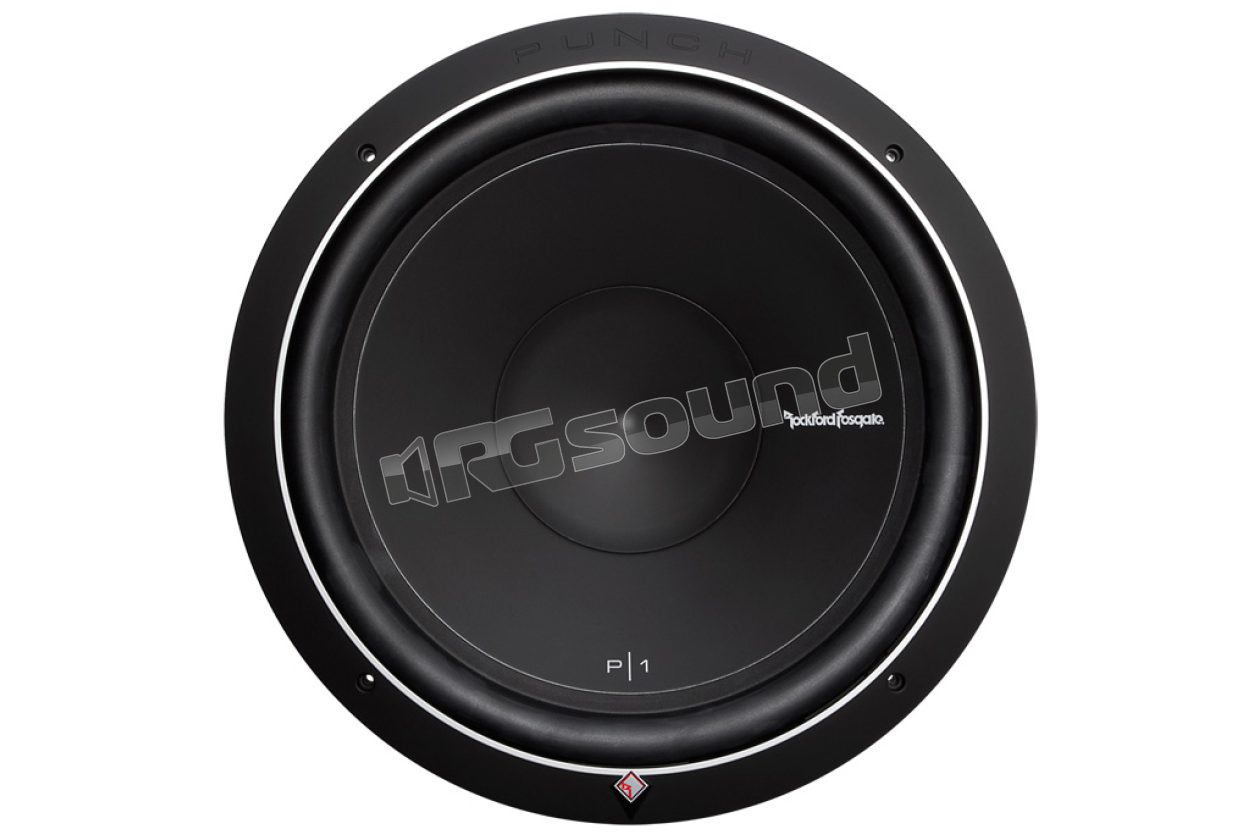

Rockford Fosgate P1S4-15 subwoofer 38 cm from the Punch P1 Series

Rockford Fosgate P1S4-15 is a subwoofer from the Punch P1 family and is equipped with a 4 Ohm voice coil, rated power handling 250 Watts, maximum power 500 Watts.

Reinforced paper cone with Kevlar fiber for a powerful bass impact.

Rockford VAST technology increases the surface area of the outer cone of the P1S4-15 by up to 25%.

Rockford Fosgate was founded by Jim Fosgate in 1973 with the idea of creating a dedicated amplifier for low impedances. The technical innovations developed during the creation of amplifiers were also used in the realization of exclusive speakers optimized for perfect acoustics. Thanks to these important innovations, Rockford has established itself worldwide, initiating its global expansion.

Today, Rockford Fosgate represents one of the most well-known brands in the Hi-fi sector (car and marine) and is a guarantee of decidedly high quality standards. RGsound is the official dealer for Italy, every product branded Rockford Fosgate purchased on the RGsound.it website enjoys the Italian warranty of two years from the date of purchase.

P1S4-15 Specifications

Size: 15"
Nominal Impedance: 4-Ohm
Power Handling (Watts RMS): 250 Watts RMS
500 Watts Max
Voice Coil Diameter: 2.0"
(5.16cm)
Magnet Weight (oz): 60 oz.
1.70 kg.
Speaker Connector: Dual 10 AWG compression
Fs (Hz): 23
Re (Ohms): 3.60
Le (mH): 3.1
Qms: 3.20
Qes: 0.62
Qts: 0.52
Vas (Liters): 191.5
Sd (cm2): 876
SPL (dB @ 1w/1m): 87.5
Xmax (mm): 9.4
Woofer Displacement (in): 0.191 cu. ft.
(5.4 Liters)
Cutout Diameter (in): 13.85 in.
(351.8 mm)
Mounting Depth (in): 6.98 in.
(177.2 mm)
Shipping Weight: 16.3 Lbs.
(7.39 kg)

Price incl. VAT
€ 37,00

Scheda tecnica

20130411170055-4020119-0-p1subs-man-rev2.pdf
