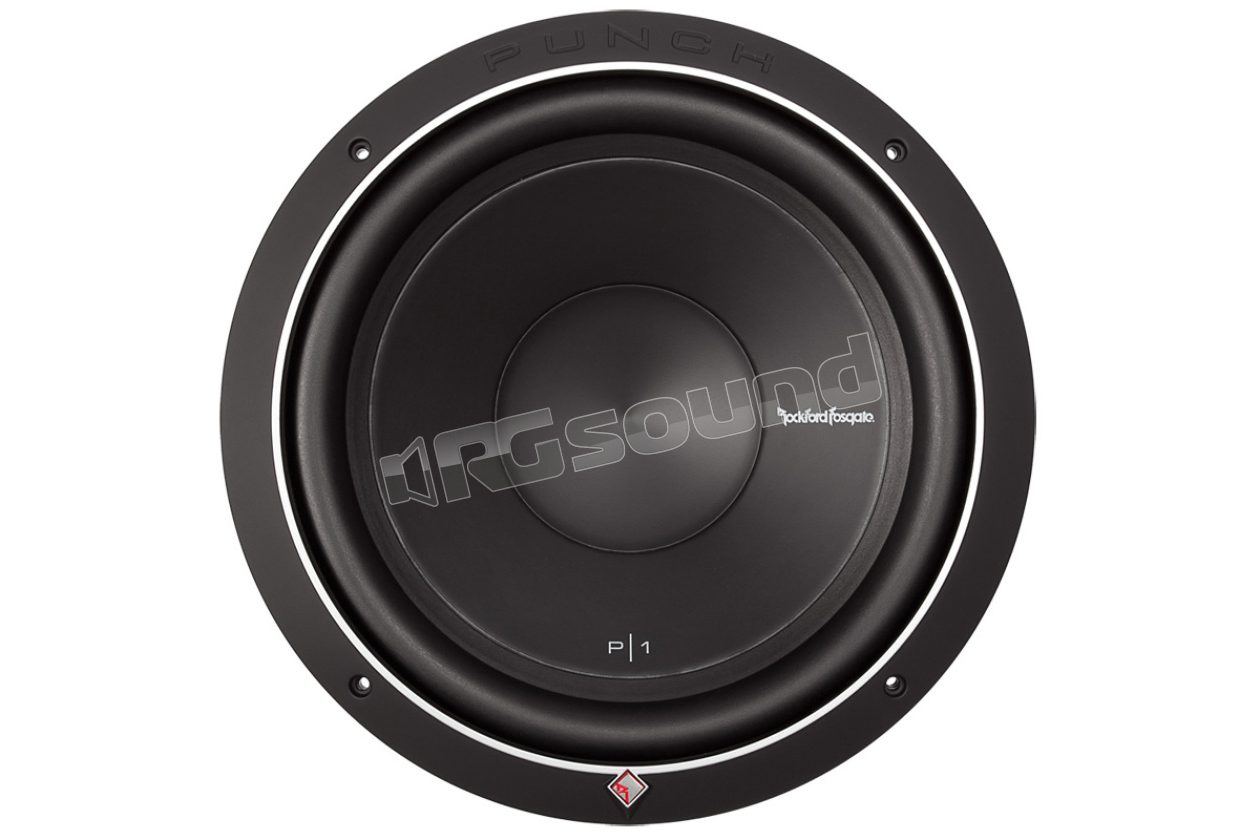

P1S4-12 Punch P1 Series

Rockford Fosgate
Your price:
€ 140,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
300 mm
MAX Power
500 Watt
RMS Power
250 Watt
Frequency Response
20 ÷ 250 Hertz
Sensitivity
86 dB
Impedance
4 Ohm
Weight
5,3 Kg
Installation Depth
152 mm
Woofer Material
Cellulosa con rinforzo Kevlar

Rockford Fosgate P1S4-12 Subwoofer 30 cm - Punch P1 Series

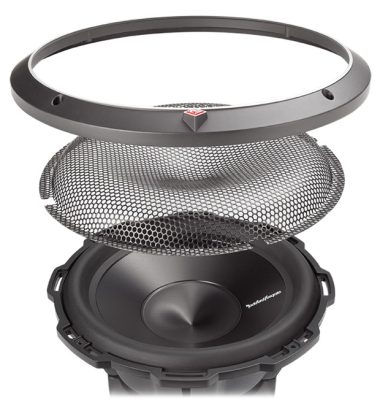

Rockford Fosgate P1S4-12 is the first in the "Punch" family of subwoofers. Equipped with a 4 Ohm voice coil structure, power handling of 250 Watts RMS, and can accommodate a grille insert using the included soft ABS-coated Touch Ring.

Cone of paper reinforced with Kevlar fiber and with impactful bass.

Rockford VAST technology increases the surface area of the outer cone by up to 25%

Rockford Fosgate was founded by Jim Fosgate in 1973 with the idea of creating an amplifier dedicated to low impedances. The technical innovations developed during the creation of amplifiers were also used in the realization of exclusive speakers optimized for perfect acoustics. Thanks to these important innovations, Rockford Fosgate established itself throughout the world, initiating its global expansion.

Today Rockford Fosgate represents one of the most renowned brands in the Hi-fi sector (car and marine) and is a guarantee of decidedly high quality standards. RGsound is the official retailer for Italy, every product branded Rockford Fosgate purchased on the RGsound.it website enjoys a two-year Italian warranty from the time of purchase.

P1S4-12 Specifications

Size: 12"
Nominal Impedance: 4-Ohm
Power Handling (Watts RMS): 250 Watts RMS
500 Watts Max
Voice Coil Diameter: 2.0" (51.6mm)
Magnet Weight (oz): 45 oz.
1.28 kg.
Speaker Connector: Dual 10 AWG compression
Fs (Hz): 25
Re (Ohms): 3.60
Le (mH): 3.0
Qms: 3.40
Qes: 0.56
Qts: 0.48
Vas (Liters): 88.3
Sd (cm2): 548
SPL (dB @ 1w/1m): 86
Xmax (mm): 9.4
Woofer Displacement (in): 0.113 cu. ft.
(3.2 Liters)
Cutout Diameter (in): 11.22 in.
(285 mm)
Mounting Depth (in): 6.0 in.
(152.4 mm)
Shipping Weight: 11.7 Lbs.
(5.3 kg)

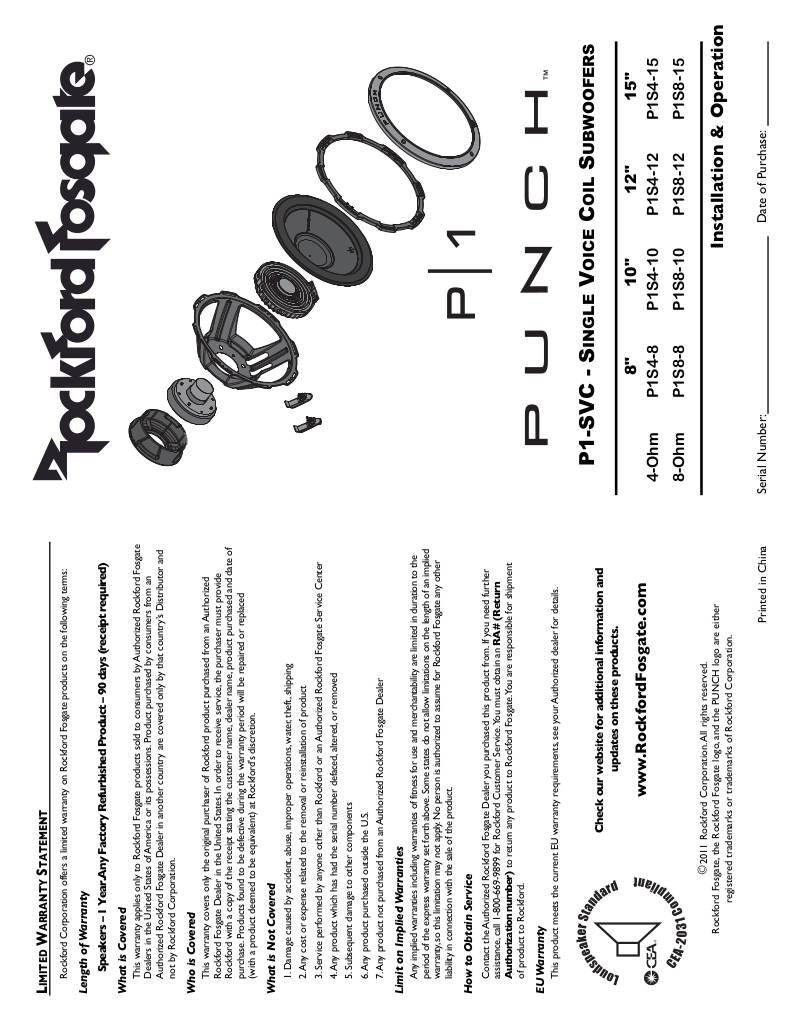

Scheda tecnica

20130411170055-4020119-0-p1subs-man-rev2.pdf
€ 140,00 Price incl. VAT
