P1S4-10 Punch P1 Series

Rockford Fosgate
Your price:
€ 121,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
250 mm
MAX Power
500 Watt
RMS Power
250 Watt
Frequency Response
23 ÷ 250 Hertz
Sensitivity
85 dB
Impedance
4 Ohm
Weight
4,9 Kg
Installation Depth
135 mm
Woofer Material
Cellulosa con rinforzo Kevlar

P1S4-10 Subwoofer 25 cm - Punch P1 Series

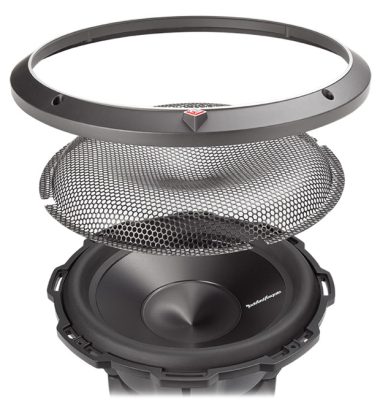

Rockford Fosgate P1S4-10 is the first in the "Punch" subwoofer family. Equipped with a 4 Ohm voice coil structure, rated at 250 Watts RMS, and can accommodate a grille insert using the included soft ABS-coated Touch Ring.

Kevlar fiber-reinforced paper cone with impactful bass response.

Rockford VAST technology increases the outer cone surface by up to 25%

Rockford Fosgate was founded by Jim Fosgate in 1973 with the idea of creating a dedicated amplifier for low impedances. The technical innovations developed during the creation of amplifiers were also used in the creation of exclusive speakers optimized for perfect acoustics. Thanks to these important innovations, Rockford has established itself worldwide, starting its global expansion.

Today Rockford Fosgate represents one of the most well-known brands in the Hi-fi sector (car and marine) and is a guarantee of decidedly high quality standards. RGsound is the official retailer for Italy; every Rockford Fosgate branded product purchased on the RGsound.it website enjoys the Italian two-year warranty from the moment of purchase.

P1S4-10 Specifications

Nominal Impedance: 4-Ohm
Power Handling (Watts RMS): 250 Watts RMS
500 Watts Max
Voice Coil Diameter: 2.0" (51.6 mm)
Magnet Weight (oz): 45 oz.
1.28 kg.
Speaker Connector: Dual 10 AWG compression
Fs (Hz): 30
Re (Ohms): 3.60
Le (mH): 2.8
Qms: 3.00
Qes: 0.61
Qts: 0.51
Vas (Liters): 40
Sd (cm2): 370
SPL (dB @ 1w/1m): 85
Xmax (mm): 9.4
Woofer Displacement (in): 0.085 cu. ft.
(2.4 Liters)
Cutout Diameter (in): 9.14 in.
(232 mm)
Mounting Depth (in): 5.33 in.
(135.4 mm)
Shipping Weight: 10.9 Lbs.
(4.94 kg)

Scheda tecnica

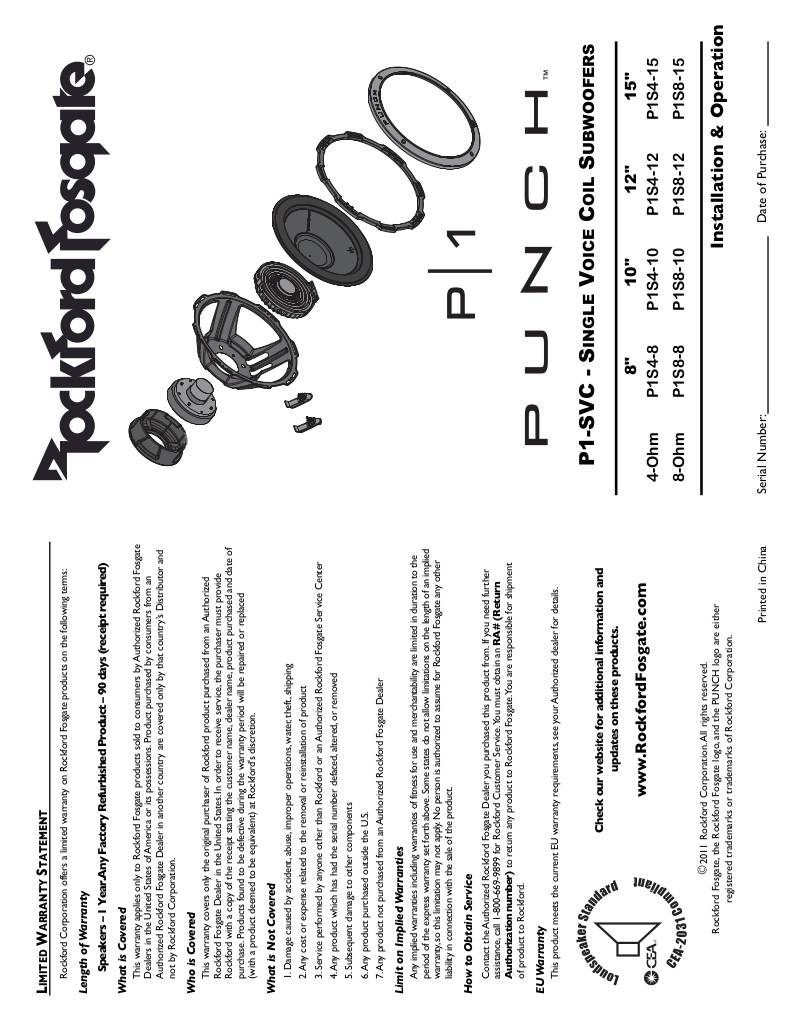

20130411170055-4020119-0-p1subs-man-rev2.pdf
