P1S2-8

Rockford Fosgate

Discontinued

Your price:
€ 109,10
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
200 mm
MAX Power
400 Watt
RMS Power
200 Watt
Sensitivity
84 dB
Impedance
2 Ohm
Weight
4 Kg
Installation Depth
111 mm
Woofer Material
Kevlar

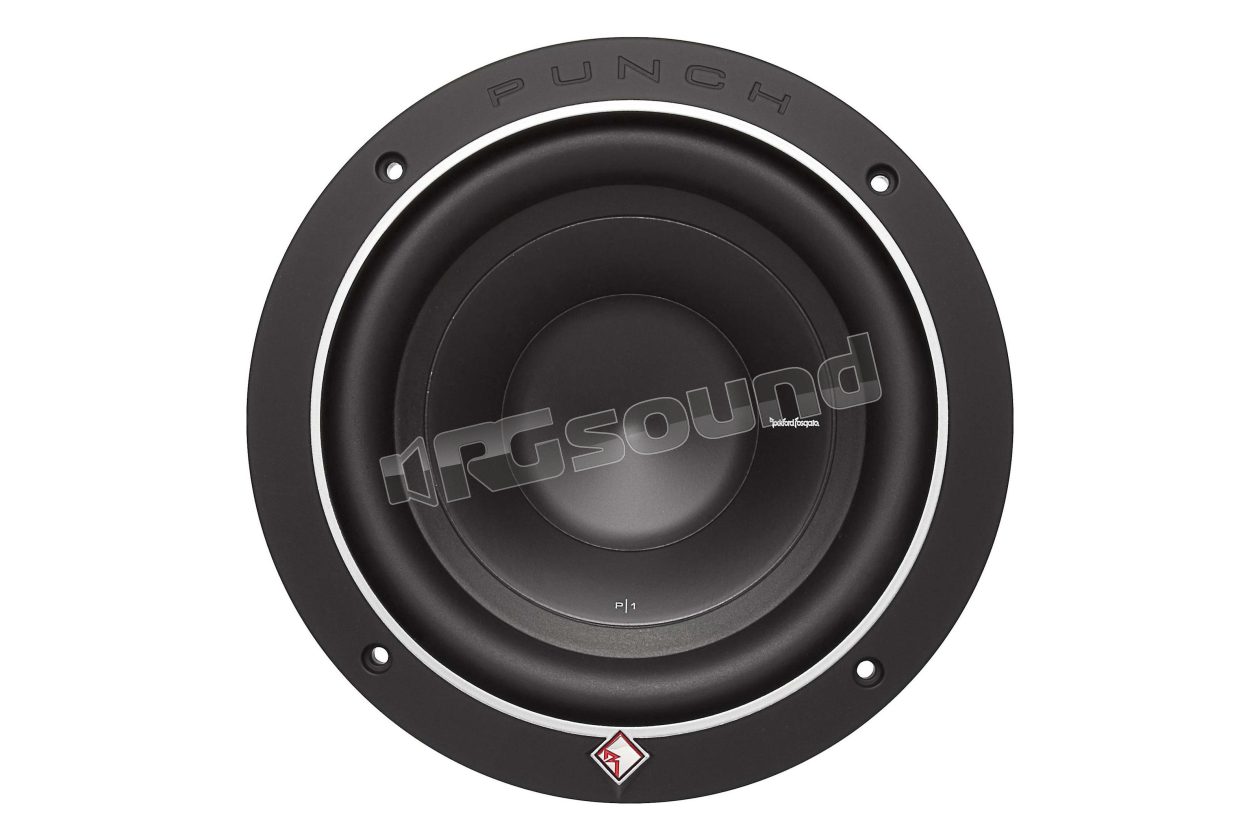

Rockford Fosgate P1S2-8 20 cm Subwoofer - Punch P1 Series

P1S2-8 is a subwoofer from the Punch Series by Rockford Fosgate, which represents one of the most well-known brands in the Hi-fi sector (car and marine) and is a guarantee of decidedly high quality standards. RGsound is the official dealer for Italy, every product branded Rockford Fosgate purchased on the RGsound.it website enjoys the Italian two-year warranty from the moment of purchase.

P1S2-10 Specifications

Speaker Size: 8"

Nominal Impedance: 2 Ohm

Power Handling (Watts RMS): 200 Watts RMS

400 Watts Max

Voice Coil Diameter: 2.0" (51.6 mm)

Magnet Weight (oz): 38 oz. (1.06 kg)

Speaker Connector: Dual 10 AWG compression

Linear spider with embedded 16 AWG tinsel leads

High-temp voice coil with spun-laced Nomex® re-inforcement collar

Kevlar fiber reinforced paper cone

StampCast basket with integrated spider venting

Soft touch ABS trim ring with optional grille

Custom 10-AWG nickel plated push terminals

Extended pole piece and bumped vented backplate

Protective PVC textured magnet cover

Fs (Hz): 40

Re (Ohms): 1.8

Le (mH): 1.16

Qms: 2.88

Qes: 0.48

Qts: 0.54

Vas (Liters): 12

Sd (cm2): 211

SPL (dB @ 1w/1m): 84

Xmax (mm): 8.0

Woofer Displacement (in): 0.035 cu.ft. (1.0 Liters)

Cutout Diameter (in): 7.13 in. (181 mm)

Mounting Depth (in): 4.39 in. (111.4 mm)

Shipping Weight: 9.0 Lbs. (4.08 Kg)

Scheda tecnica

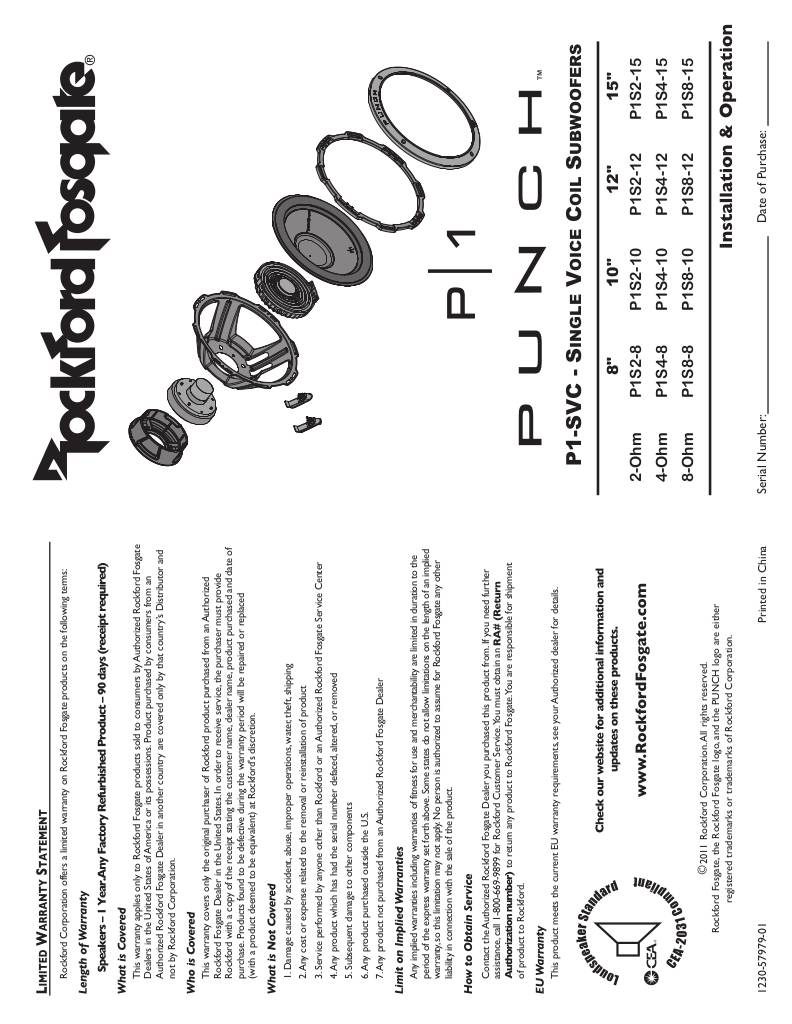

n-20160916164748-4020119-0-punchp1-subs-rev2-man.pdf
