P1S2-10 Punch P1 Series

Rockford Fosgate
Your price:
€ 121,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Subwoofer
Speaker Size
250 mm
MAX Power
500 Watt
RMS Power
250 Watt
Frequency Response
23 -250 Hertz
Sensitivity
85 dB
Impedance
2 Ohm
Weight
5 Kg
Installation Depth
135 mm
Woofer Material
Kevlar

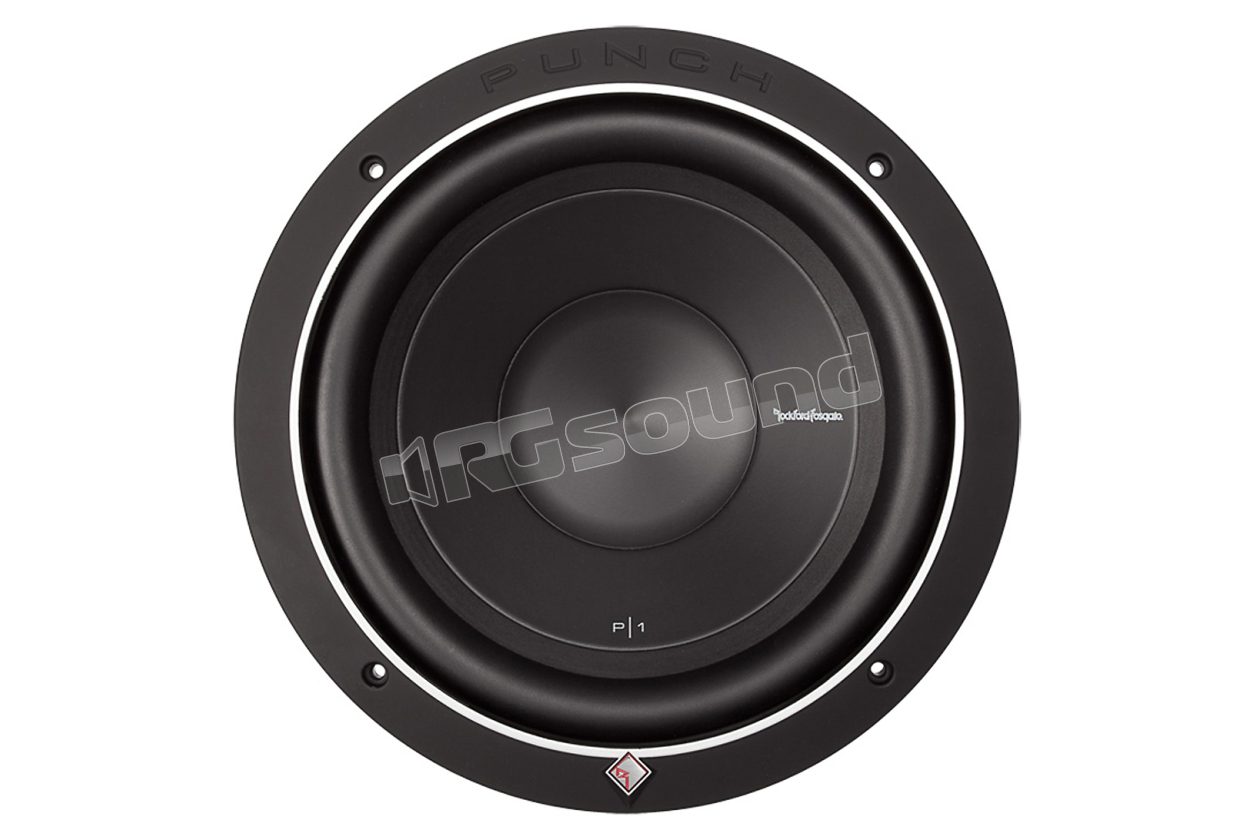

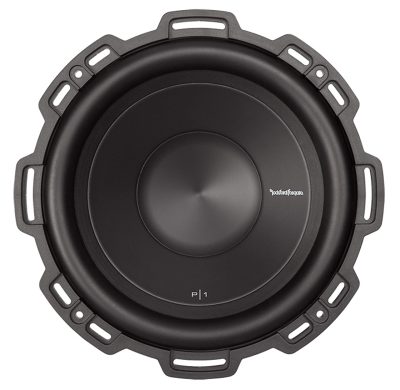

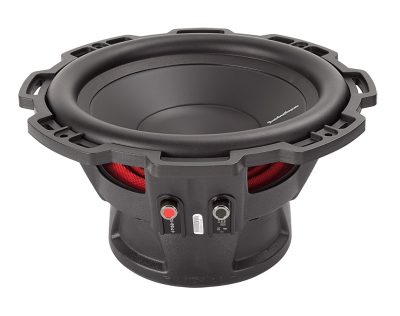

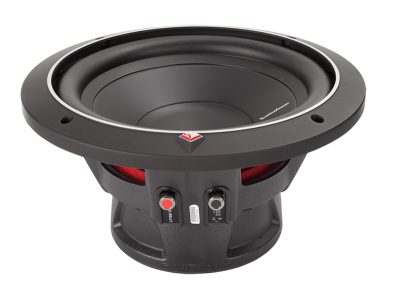

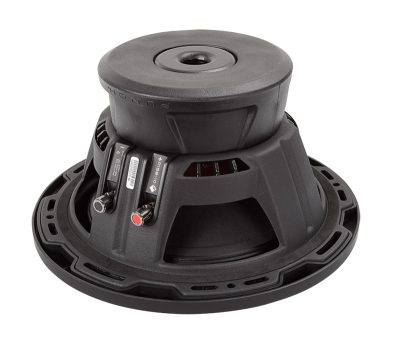

Rockford Fosgate P1S2-10 Subwoofer 25 cm - Punch P1 Series

  • Linear spider with embedded 16 AWG tinsel leads
  • High-temp voice coil with spun-laced Nomex® re-inforcement collar
  • Kevlar fiber reinforced paper cone
  • StampCast basket with integrated spider venting

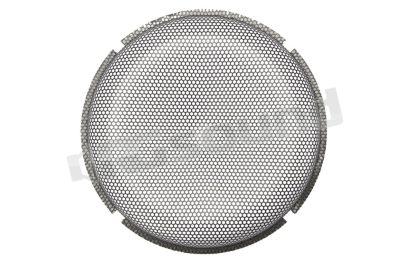

  • Soft touch ABS trim ring with optional grille
  • Custom 10-AWG nickel plated push terminals
  • Extended pole piece and bumped vented backplate
  • Protective PVC textured magnet cover

Rockford Fosgate was founded by Jim Fosgate in 1973 with the idea of creating an amplifier dedicated to low impedances. The technical innovations developed during the creation of amplifiers were also used in the creation of exclusive speakers optimized for perfect acoustics. Thanks to these important innovations, the Rockford company established itself throughout the world, initiating its global expansion.

Today Rockford Fosgate represents one of the best-known brands in the Hi-fi sector (car and marine) and is a guarantee of decidedly high quality standards. RGsound is the official reseller for Italy, every product branded Rockford Fosgate purchased on the RGsound.it website benefits from a two-year Italian warranty from the time of purchase.

P1S2-10 Specifications

Size: 10"
Nominal Impedance: 2-Ohm
Power Handling (Watts RMS): 250 Watts RMS
500 Watts Max
Voice Coil Diameter: 2.0" (51.6 mm)
Magnet Weight (oz): 45 oz. (1.28 kg.)
Speaker Connector: Dual 10 AWG compression
Fs (Hz): 30
Re (Ohms): 1.60
Le (mH): 1.16
Qms: 2.70
Qes: 0.75
Qts: 0.52
Vas (Liters): 1.4
Sd (cm2): 370
SPL (dB @ 1w/1m): 85
Xmax (mm): 9.0
Woofer Displacement (in): 0.13 cu.ft. (3.6 Liters)
Cutout Diameter (in): 9.14 in. (232 mm)
Mounting Depth (in): 5.33 in. (135.4 mm)
Shipping Weight: 11.1 Lbs. (5.03 kg)

Price incl. VAT
€ 27,00

Scheda tecnica

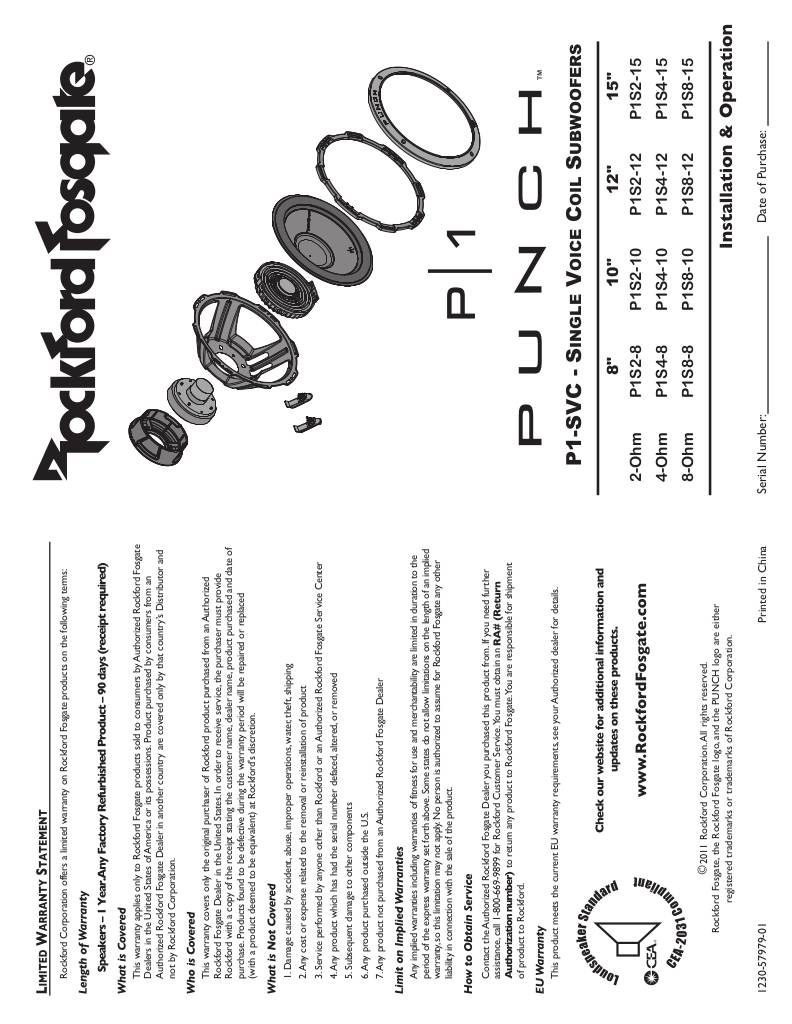

20131025115932-4020119-0-punchp1-subs-rev2-man.pdf
€ 121,00 Price incl. VAT
