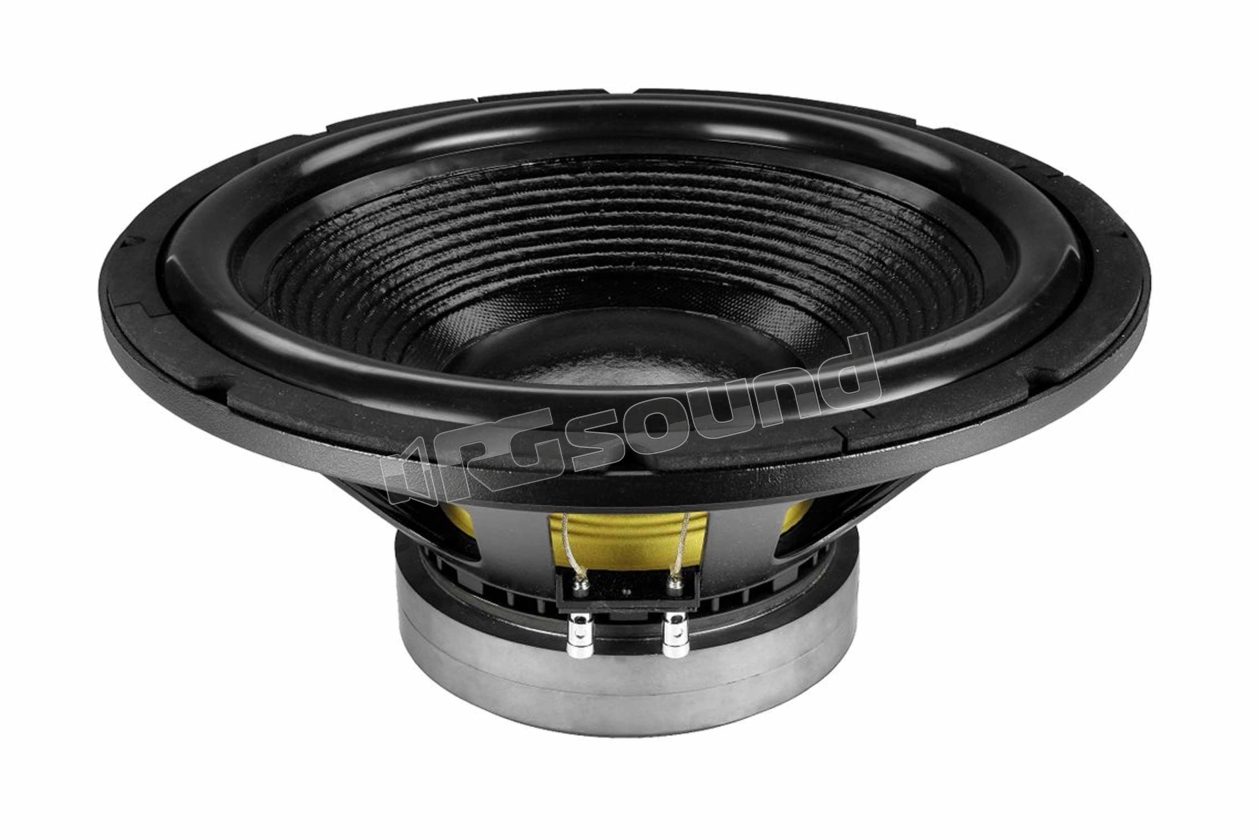

P18.00SW-4

Ciare
Your price:
€ 384,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
460 mm
MAX Power
2.000 Watt
RMS Power
1.000 Watt
Sensitivity
93 dB
Impedance
4 Ohm
Installation Depth
183 mm
Woofer Material
Cellulosa trattata

Ciare P18.00SW-4 45cm subwoofer with 4 Ohm impedance, sensitivity of 93 dB, with 100 mm (4") sandwich voice coil and 1000 W nominal power

Rubber surround
Dual magnet design
Dual Nomex spider
Die-cast aluminum basket
Ceramic magnet type
Cone material: treated cellulose
Kapton former
Copper voice coil
Push connectors
Gap height 10 mm
Suitable for ultra-low distortion subwoofer design
Maximum power (W) 2000
AES nominal power (W) 1000
Nominal diameter 18" - 450 mm
Nominal impedance (Ohm) 8
Voice coil diameter (mm) 100
Sensitivity 1W / 1m (dB) 93

Ciare P18.00SW-4 technical specifications

Overall diameter 460 mm
Total depth 183 mm
Flange thickness 27 mm
Front baffle cutout mounted diameter 416 mm
Number of mounting holes 8
Mounting hole diameter (mm) 7 mm
Diameter of the circle 440 mm
Gross weight 15.7 Kg

Re 3.3 ohm
Fs 36 Hz
Qms 6.6
Qes 0.7
Qts 0.61
Mms 375 g
D 37.5 mm
Vas 94 l
BxL 20 Tm
Linear Mathematical Xmax 14 mm
n 0.63
Le (1kHz) 2.7 mH

Recommended sealed enclosure:
Loading volume 100 l
Tuning frequency
Frequency range 20 - 200 Hz

€ 384,00 Price incl. VAT
