P15.00SW-4

Ciare
Your price:
€ 291,84
instead of:€ 304,00
You save € 12,16
Offer valid until 29/11/2026
Price per single item (VAT included)
Black Friday: offers valid until 29 November
Calculating shipping costs to
Type
Subwoofer
Speaker Size
380 mm
MAX Power
2.000 Watt
RMS Power
1.000 Watt
Sensitivity
93 dB
Impedance
4 Ohm
Installation Depth
154 mm
Woofer Material
Cellulosa trattata

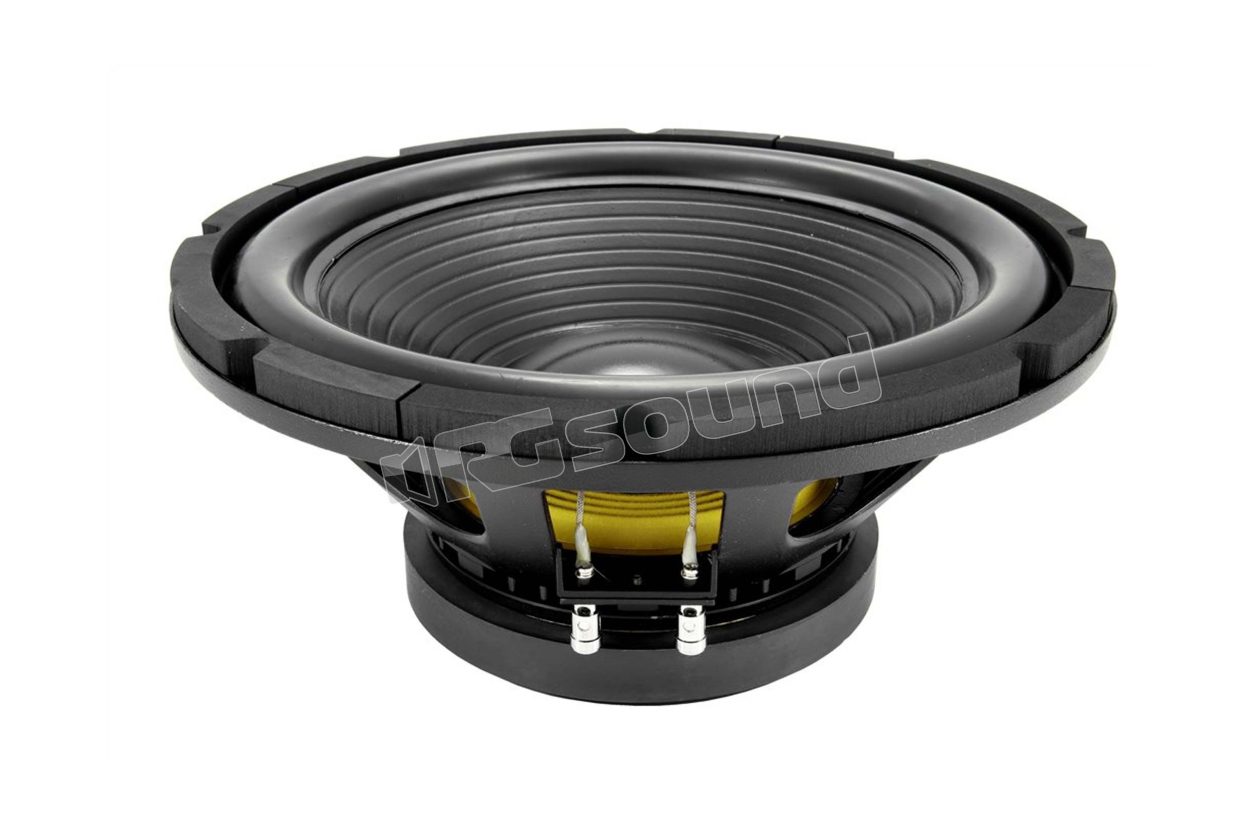

Ciare P15.00SW-4 subwoofer 380 mm (15"), with impedance 4 Ohm, sensitivity 93 dB, treated cellulose cone, aluminum die-cast basket and ceramic magnet

Maximum power (W) 2000
AES nominal power (W) 1000
Nominal diameter 15" - 380 mm
Nominal impedance (Ohm) 4 Ohm
Voice coil diameter (mm) 100
Sensitivity 1W / 1m (dB) 93

Double Nomex spider
Kapton former
Copper coil
Push connectors
Gap height 10 mm

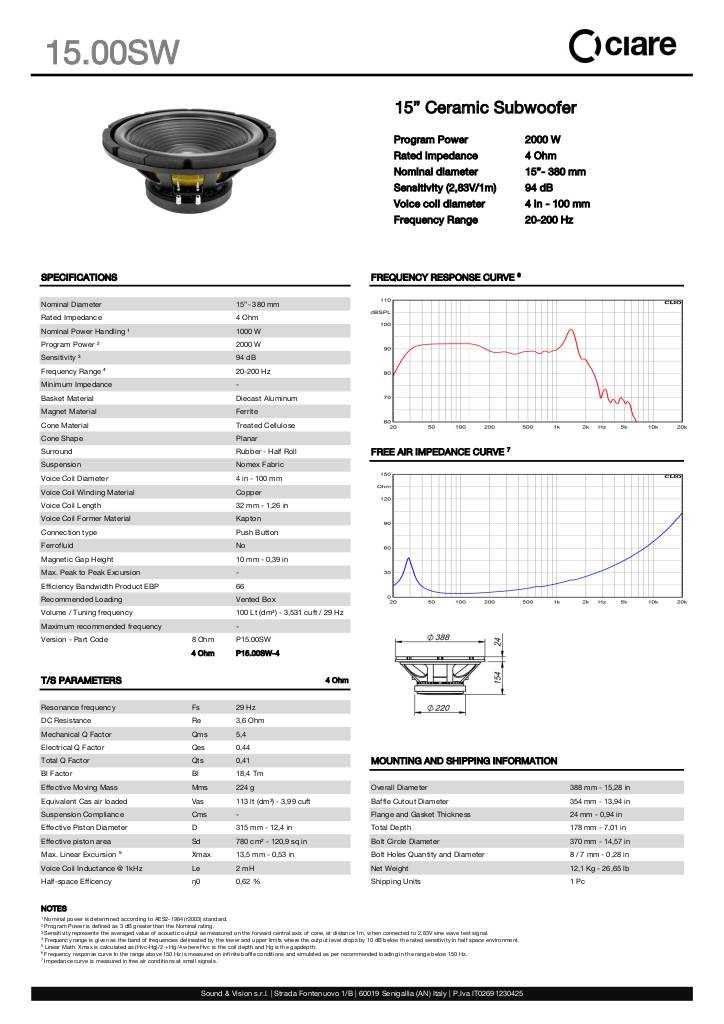

Scheda tecnica

n-20250411125943-ciare-15-00sw-4-en.pdf

Ciare 15.00SW technical specifications

Overall diameter 390 mm
Total depth 154 mm
Flange thickness 24 mm
Front deflector cutout mounted diameter 354 mm
Number of mounting holes 8
Mounting hole diameter (mm) 7 mm
Bolt circle diameter 370 mm
Gross weight 12.1 Kg
Re 3.6 ohm
Fs 29 Hz
Qms 5.4
Qes 0.44
Qts 0.41
Mms 224 g
D 31 mm
Vas 113 l
BxL 18.4 Tm
Linear Mathematical Xmax 13.5 mm
n 0.62
Le (1kHz) 2 mH

Recommended Bass Reflex enclosure
Loading volume 100 l
Tuning frequency 29 Hz
Frequency range 20 - 200 Hz
