P12.00SW

Ciare
Your price:
€ 270,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
320 mm
MAX Power
2.000 Watt
RMS Power
1.000 Watt
Sensitivity
90 dB
Impedance
8 Ohm
Installation Depth
130 mm
Voice Coil Diameter
100 mm

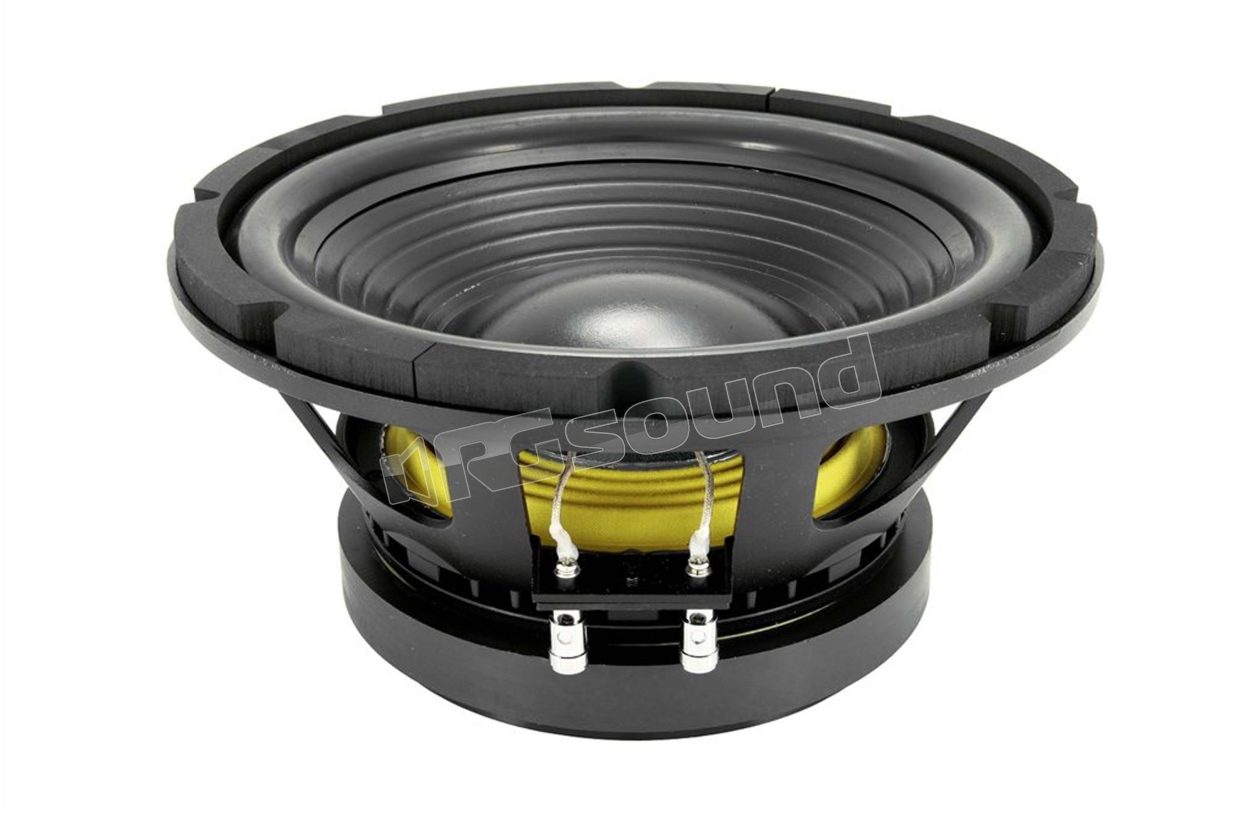

Ciare P12.00SW subwoofer 32 cm, impedance 8 Ohm, with a sensitivity of 90 dB

Sensitivity of 90 dB 1W / 1m

100 mm (4 inches) sandwich voice coil

1000 AES Power Handling

Rubber surround

Double Spider technology

Die-cast aluminum basket

Suitable for very low distortion subwoofer design

Die-cast aluminum basket

Ferrite magnet

Treated cellulose cone

Rubber suspension, Half-roll

Double Centerer

Kapton Former

Copper coil

Push-Button connectors

Air gap height 10 mm

Musical Power (W) 2000

Nominal AES Power (W) 1000

Nominal diameter (''/mm) 12 / 320

Nominal impedance (Ohm) 8

Mobile coil (mm) 100

Sensitivity 1W/1m (dB) 90

Ciare P12.00SW technical specifications

External diameter 315 mm (12.4 in)

Depth under flange 130 mm (5.1 in)

Flange thickness 19 mm (0.75 in)

Panel hole 282 mm (11.1 in)

Number of mounting holes 8

Mounting hole diameter 7 mm (0.27 in)

Mounting hole position diameter 296 mm (11.7 in)

Weight with single packaging 11.1 kg (24.5 lb)

Re 6.7 ohm

Fs 30 Hz

Qms 6.1

Qes 0.36

Qts 0.34

Mms 183 g

D 258 mm

Vas 59 l

BxL 25.3 Tm

Linear Mathematical Xmax 14 mm

n 0.45

Le (1kHz) 2.35 mH

Recommended enclosure type: Bass Reflex

Recommended reflex volume 40 l

Recommended tuning freq 33 Hz

Frequency range of use 20 -200

€ 270,00 Price incl. VAT
