P 62C 2-way speaker system with grilles included

Helix

Discontinued

Your price:
€ 375,00
Price per single item (VAT included)
Type
2-way separate kit
Frequency Response
40 - 25.000 Hertz
Woofer Size
165 mm
Tweeter Size
50 millimetri
MAX Power
200 Watt
RMS Power
100 Watt
Sensitivity
90 dB
Impedance
4 Ohm
Woofer Material
Fibra di vetro
Tweeter Material
Cupola in seta

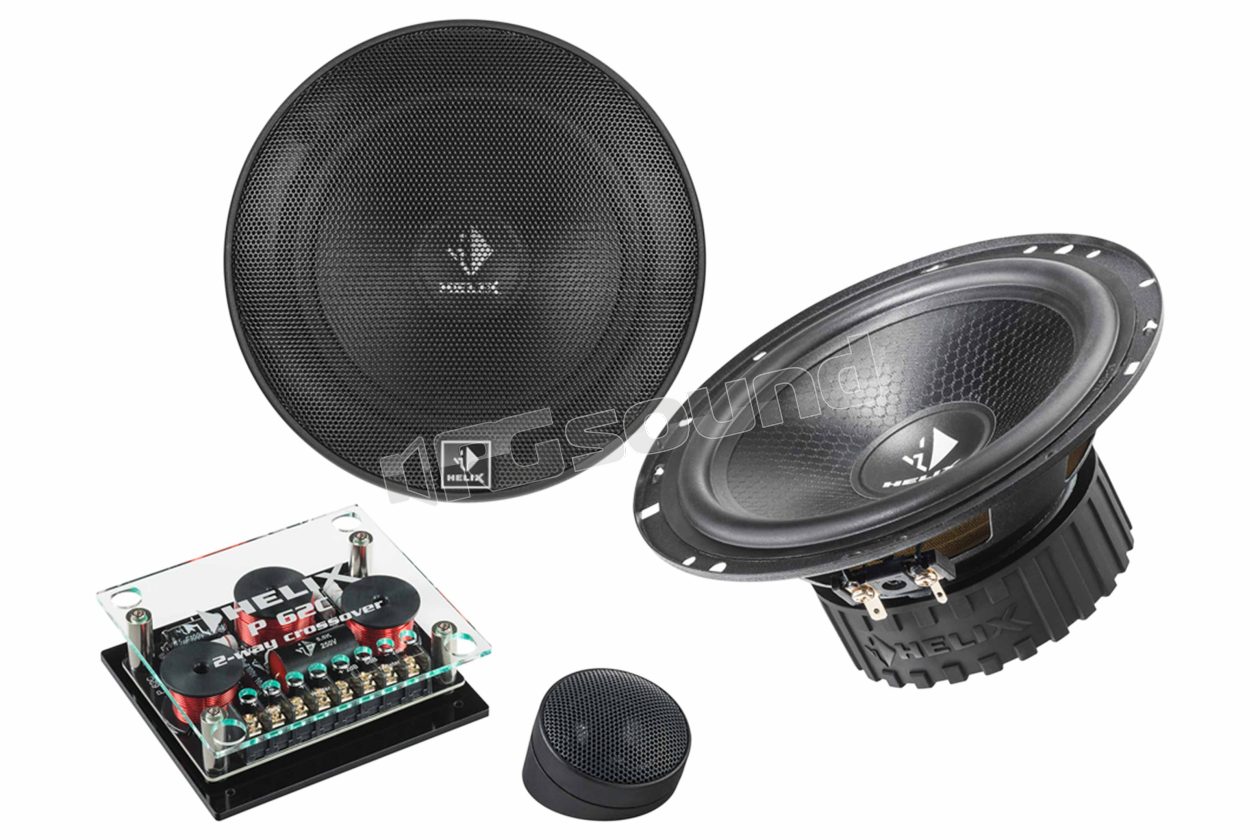

Helix P 62C two-way speaker kit composed of a pair of 165mm woofers, pair of 25 mm tweeters, dedicated crossovers and grilles included in the package

6.5" / 165 mm woofer with new fiberglass cone for maximum rigidity combined with the lowest moving mass and perfect internal damping.

1" / 25 mm tweeter with hand-coated silk dome for natural and balanced sound reproduction and minimal compression effects.

Complex crossover network with impedance compensation, band-stop filter and tweeter level adjustment; equipped exclusively with high quality components.

Zero distortion air coils with lowest DC resistance.

Low inductance metal film resistors.

Audiotec thin film capacitors with minimal losses for tweeter crossovers.

Gold plated terminals.

Grilles included.

Helix P 62C technical specifications

RMS / max power 100/200 Watt

Frequency response 40 Hz - 25,000 Hz

Impedance 4 Ω

Efficiency 1 W / 1 m 90 dB

Tweeter material silk coated

Woofer material fiberglass

Crossover 6/12 dB with impedance compensation and tweeter level adjustment

Tweeter external diameter 58 mm / 2.28"

Woofer diameter 165.5 mm / 6.52"

Tweeter installation diameter 49.3 mm / 1.95"

Woofer installation diameter 142 mm / 5.60"

TW installation depth: 15 mm / 0.60"

Woofer installation depth 67 mm / 2.64"

Discontinued
