P 10W

Helix

Discontinued

Your price:
€ 189,10
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
250 mm
MAX Power
600 Watt
RMS Power
300 Watt
Frequency Response
31 Hertz
Sensitivity
87 dB
Impedance
4 Ohm
Installation Depth
128 mm

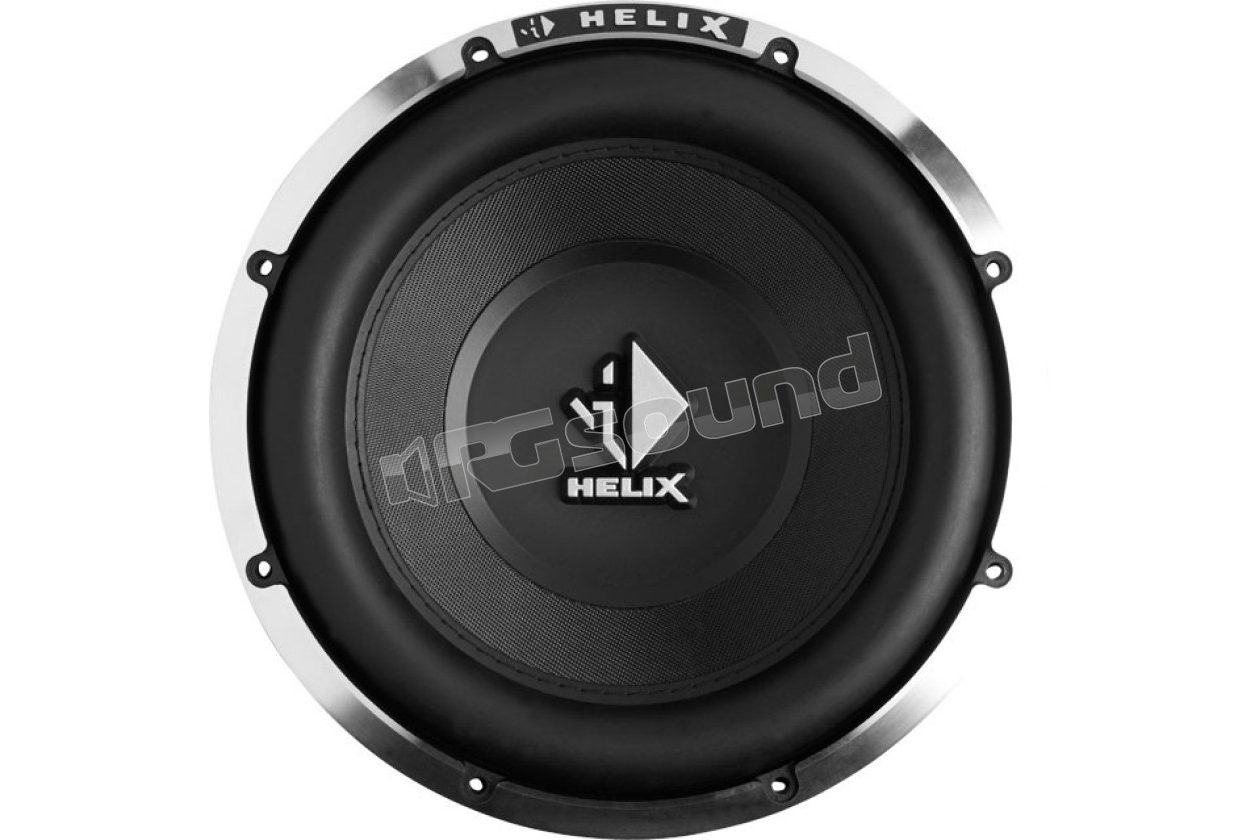

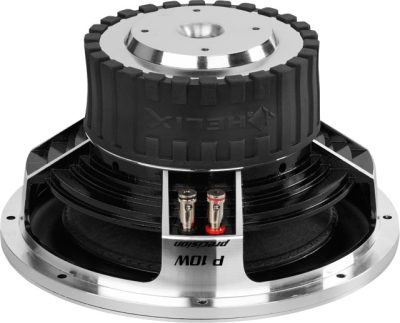

Helix P 10W subwoofer with die-cast aluminum basket, rubber suspension, glued and then stitched to the cone, which is made of a mix of cellulose fibers and kevlar to withstand even the strongest impulses without deformation.

Oversized voice coils for maximum electrical power handling and high linear excursion. Large magnetic system for a low Qts, ideal for a compact bass-reflex enclosure. Solid screw terminals.

P 10W Features:

Max Power: 700 Watt
RMS Power: 350 Watt
Nominal Impedance: 4 Ohm
Sensitivity: 87 dB (1w / 1 m)
Resonance Frequency: 31 Hz
Qms 2.97
Qes 0.37
Qts 0.33
VAS 42.5 Liters
Linear Excursion + / - 8 mm
External Diameter: 260 mm
Installation Hole: 236 mm
Depth: 128 mm

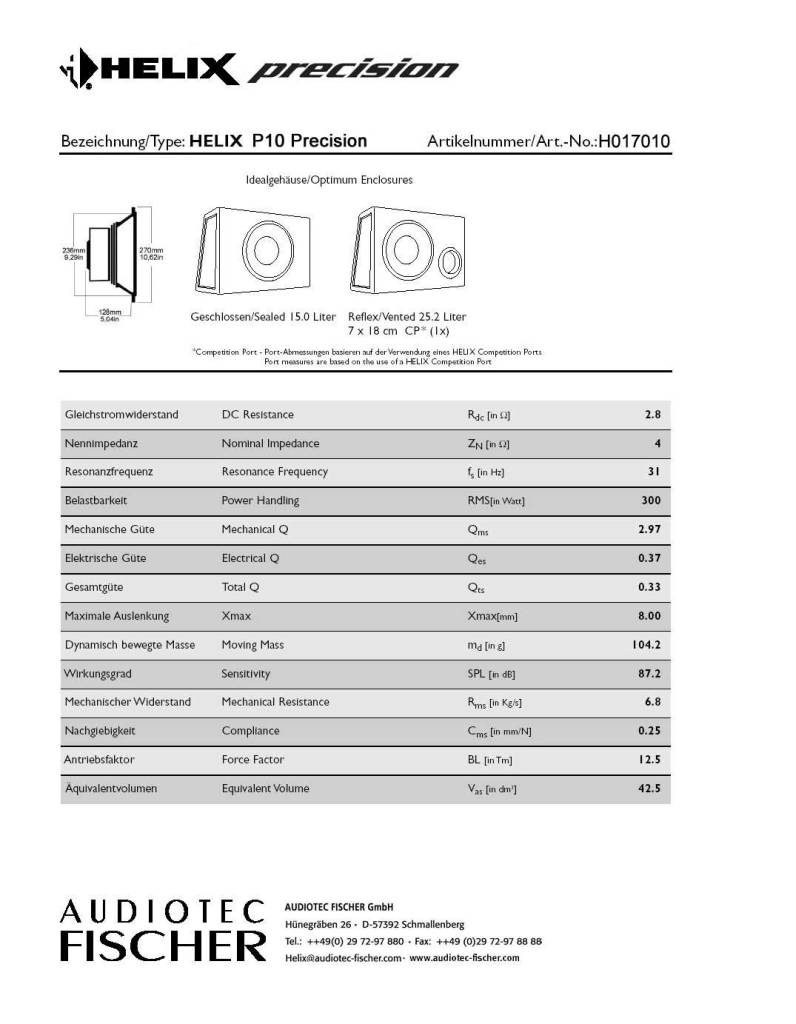

Manuale

20130121162533-precision-p10-man.pdf
