ONE 100.2 MB SQ Sound Quality 2-Way Plug & Play Speakers for Mercedes

Gladen
Your price:
€ 419,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
2-way separate kit
Woofer Size
100 mm
Tweeter Size
25 millimetri
MAX Power
120 Watt
Impedance
4 Ohm
Woofer Material
Cono in alluminio
Tweeter Material
Cupola in seta

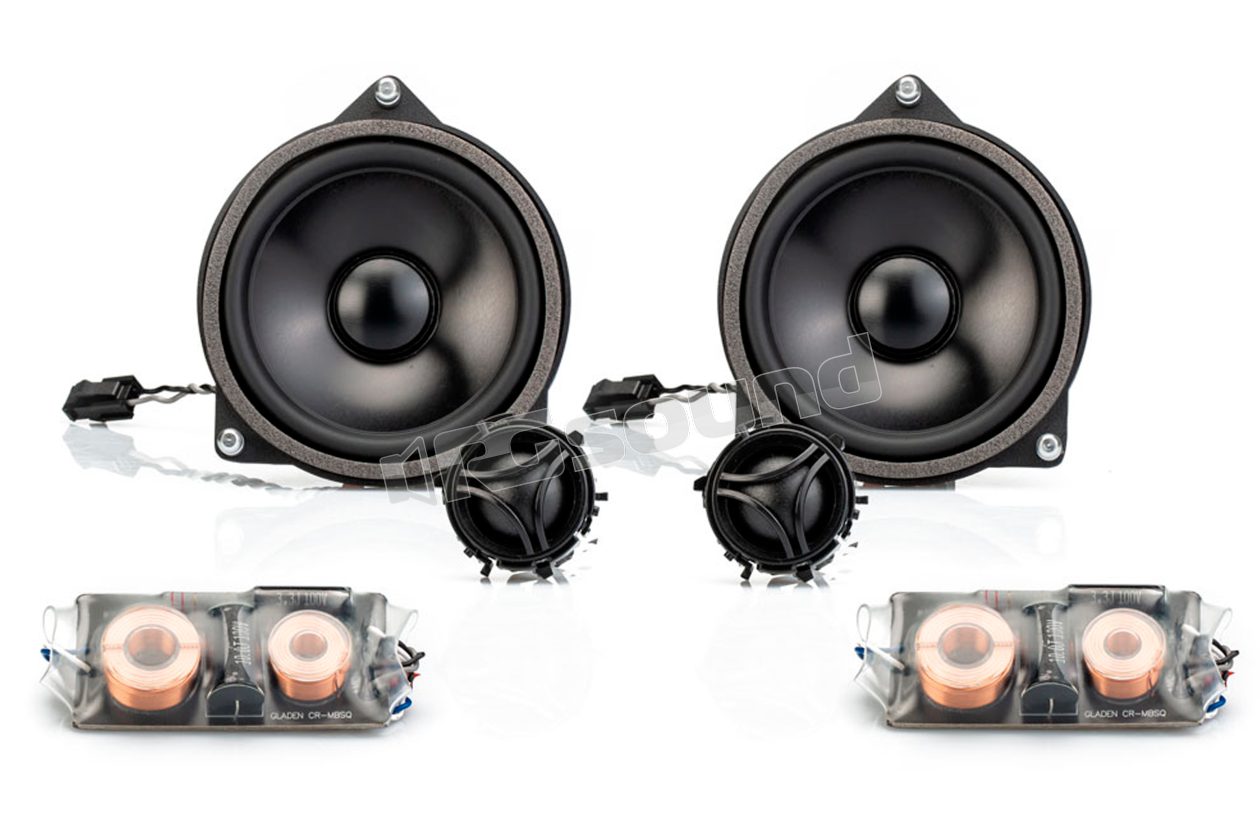

Gladen ONE 100.2MB-SQ 2-way Sound Quality speaker system Plug & Play Mercedes

Perfection is in the details. That's why Gladen has carefully selected and acoustically optimized all components of the Mercedes SQ speakers. To meet the high sound quality requirements of a speaker, an air-dried paper membrane is used in the woofer area, an aluminum membrane in the midrange area and a light silk membrane in the tweeter frame. The resulting perfection in music reproduction is breathtaking.

All speakers in the ONE-SQ series guarantee brilliant highs, impressive vocal reproduction and maximum precision in the fundamental range.

Semi-active 2-way system specifically for Mercedes C / E / GLC vehicles (W 205 and similar).

High-pass from 250 Hz, to be separated via amplifier or DSP.

Key features:

  • 25mm soft dome tweeter, 100mm midrange
  • Power 2x 120 Watt max
  • Impedance 4 Ohm
  • Special aluminum cone for extended frequency response up to the high-frequency range
  • Die-cast aluminum basket
  • High-pass crossover recommended from 250Hz@12dB, no less
  • 2-way High Quality crossover

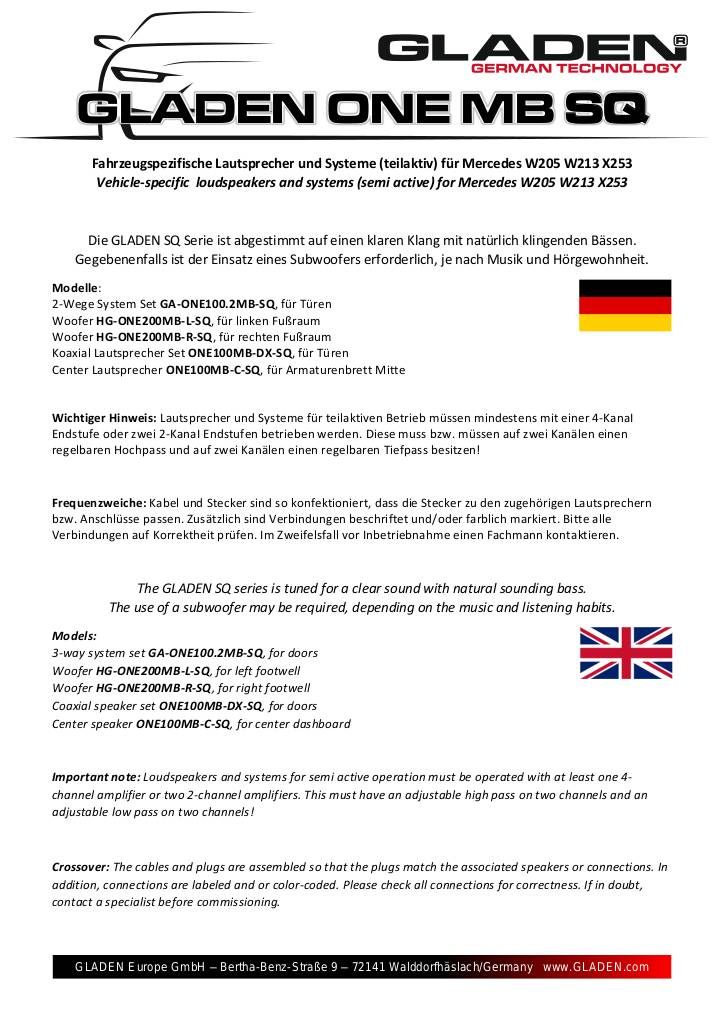

Manuale utente

n-20251218123234-one-mb-sq-manual-1.pdf

Gladen ONE 100.2 MB SQ technical specifications

  • Plug & Play without damaging vehicle wiring
  • Insulation with heat shrink tubing
  • Compact design
  • 100 mm midrange **
  • Neodymium magnet
  • Aluminum cone
  • Die-cast metal basket
  • Vehicle-specific mounting points
  • For semi-active operation in combination with GA-ONE200MB-SQ woofer

Tweeter:

  • 25 mm fabric tweeter
  • Neodymium magnet
  • Vehicle-specific mounting (click-lock)

Crossover:

  • Optimized crossover
  • High-quality components such as air-core coils
  • Tweeter PTC protection

** Recommended crossover frequencies for the midrange driver: high-pass 250 Hz - 500 Hz, 24 - 12 dB/Oct

€ 419,00 Price incl. VAT
