NDH18-4S

Ciare
Your price:
€ 380,80
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
460 mm
MAX Power
2.000 Watt
RMS Power
1.000 Watt
Sensitivity
96.5 dB
Impedance
8 Ohm
Installation Depth
195 mm
Voice Coil Diameter
100 mm

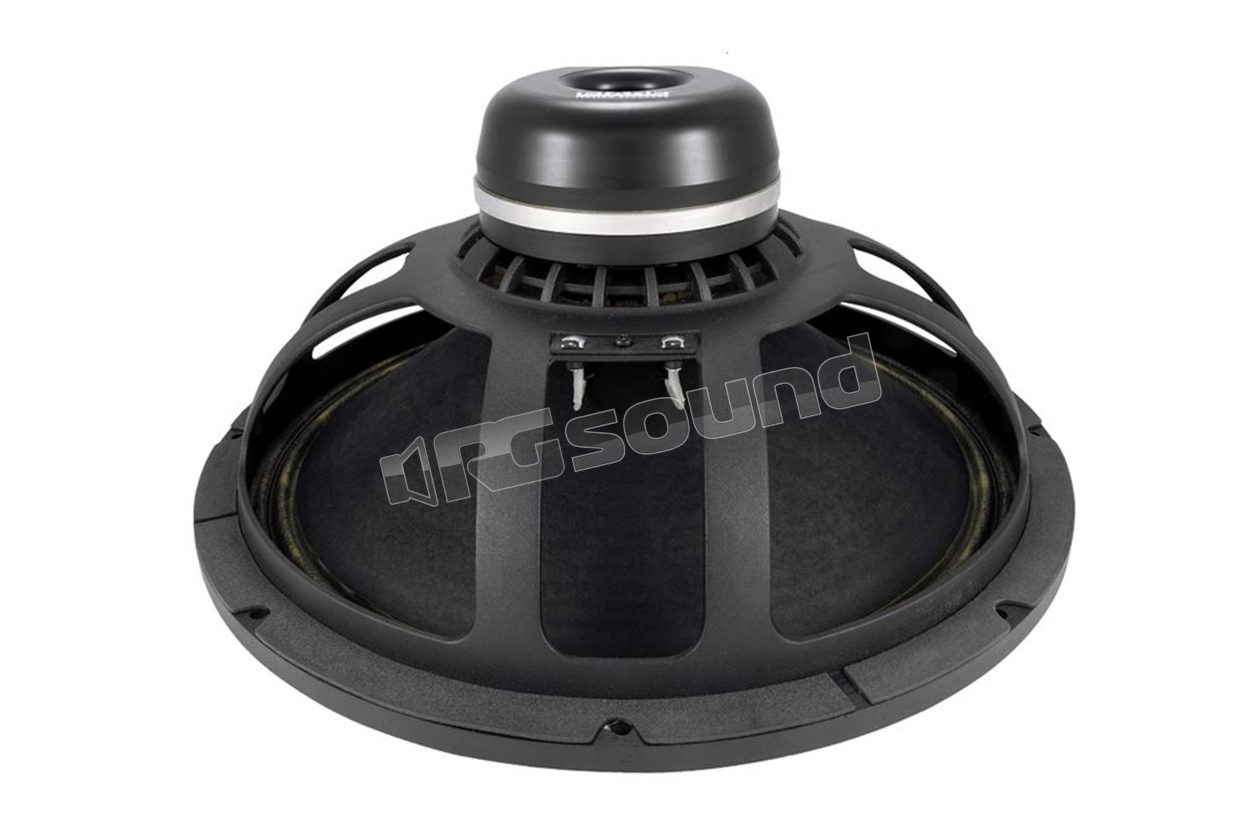

Ciare NDH18-4S subwoofer 45cm PRO series with Neodymium magnet, 8 Ohm impedance, 1,000 Watt RMS power

Maximum power (W) 2000
Nominal power AES (W) 1000
Nominal diameter (''/mm) 18" - 450 mm
Nominal impedance (Ohm) 8
Voice coil diameter (mm) 100
Sensitivity 1W / 1m (dB) 96.5
Die-cast Aluminum basket
Neodymium magnet
Treated cellulose cone
Dual Nomex surround
Dual Nomex spider
Faston connector

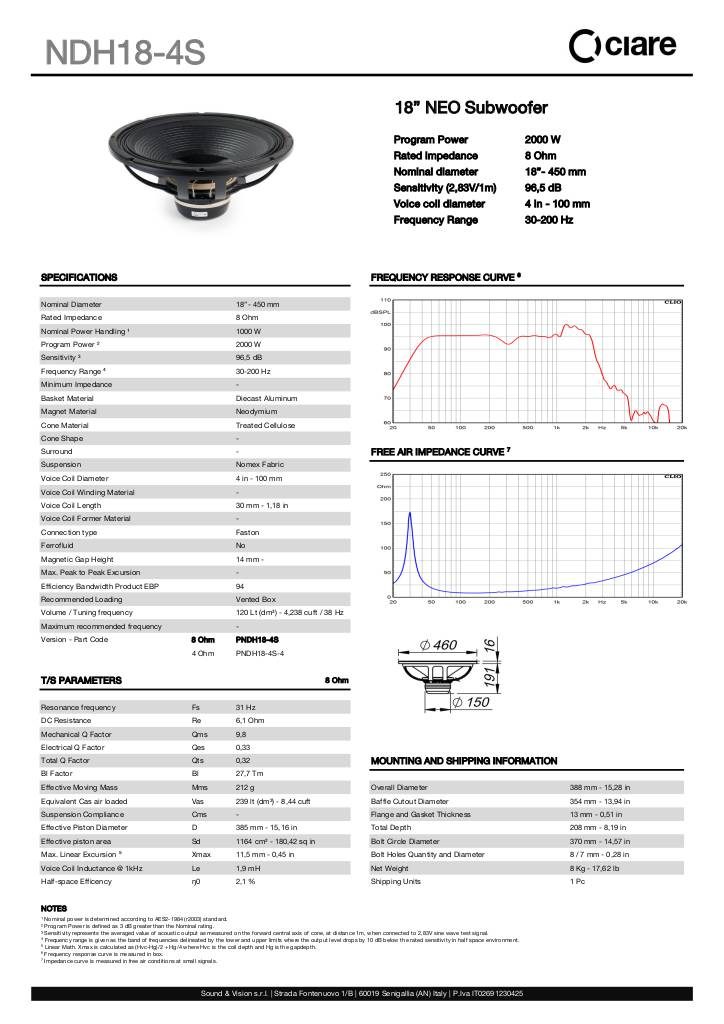

Scheda tecnica

n-20250411124959-ciare-ndh18-4s-en.pdf

Ciare NDH18-4S technical specifications

Size and weight
Overall diameter 388 mm
Total depth 195 mm
Flange thickness 13 mm
Mounted front baffle cutout diameter 354 mm
Number of mounting holes 8
Mounting hole diameter (mm) 7 mm
Bolt circle diameter 370 mm
Gross weight 8 Kg
Re 6.1 ohm
Fs 31 Hz
Qms 9.8
Qes 0.33
Qts 0.32
Mms 212 g
Cms
D 385 mm
Vas 239 l
BxL 27.7 Tm
Linear Mathematical Xmax 11.5 mm
n 2.1
Le (1kHz) 1.9 mH

NDH18-4S subwoofer applications
Bass Reflex loading recommended
Load volume 120 l
Tuning frequency 38 Hz
Frequency range 30 - 200 Hz
