NDH15-4S

Ciare
Your price:
€ 350,30
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
380 mm
MAX Power
2.000 Watt
RMS Power
1.000 Watt
Sensitivity
96 dB
Impedance
8 Ohm
Installation Depth
175 mm
Voice Coil Diameter
100 mm

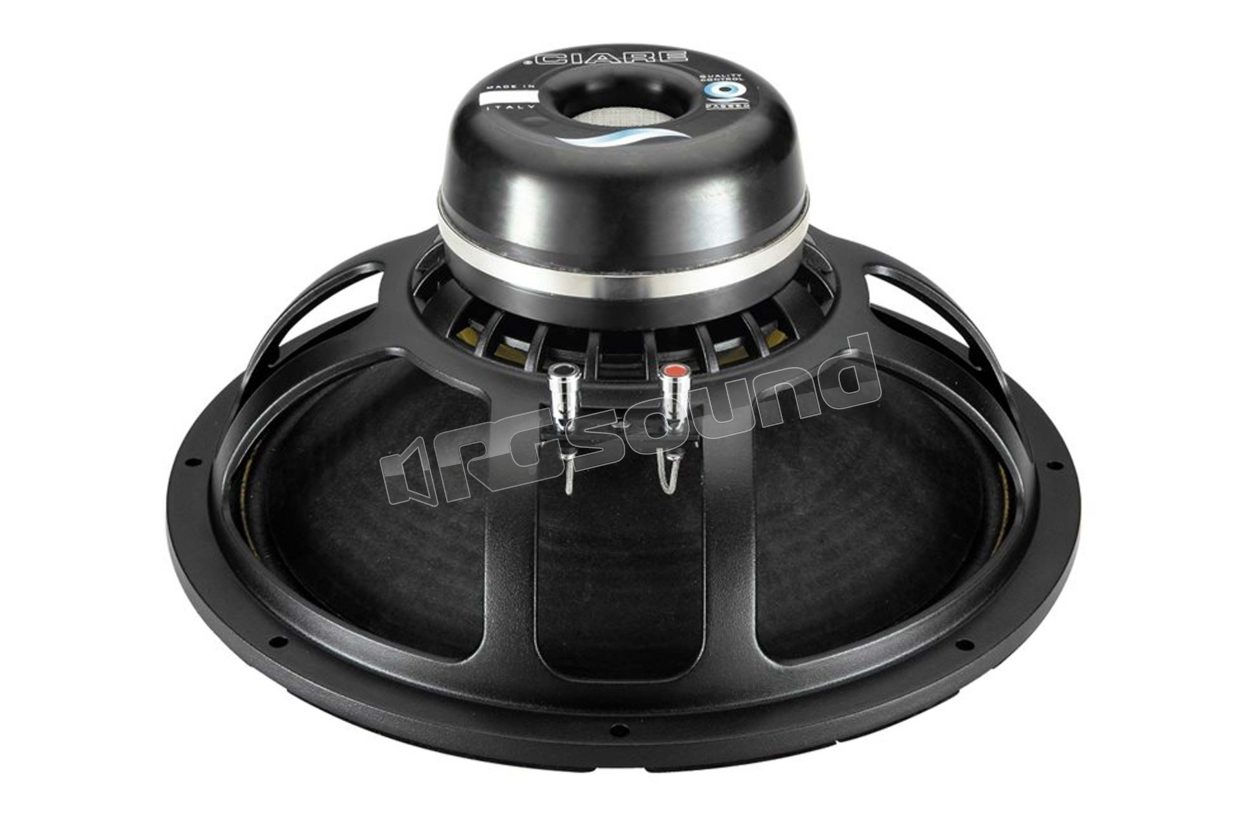

Ciare NDH15-4S 38 cm subwoofer PRO series with Neodymium magnet, 8 Ohm impedance and a rated power of 1,000 Watts

Sensitivity 96 dB 1W / 1m
100 mm (4 inch) sandwich coil
Aluminum Demodulating ring
Dual Spider technology
Neodymium magnet
Suitable for very low distortion subwoofer design

Maximum power (W):2000
AES rated power (W)1000
Nominal diameter (''/mm) 15"- 380 mm
Nominal impedance (Ohm) 8
Voice coil (mm) 100
Sensitivity 1W/1m (dB) 96

Ciare NDH15-4S technical specifications

Die-cast aluminum basket
Neodymium magnet
Treated cellulose membrane
Suspension type Canvas
Dual spider
Push Button connections

External diameter 388 mm
Depth under flange 175 mm
Flange thickness 14 mm
Panel hole 354 mm
Number of mounting holes 8
Mounting hole diameter (mm) 7 mm
Diameter of mounting hole position 370 mm
Weight with single packaging 8 Kg
Re 6.04 Ω
Fs 28 Hz
Qms 11.19
Qes 0.26
Qts 0.25
Mms 143 g
Cms 0.23 mm/N
D 32.52 cm
Vas 220 dm³
BxL 24.19 Tm
Linear Mathematical Xmax ± 11.5 mm
n 1.78 %
Le (1kHz) 1.07 mH

Recommended load Bass Reflex
Recommended reflex volume 115 dm³
Recommended tuning frequency 40 Hz
Frequency range of use 30 - 500 Hz
