NBASS12-30-16 30cm woofer for bass, power 400/800 Watt

LaVoce
Your price:
€ 159,40
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

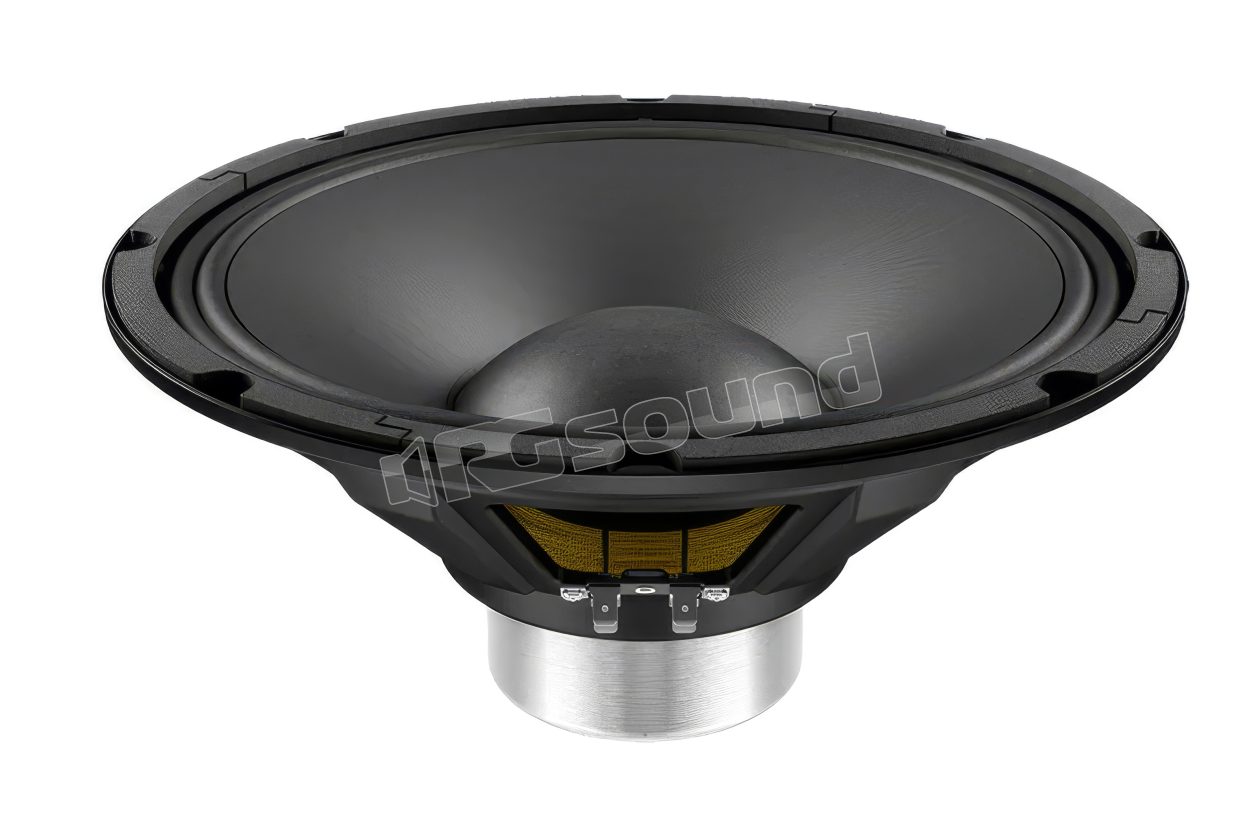

LaVoce NBASS12-30-16 woofer 30cm / 12" for bass

  • Neodymium magnet
  • Robust steel basket
  • 400 W AES 3" VC 96.5 dB 50-3000 Hz

400W of pure bass tone; the lightweight neo motor, the super-flat response shape up to 3kHz and the optimized resonance ensure that the partnership between the bass and mid-highs of the NBASS12-30 always makes an impact.

LaVoce NBASS12-30-16 technical specifications

  • Nominal diameter 300 mm (12 in)
  • Nominal impedance 16 ohm
  • Minimum impedance 14 ohm
  • Program power 800 W
  • Rated power AES 400 W
  • Sensitivity 97.5 dB
  • Frequency range 50 ÷ 3000 Hz
  • Voice coil diameter 75 mm (3 in)
  • Basket material STEEL
  • Magnet material NEODYMIUM
  • Magnet dimensions OD x ID x h 74 x 9 mm (2.91 x 0.35 in)
  • Coil material COPPER
  • Surround material FIBER GLASS
  • Cone material WATER RESISTANT TREATED PAPER
  • Surround material POLITONE
  • Xmax 7.3 mm (0.29 in)
  • Xmech 13.2 mm (0.52 in)
  • Gap height 10.5 mm (0.41 in)
  • Voice coil winding height 19.8 mm (0.78 in)
  • Driver displacement volume 2.1 l (0.074 ft³)
  • Recommended enclosure 47.5 l (1.677 ft³)
  • Recommended tuning 55 Hz
  • DC resistance (Re) 12.3 ohm
  • Diaphragm area (Sd) 531 cm² (82.305 in²)
  • Resonance frequency (Fs) 48 Hz
  • Moving mass (Mms) 63.2 g (2.229 oz)
  • Compliance (Cms) 0.175 mm/N
  • Force factor (BxL) 25.75 N/D
  • Mechanical Q factor (Qms) 7.98
  • Electrical Q factor (Qes) 0.35
  • Total Q factor (Qts) 0.34
  • Equivalent air volume (Vas) 69.83 l (2.466 ft³)
  • Voice coil inductance (Le) 1.97 mH
  • Reference efficiency (Eta 0) 2.09 %
  • Bandwidth efficiency product (EBP) 137 Hz
€ 159,40 Price incl. VAT
