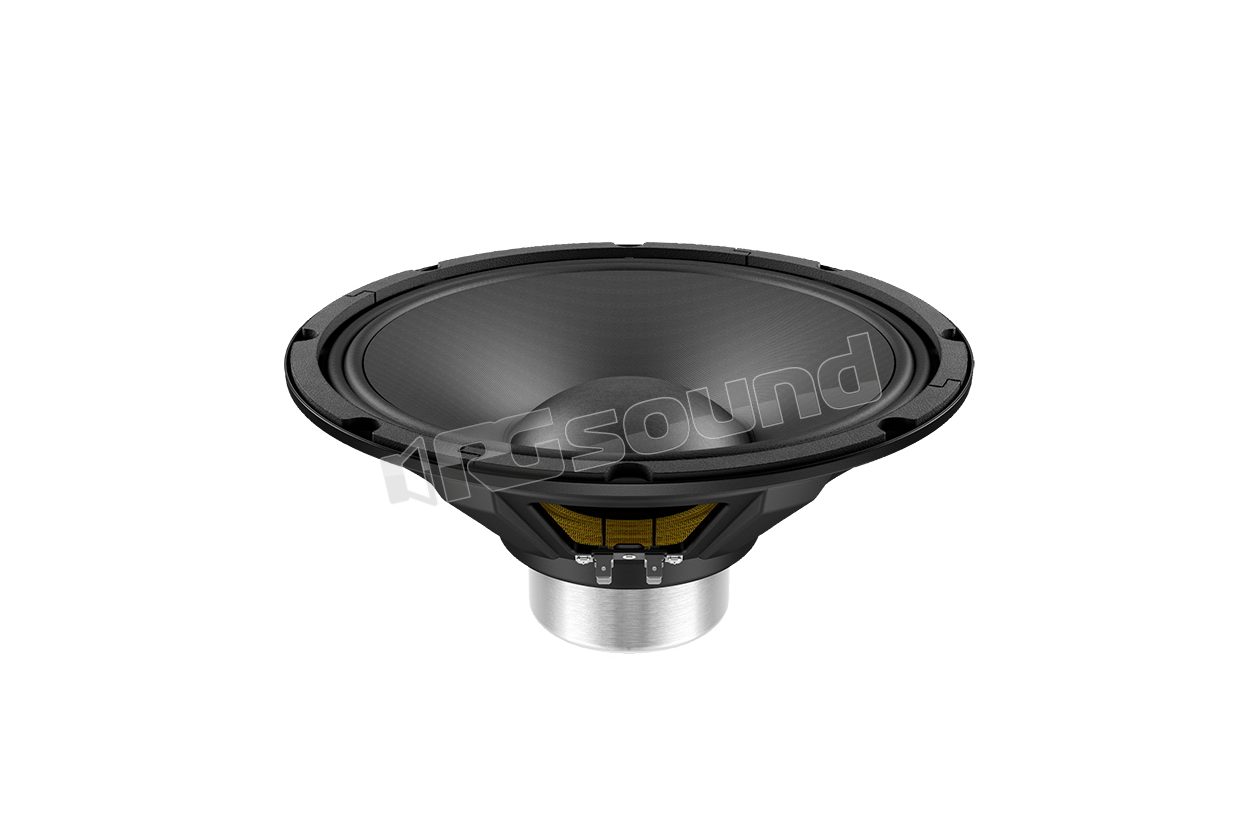

NBASS12-30 12"/300mm Bass Speaker

LaVoce
Your price:
€ 159,40
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

LaVoce NBASS12-30-8 Bass Speaker 12"/300mm

LaVoce code 70R70120

NBASS12-30-8 Features

  • Copper voice coil 3 inch
  • Sensitivity 98 db/spl
  • Program power handling 800 watt
  • Overall balanced and rich tone
  • Solid bass and well-defined midrange highs
  • Extremely lightweight

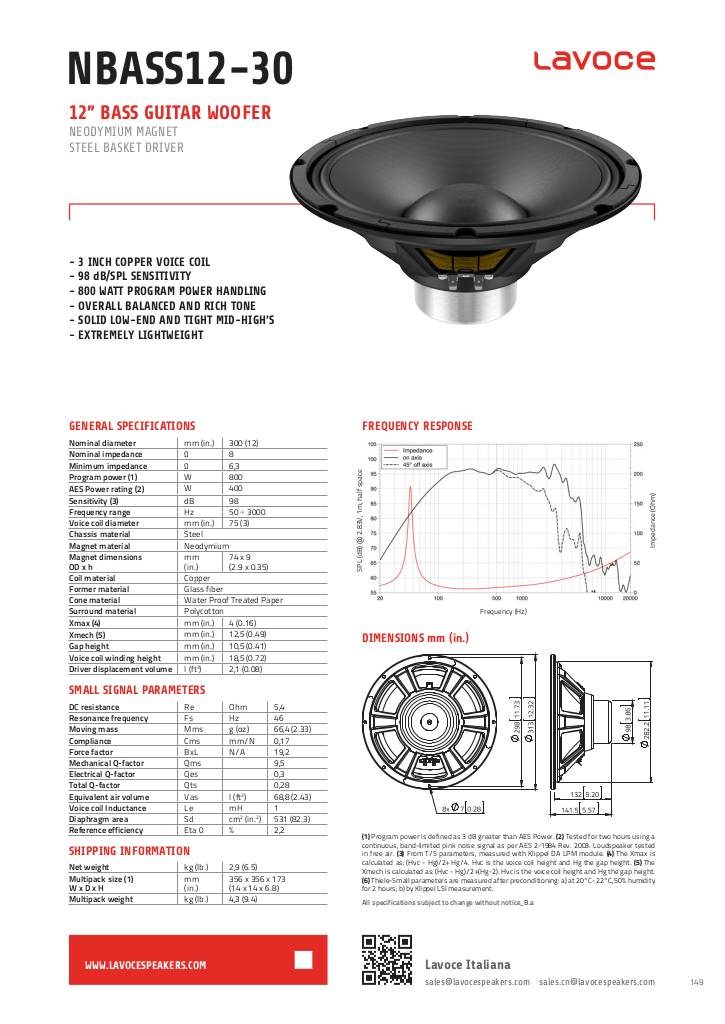

scheda tecnica

1549117514-nbass12-30-8-1.pdf

LaVoce NBASS12-30-8 Technical Specifications

  • Nominal diameter mm (in) 300 (12)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 6.3
  • Program power W 800
  • AES Power W 400
  • Sensitivity dB 98
  • Frequency range Hz 50 ÷ 3000
  • Voice coil diameter mm (in) 75 (3)
  • Frame material Steel
  • Magnet material Neodymium
  • Magnet dimensions OD x ID x h mm (in) 74 x 9 (2.9 x 0.35)
  • Coil material Copper
  • Structure material Fiberglass
  • Cone material Water-resistant treated paper
  • Surround material Polycotton
  • Xmax mm (in) 4 (0.16)
  • Xmech mm (in) 12.5 (0.49)
  • Gap height mm (in) 10.5 (0.41)
  • Voice coil winding height mm (in) 18.5 (0.72)
  • Driver displacement volume l (ft³) 2.1 (0.08)
  • DC resistance Ohm 5.4
  • Resonance frequency Hz 46
  • Moving mass g (oz) 66.4 (2.33)
  • Compliance mm/N 0.17
  • Force factor N/A 19.2
  • Mechanical Q factor 9.5
  • Electrical Q factor 0.3
  • Total Q factor 0.28
  • Equivalent air volume l (ft3) 68.8 (2.43)
  • Voice coil inductance mH 1
  • Diaphragm area cm2 (in.2) 531 (82.3)
  • Reference efficiency 2.2%
  • Net weight kg (lb) 2.9 (6.5)
  • Multipack dimensions L x W x H 356 x 356 x 173 (14 x 14 x 6.8)
  • Multipack weight kg (lb) 4.3 (9.4)
€ 159,40 Price incl. VAT
