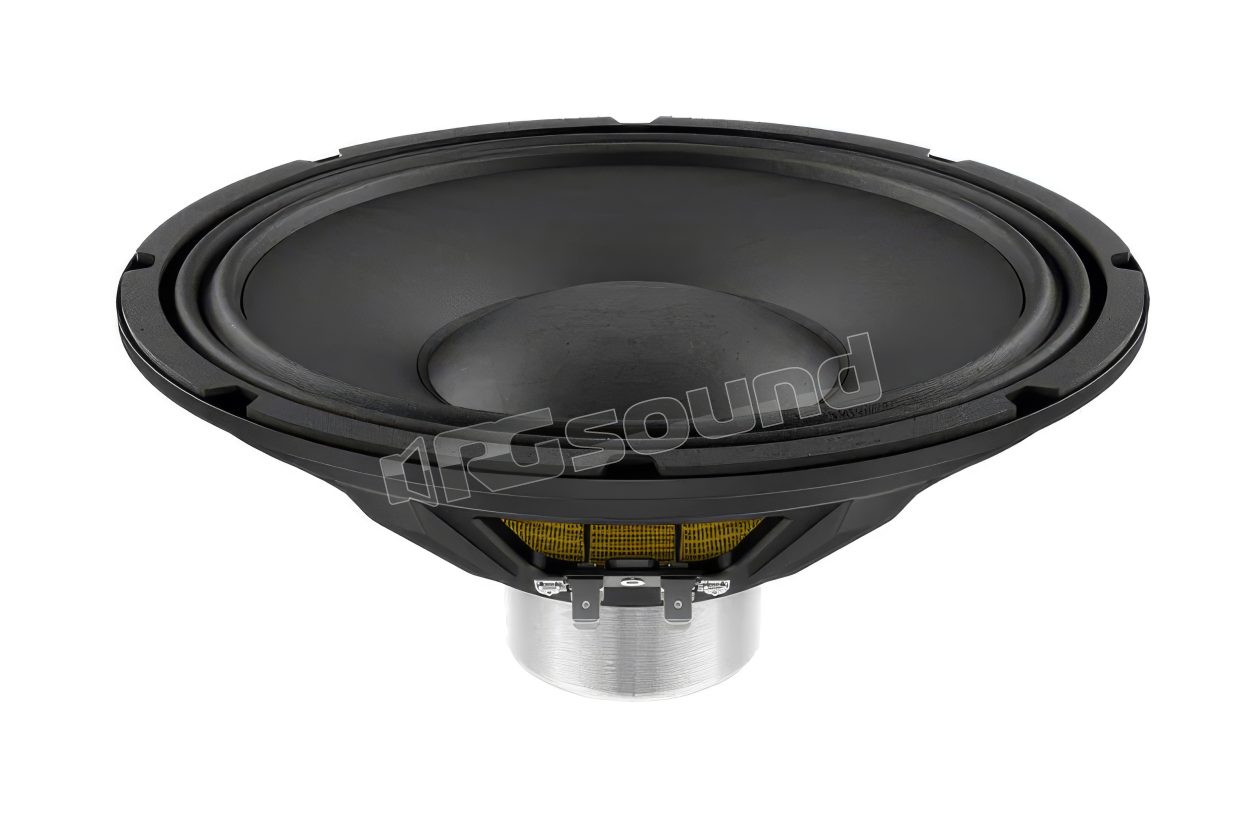

NBASS10-20-32 bass speaker, 25cm, 32 Ohm

LaVoce
Your price:
€ 91,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

LaVoce NBASS10-20-32 25cm bass speaker, neodymium magnet and steel basket

NBASS10-20 is a lightweight neodymium 10 inch design made specifically for electric bass cabinets or combos; the robust bass extension and fine midrange adjustment tuning deliver clear definition through any mix.

LaVoce NBASS10-20-32 technical specifications

  • Nominal diameter 250 mm (10 in)
  • Nominal impedance 32 ohm
  • Minimum impedance 27.7 ohm
  • Program power 300 W
  • AES nominal power 150 W
  • Sensitivity 94 dB
  • Frequency range 50 ÷ 3000 Hz
  • Voice coil diameter 50 mm (2 in)
  • Basket material STEEL
  • Magnet material NEODYMIUM
  • Magnet dimensions OD x ID x h 51 x 9 mm (2.01 x 0.35 in)
  • Coil material COPPER
  • Preceding material FIBERGLASS
  • Cone material WATER RESISTANT TREATED PAPER
  • Surround material POLITONE
  • Xmax 6.4 mm (0.25 in)
  • Xmech 10.5 mm (0.41 in)
  • Gap height 8.2 mm (0.32 in)
  • Voice coil winding height 16.8 mm (0.66 in)
  • Driver displacement volume 0.9 l (0.032 ft³)
  • Recommended enclosure 29.5 l (1.042 ft³)
  • Recommended tuning 60 Hz
  • DC resistance (Re) 25.9 ohm
  • Diaphragm area (Sd) 353 cm² (54.715 in²)
  • Resonance frequency (Fs) 57 Hz
  • Moving mass (Mms) 30.9 g (1.09 oz)
  • Compliance (Cms) 0.252 mm/N
  • Force factor (BxL) 20.45 N/D
  • Mechanical Q factor (Qms) 5.4
  • Electrical Q factor (Qes) 0.69
  • Total Q factor (Qts) 0.61
  • Equivalent air volume (Vas) 44.44 l (1.569 ft³)
  • Voice coil inductance (Le) 1.95 mH
  • Reference efficiency (Eta 0) 1.16 %
  • Bandwidth efficiency product (EBP) 83 Hz
€ 91,00 Price incl. VAT
