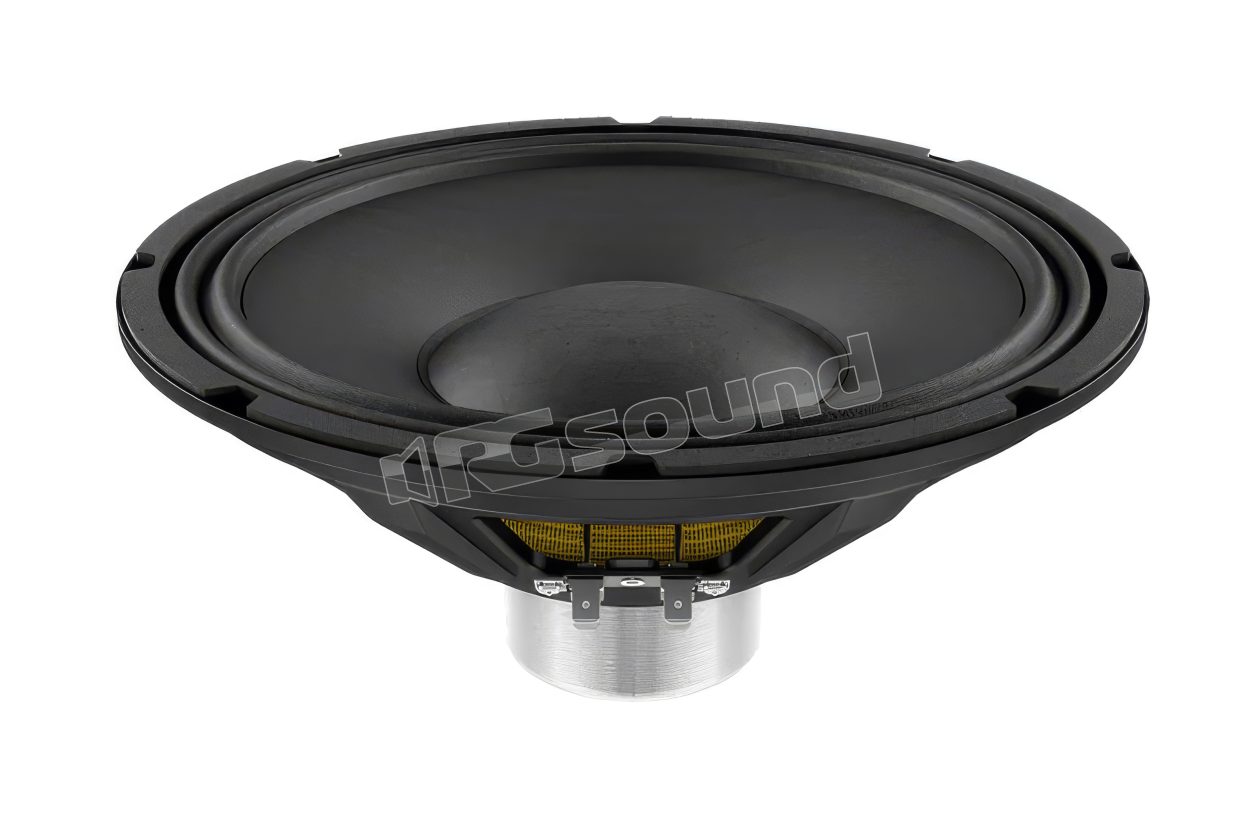

NBASS10-20-16 bass speaker, 25cm, 16 Ohm

LaVoce
Your price:
€ 91,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

LaVoce NBASS10-20-16 25cm bass speaker, neodymium magnet and steel basket

NBASS10-20 is a lightweight neodymium 10-inch design specifically made for electric bass cabinets or combo; the robust bass extension and the fine midrange adjustment provide clear definition through any mix.

LaVoce NBASS10-20-16 technical specifications

  • Nominal diameter 250 mm (10 in)
  • Nominal impedance 16 ohm
  • Minimum impedance 14.5 ohm
  • Program power 300 W
  • Rated power AES 150 W
  • Sensitivity 93 dB
  • Frequency range 50 ÷ 3000 Hz
  • Voice coil diameter 51 mm (2 in)
  • Basket material STEEL
  • Magnet material NEODYMIUM
  • Magnet dimensions OD x ID x h 51 x 9 mm (2.01 x 0.35 in)
  • Coil material COPPER
  • Surround material GLASS FIBER
  • Cone material WATER RESISTANT TREATED PAPER
  • Surround material POLYSTONE
  • Xmax 6.3 mm (0.25 in)
  • Xmech 10.4 mm (0.41 in)
  • Air gap height 8.2 mm (0.32 in)
  • Voice coil winding height 16.6 mm (0.65 in)
  • Driver displacement volume 0.9 l (0.032 ft³)
  • Recommended enclosure 29.5 l (1.042 ft³)
  • Recommended tuning 60 Hz
  • DC resistance (Re) 13.3 ohm
  • Diaphragm area (Sd) 353 cm² (54.715 in²)
  • Resonance frequency (Fs) 52 Hz
  • Moving mass (Mms) 37.6 g (1.326 oz)
  • Compliance (Cms) 0.248 mm/N
  • Force factor (BxL) 16.9 N/D
  • Mechanical Q factor (Qms) 7.15
  • Electrical Q factor (Qes) 0.57
  • Total Q factor (Qts) 0.53
  • Equivalent air volume (Vas) 43.73 l (1.544 ft³)
  • Voice coil inductance (Le) 1.31 mH
  • Reference efficiency (Eta 0) 1.04 %
  • Bandwidth efficiency product (EBP) 91 Hz
€ 91,00 Price incl. VAT
