NBASS10-20 10"/250mm Bass Speaker

LaVoce
Your price:
€ 90,90
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to

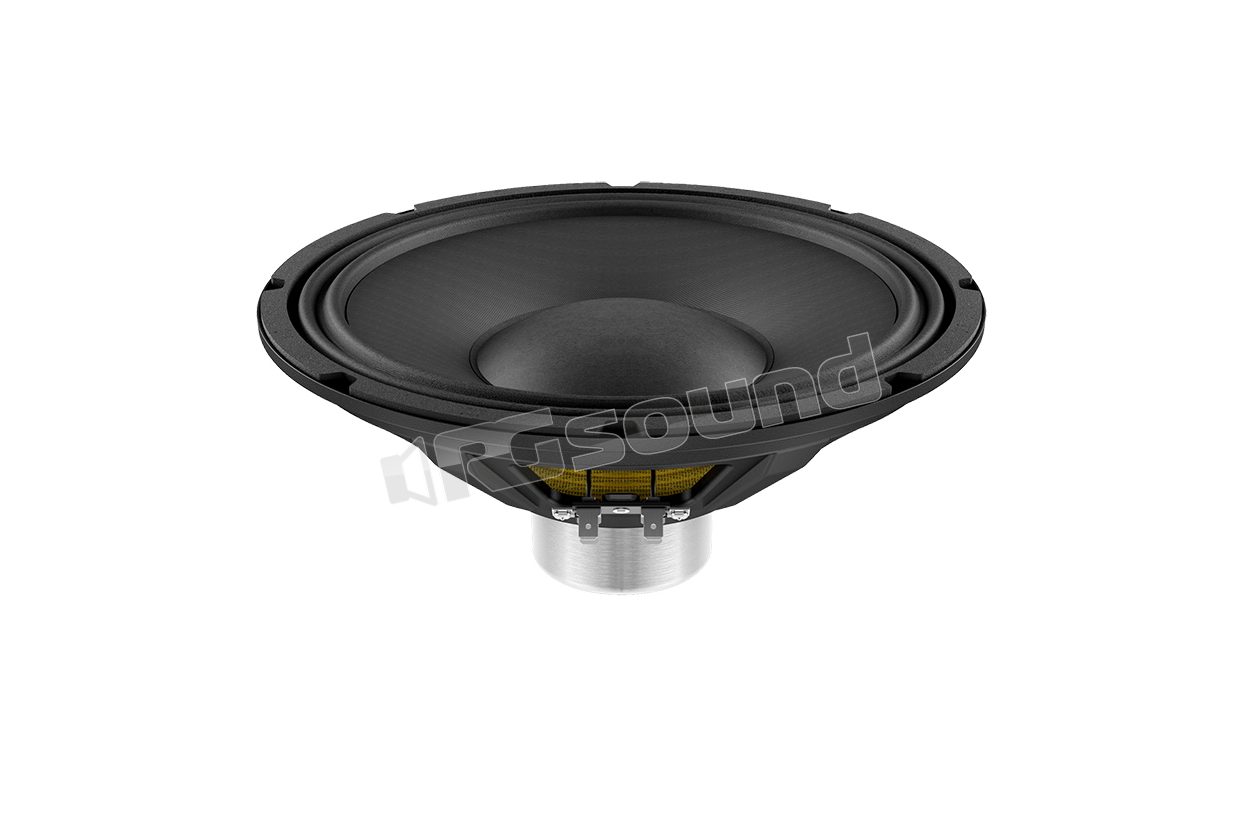

LaVoce NBASS10-20-8 Bass Speaker 10"/250mm

LaVoce code 70R70100

NBASS10-20-8 Features

  • 2 inch copper voice coil
  • Sensitivity 96 db/spl
  • Program power handling 300 watt
  • Overall balanced and rich tone
  • Solid bass and well-defined midrange highs
  • Extremely lightweight

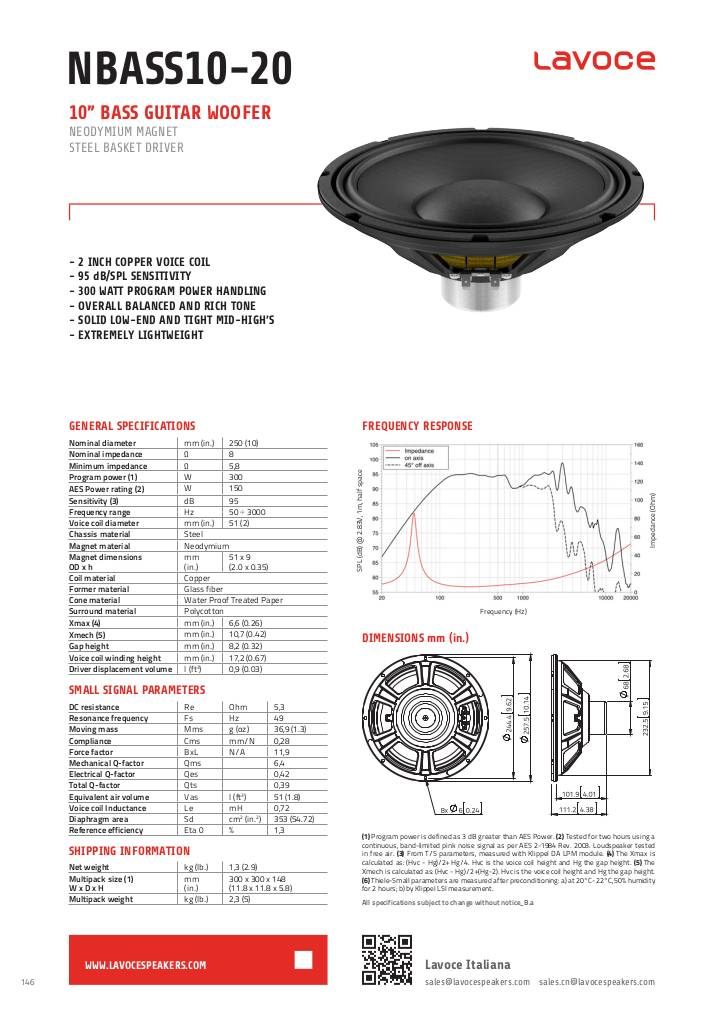

scheda tecnica

1549117494-nbass10-20-8-1.pdf

LaVoce NBASS10-20-8 Technical Specifications

  • Nominal diameter mm (in) 250 (10)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 5.8
  • Program power W 300
  • AES power W 150
  • Sensitivity dB 95
  • Frequency range Hz 50 ÷ 3000
  • Voice coil diameter mm (in) 51 (2)
  • Frame material Steel
  • Magnet material Neodymium
  • Magnet dimensions OD x ID x h mm (in) 51 x 9 (2.0 x 0.35)
  • Coil material Copper
  • Surround material Fiberglass
  • Cone material Water-treated paper
  • Surround material Polycotton
  • Xmax mm (in) 6.6 (0.26)
  • Xmech mm (in) 10.7 (0.42)
  • Gap height mm (in) 8.2 (0.32)
  • Voice coil winding height mm (in) 17.2 (0.67)
  • Driver displacement volume l (ft³) 0.9 (0.03)
  • DC resistance Ohm 5.3
  • Resonance frequency Hz 49
  • Moving mass g (oz) 36.9 (1.3)
  • Compliance mm/N 0.28
  • Force factor N/A 11.9
  • Mechanical Q factor 6.4
  • Electrical Q factor 0.42
  • Total Q factor 0.39
  • Equivalent air volume l (ft3) 51 (1.8)
  • Voice coil inductance mH 0.72
  • Diaphragm area cm2 (in.2) 353 (54.72)
  • Reference efficiency 1.3%
  • Net weight kg (lb) 1.3 (2.9)
  • Multipack dimensions L x W x H 300 x 300 x 148 (11.8 x 11.8 x 5.8)
  • Multipack weight kg (lb) 2.3 (5)
€ 90,90 Price incl. VAT
