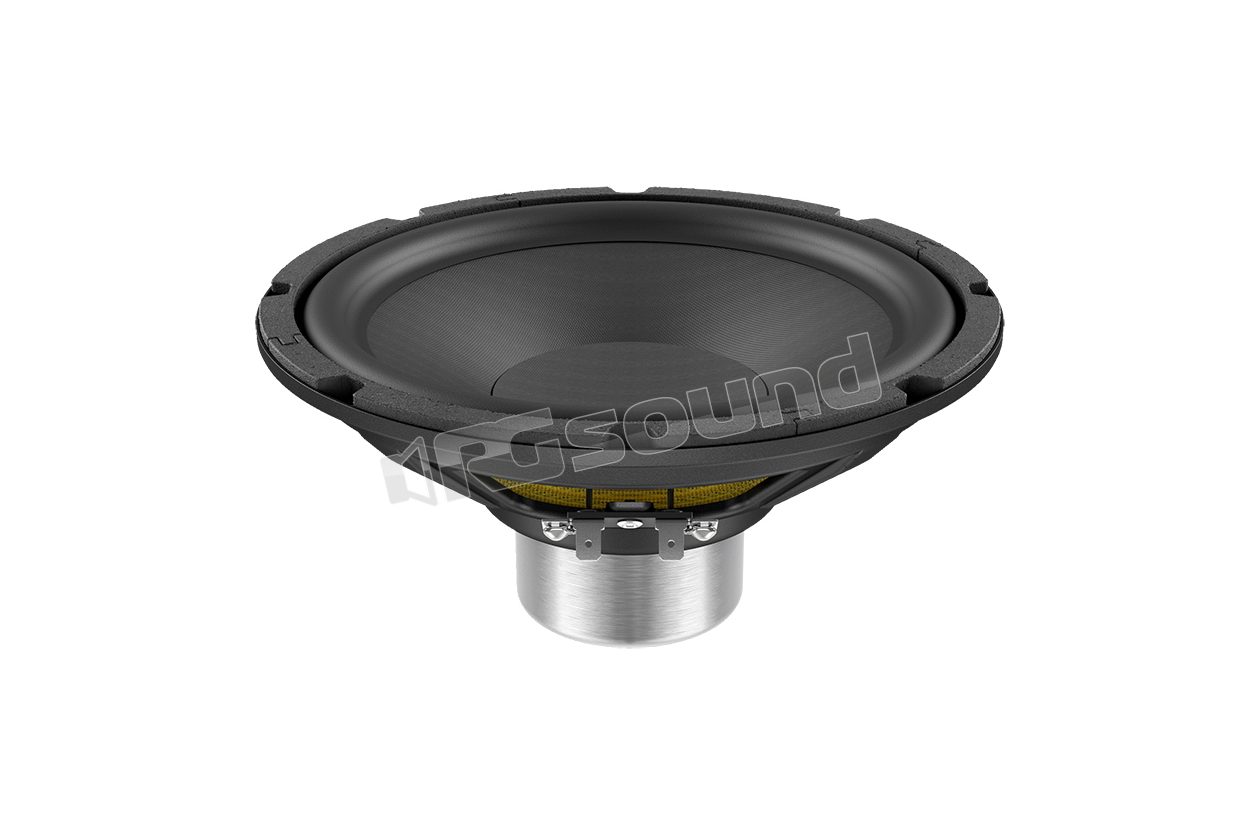

NBASS08-20 8"/200mm Bass Speaker

LaVoce
Your price:
€ 85,50
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to

LaVoce NBASS08-20-8 8"/200mm Bass Speaker

LaVoce code 70R70080


NBASS08-20-8 Features

  • 2 inch copper voice coil
  • Sensitivity 92 db/spl
  • Program power handling 400 watt
  • Rubber surround material
  • Balanced and rich overall tone
  • Solid bass and well-defined upper midrange
  • Extremely light

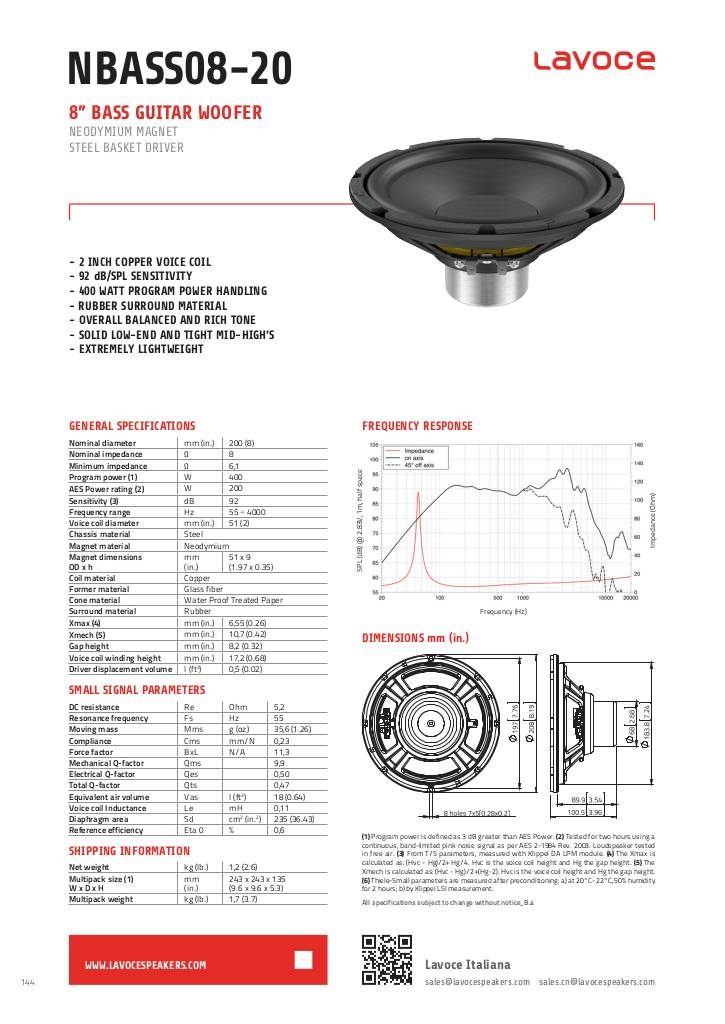

scheda tecnica

1549117137-nbass08-20-8-1.pdf

LaVoce NBASS08-20-8 Technical Specifications

  • Nominal diameter mm (in) 200 (8)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 6.1
  • Program power W 400
  • AES power W 200
  • Sensitivity dB 92
  • Frequency range Hz 55 ÷ 3000
  • Voice coil diameter mm (in) 51 (2)
  • Frame material Steel
  • Magnet material Neodymium
  • Magnet dimensions OD x ID x h mm (in) 51 x 9 (1.97 x 0.35)
  • Voice coil material Copper
  • Structure material Fiberglass
  • Cone material Waterproof treated paper
  • Surround material Rubber
  • Xmax mm (in) 6.55 (0.26)
  • Xmech mm (in) 10.7 (0.42)
  • Gap height mm (in) 8.2 (0.32)
  • Voice coil winding height mm (in) 17.2 (0.68)
  • Driver displacement volume l (ft³) 0.5 (0.02)
  • DC resistance Ohm 5.2
  • Resonance frequency Hz 55
  • Moving mass g (oz) 35.6 (1.26)
  • Compliance mm/N 0.23
  • Force factor N/A 11.3
  • Mechanical Q factor 9.9
  • Electrical Q factor 0.50
  • Total Q factor 0.47
  • Equivalent air volume l (ft3) 18 (0.64)
  • Voice coil inductance mH 0.11
  • Diaphragm area cm2 (in.2) 235 (36.43)
  • Reference efficiency 0.6%
  • Net weight kg (lb) 1.2 (2.6)
  • Multipack dimensions L x W x H 243 x 243 x 135 (9.6 x 9.6 x 5.3)
  • Multipack weight kg (lb) 1.7 (3.7)
€ 85,50 Price incl. VAT
