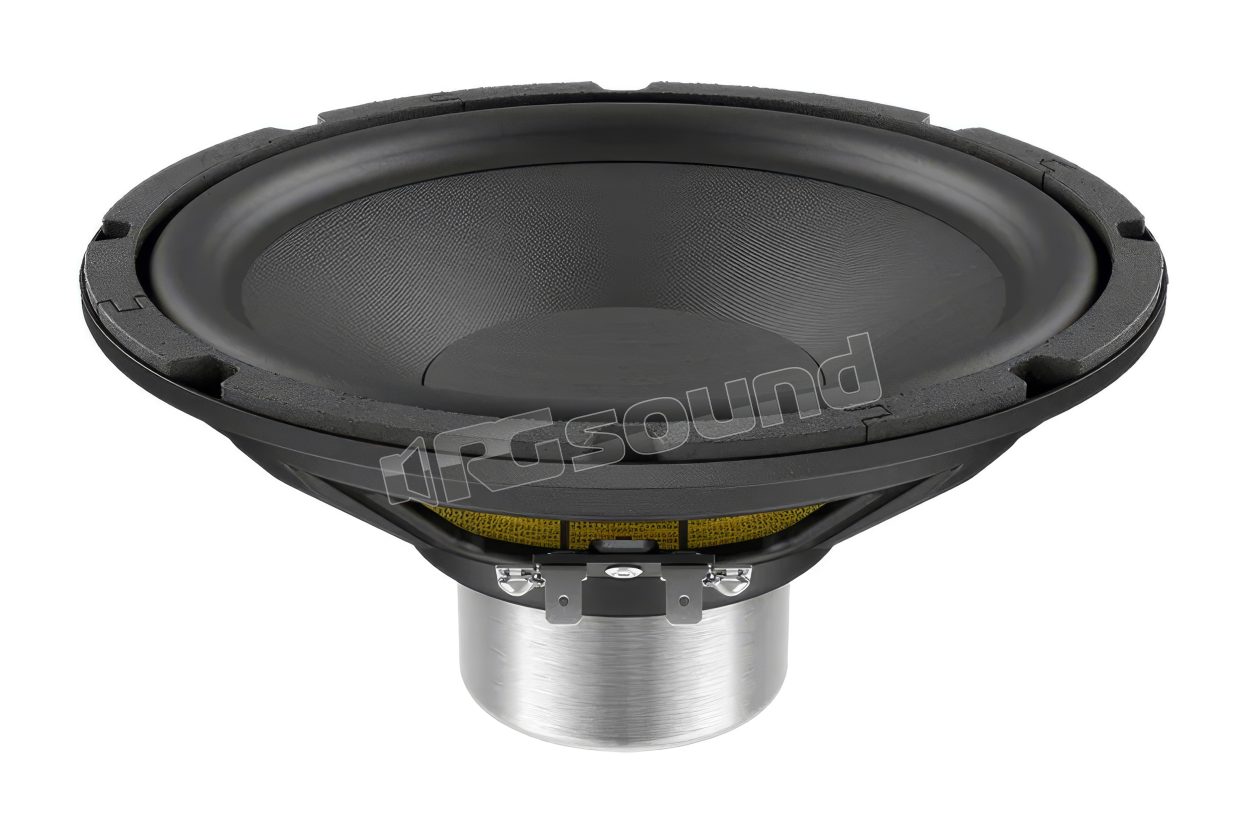

NBASS08-20-32 bass speaker, 20cm, 32 Ohm

LaVoce
Your price:
€ 85,60
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

LaVoce NBASS08-20-32 woofer 20cm (8") with neodymium magnet with steel basket, 200 W AES 2" VC 90 dB 55-4000 Hz

The natural response, powerful bass and intense midrange, characterized by an optimized rubber surround and a lightweight and reactive neo motor, make the NBASS08-20 the perfect tonal solution for 8 inches.

Scheda tecnica

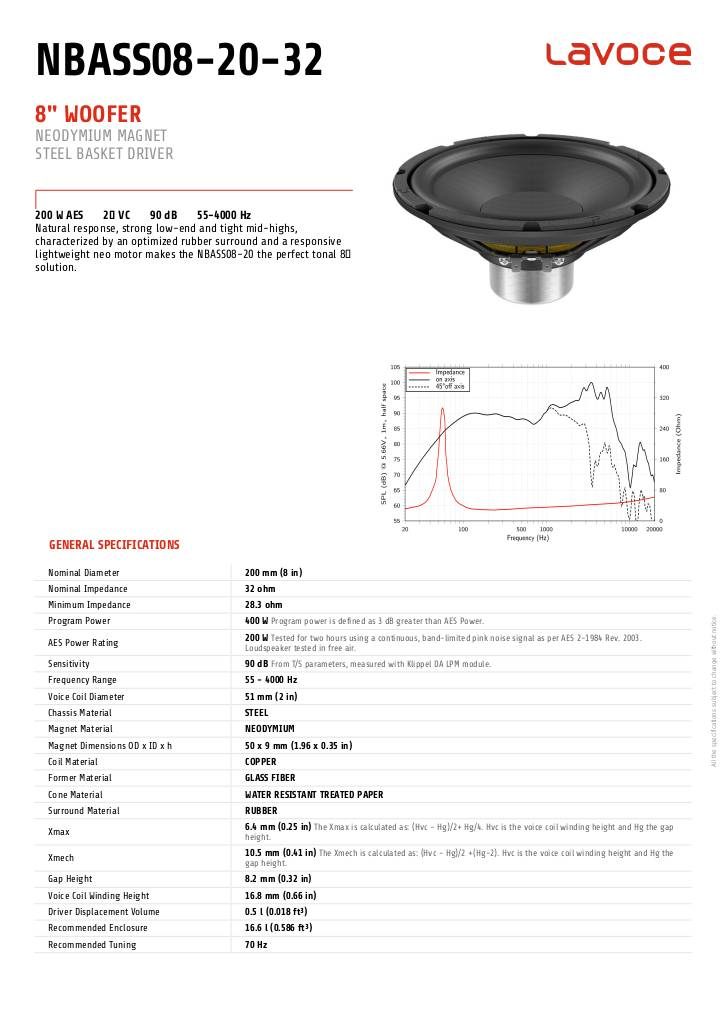

n-20260827105320-lavoce-nbass08-20-32.pdf

LaVoce NBASS08-20-32 technical specifications

  • Nominal diameter 200 mm (8 in)
  • Nominal impedance 32 ohm
  • Minimum impedance 28.3 ohm
  • Program power 400 W
  • Nominal AES power 200 W
  • Sensitivity 90 dB
  • Frequency range 55 - 4000 Hz
  • Voice coil diameter 51 mm (2 in)
  • Basket material STEEL
  • Magnet material NEODYMIUM
  • Magnet dimensions OD x ID x h 50 x 9 mm (1.96 x 0.35 in)
  • Coil material COPPER
  • Surround material RUBBER
  • Cone material WATER RESISTANT TREATED PAPER
  • Xmax 6.4 mm (0.25 in)
  • Xmech 10.5 mm (0.41 in)
  • Gap height 8.2 mm (0.32 in)
  • Voice coil winding height 16.8 mm (0.66 in)
  • Driver displacement volume 0.5 l (0.018 ft³)
  • Recommended enclosure 16.6 l (0.586 ft³)
  • Recommended tuning 70 Hz
  • DC resistance (Re) 25.8 ohm
  • Diaphragm area (Sd) 235.1 cm² (36.441 in²)
  • Resonance frequency (Fs) 57 Hz
  • Moving mass (Mms) 29.4 g (1.037 oz)
  • Compliance (Cms) 0.265 mm/N
  • Force factor (BxL) 19.25 N/D
  • Mechanical Q factor (Qms) 7.93
  • Electrical Q factor (Qes) 0.73
  • Total Q factor (Qts) 0.67
  • Equivalent air volume (Vas) 20.73 l (0.732 ft³)
  • Voice coil inductance (Le) 0.27 mH
  • Reference efficiency (Eta 0) 0.5 %
  • Bandwidth efficiency product (EBP) 78.08 Hz
